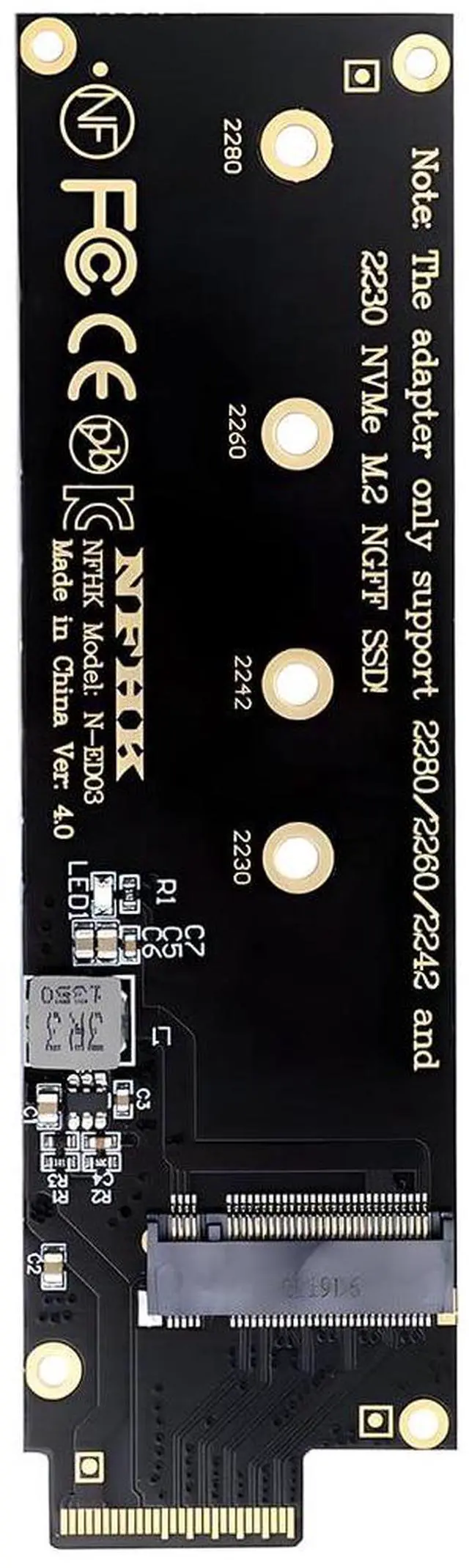

PCI-Express Ruler 1U GEN-Z EDSFF Short E1.S Host to NVMe M-Key M.2 4X SSD Carrier Adapter

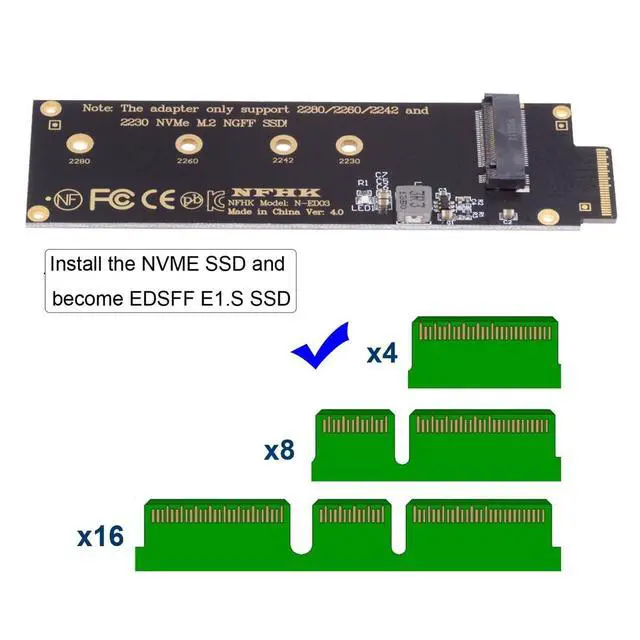

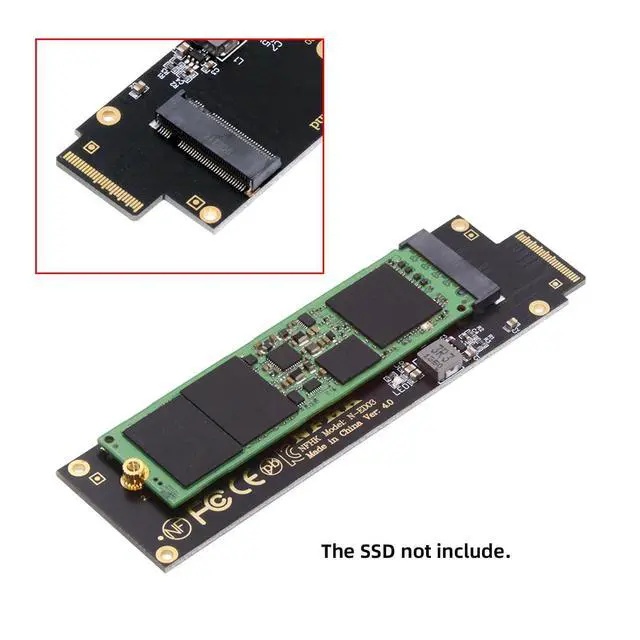

- This converter enables the connection of a M.2 SSD in 2280 and 2260/2242/2230 format
- The converter can be installed into your system internally through the EDSFF E1.S interface.

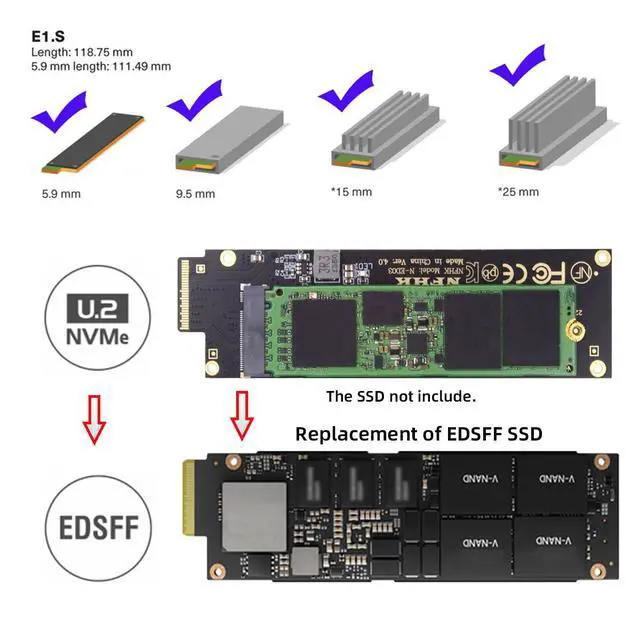

- Thus an M.2 SSD becomes an EDSFF E1.S SSD, which can be used in IoT, data center and server area
- Supports M.2 modules with key M or key B+M based on PCIe

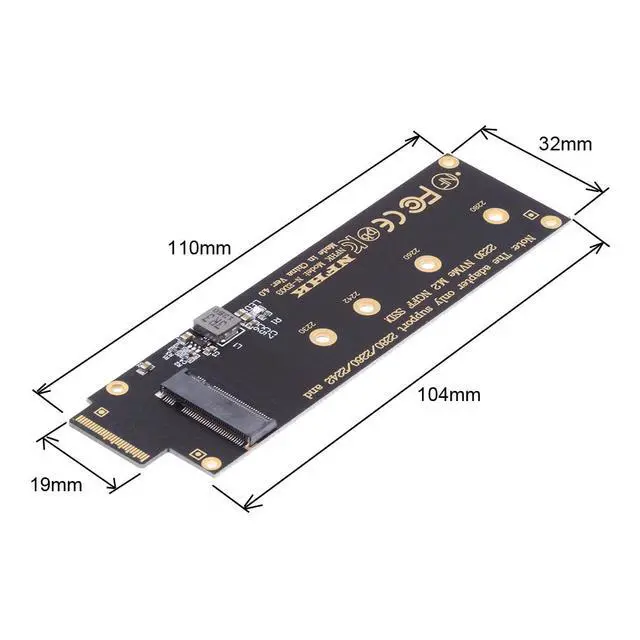

- Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
- Connectors: 1 x EDSFF E1.S male to 1 x 67 pin M.2 key M slot
- Interface: PCIe x4 Rev. 4.0

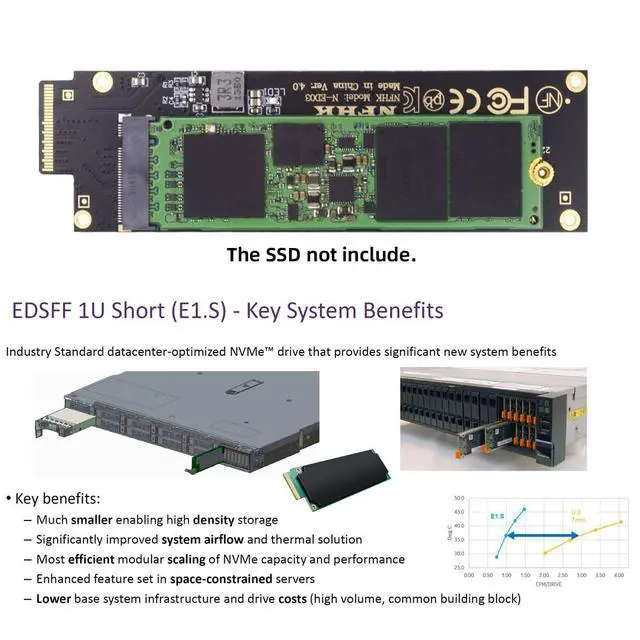

- EDSFF is a New SSD Form Factor for Next Gen Servers and Storage
- The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.
- E1 form factor delivers better thermal dissipation versus M.2 form factors
- E1 SSDs utilize the robust EDSFF connector, allowing for high data rates
- E1 SSDs enable higher density storage and better thermal management in 1U chassis
- E1 form factor allows for higher power delivery versus M.2.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
This converter enables the connection of a M. 2 SSD in 2280 and 2260/2242/2230 format
The converter can be installed into your system internally through the EDSFF E1. S interface.
Thus an M. 2 SSD becomes an EDSFF E1. S SSD, which can be used in IoT, data center and server area
Supports M. 2 modules with key M or key B+M based on PCIe
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
Connectors: 1 x EDSFF E1. S male to 1 x 67 pin M. 2 key M slot
Interface: PCIe x4 Rev. 4.0
EDSFF is a New SSD Form Factor for Next Gen Servers and Storage
The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.
E1 form factor delivers better thermal dissipation versus M. 2 form factors
E1 SSDs utilize the robust EDSFF connector, allowing for high data rates
E1 SSDs enable higher density storage and better thermal management in 1U chassis
E1 form factor allows for higher power delivery versus M. 2.
The converter can be installed into your system internally through the EDSFF E1. S interface.
Thus an M. 2 SSD becomes an EDSFF E1. S SSD, which can be used in IoT, data center and server area
Supports M. 2 modules with key M or key B+M based on PCIe
Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
Connectors: 1 x EDSFF E1. S male to 1 x 67 pin M. 2 key M slot
Interface: PCIe x4 Rev. 4.0
EDSFF is a New SSD Form Factor for Next Gen Servers and Storage
The benefits include, but arent limited to, better signal integrity and the ability to deliver more power to an SSD for superior performance.
E1 form factor delivers better thermal dissipation versus M. 2 form factors
E1 SSDs utilize the robust EDSFF connector, allowing for high data rates
E1 SSDs enable higher density storage and better thermal management in 1U chassis
E1 form factor allows for higher power delivery versus M. 2.
