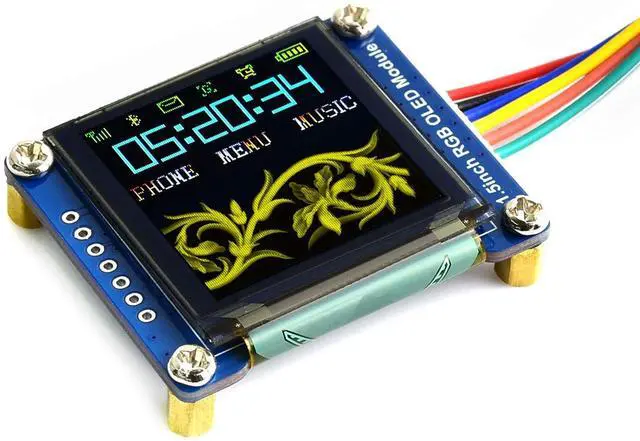

1.5inch RGB OLED Display Module, 128x128 Pixels 16-bit (65K Colors)
- This is a general 1.5inch RGB OLED display module, 128x128 pixels, 16-bit high color (65K colors),clearly displays colorful images, with embedded controller, communicating via SPI interface.
- Driver: SSD1351. Display color: RGB, 65K colors
- Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
- Dimension: 44.5 x 37 (mm),Operating voltage: 3.3V / 5V,Viewing angle: >160°,Interface: 4-wire SPI, 3-wire SPI
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

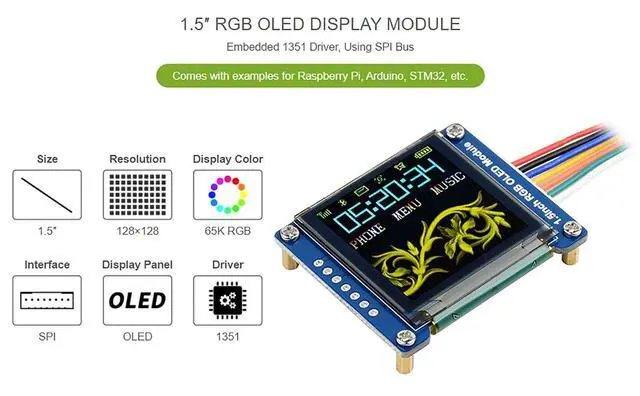

This is a general 1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color (65K colors), clearly displays colorful images, with embedded controller, communicating via SPI interface.

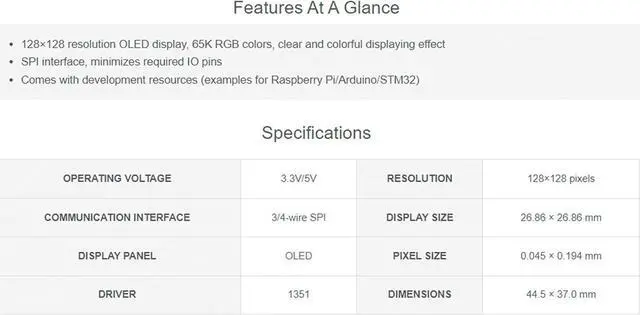

Driver: SSD1351.
Display color: RGB, 65K colors
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor

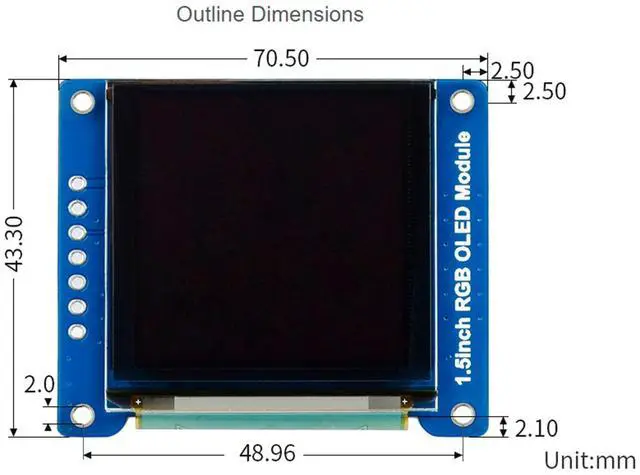

Dimension: 44.5 x 37 (mm), Operating
voltage: 3.3V / 5V, Viewing
angle: >160°, Interface: 4-wire SPI, 3-wire SPI
Driver: SSD1351.
Display color: RGB, 65K colors
Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
Dimension: 44.5 x 37 (mm), Operating
voltage: 3.3V / 5V, Viewing
angle: >160°, Interface: 4-wire SPI, 3-wire SPI
