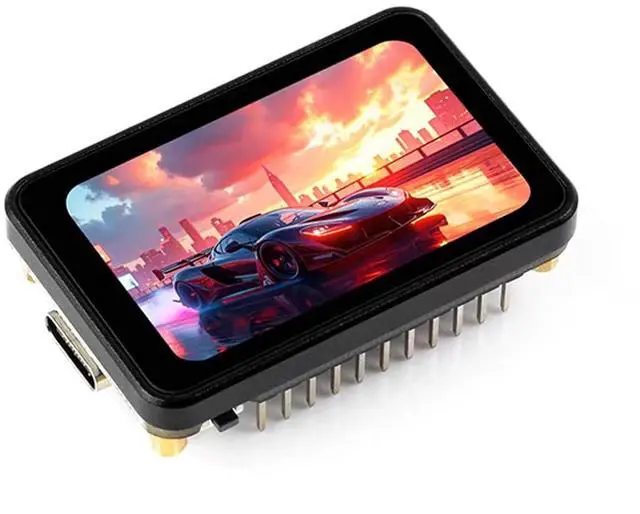

RP2350 1.64inch AMOLED Touch Display Development Board, 280x456, QSPI Interface, Onboard Accelerometer and Gyroscope Sensor, Dual-Core and Dual-Architecture Processor, Rich Functions, with Header
- RP2350A Chip: Using official RP2350A chip, adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory.

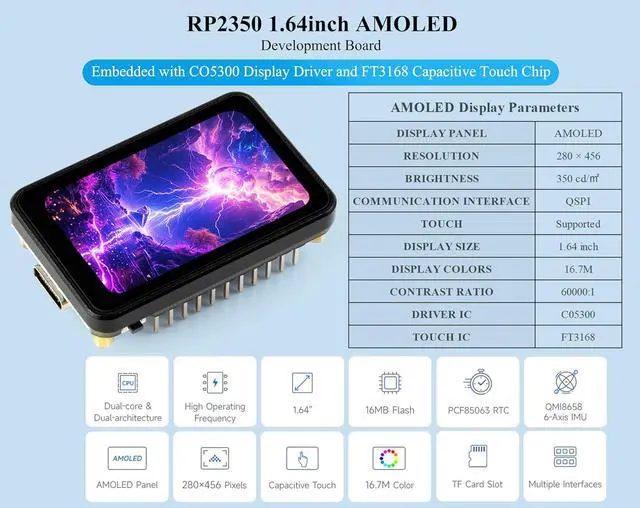

- Onboard AMOLED Screen: RP2350A Chip with 1.64inch AMOLED Capacitive Touch display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. Equipped with CO5300 display driver chip (via QSPI interface). Equipped with FT3168 capacitive touch chip (via I2C interface).

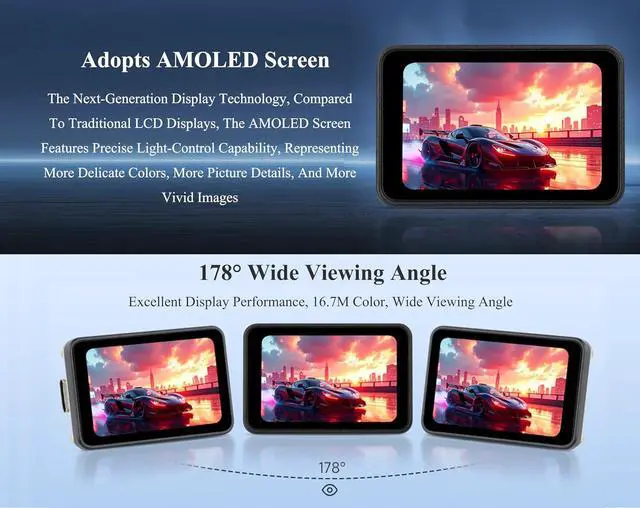

- AMOLED Screen Features: Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid images.

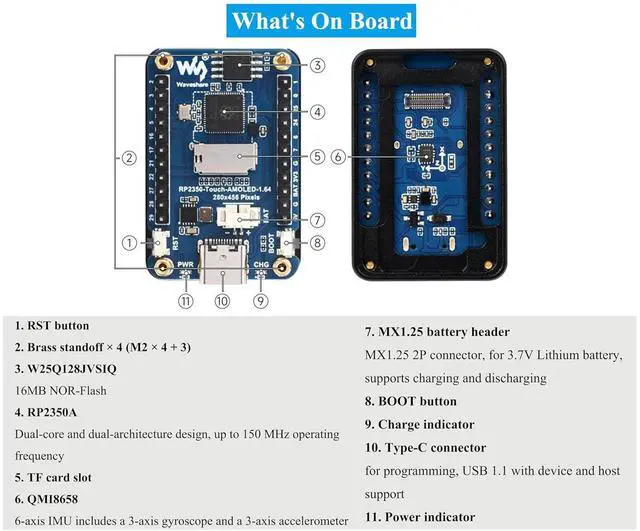

- Rich onboard peripherals and sensors: 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), Real-time clock (RTC): Provides time keeping function. Integrated on-chip temperature sensor to monitor the operating environment in real time.

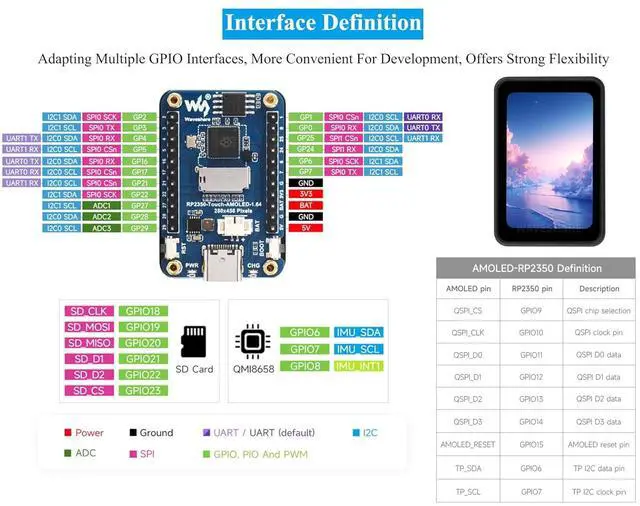

- Communication and Interface: Type-C connector for easier use. Support USB 1.1 host (Host) and slave (Device) mode. Drag-and-drop programming using mass storage over USB. Adapting 17 x GPIO pins for flexible configuration of pin function. 2 × I2C, 2 × UART, 3 × 12-bit ADC, 13 × controllable PWM channels.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
RP2350A Chip: Using official RP2350A chip, adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory.
Onboard AMOLED Screen: RP2350A Chip with 1.64 inch AMOLED Capacitive Touch display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. Equipped with CO5300 display driver chip (via QSPI interface). Equipped with FT3168 capacitive touch chip (via I2C interface).
AMOLED Screen Features: Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid images.
Rich onboard peripherals and sensors: 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), Real-time
clock (RTC): Provides time keeping function. Integrated on-chip temperature sensor to monitor the operating environment in real time.
Communication and Interface: Type-C connector for easier use. Support USB 1.1 host (Host) and slave (Device) mode. Drag-and-drop programming using mass storage over USB. Adapting 17 x GPIO pins for flexible configuration of pin function. 2 × I2C, 2 × UART, 3 × 12-bit ADC, 13 × controllable PWM channels.
Onboard AMOLED Screen: RP2350A Chip with 1.64 inch AMOLED Capacitive Touch display, QSPI interface, 280 x 456 resolution, 16.7M color. 178° wide viewing angle. Equipped with CO5300 display driver chip (via QSPI interface). Equipped with FT3168 capacitive touch chip (via I2C interface).
AMOLED Screen Features: Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid images.
Rich onboard peripherals and sensors: 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), Real-time
clock (RTC): Provides time keeping function. Integrated on-chip temperature sensor to monitor the operating environment in real time.
Communication and Interface: Type-C connector for easier use. Support USB 1.1 host (Host) and slave (Device) mode. Drag-and-drop programming using mass storage over USB. Adapting 17 x GPIO pins for flexible configuration of pin function. 2 × I2C, 2 × UART, 3 × 12-bit ADC, 13 × controllable PWM channels.
