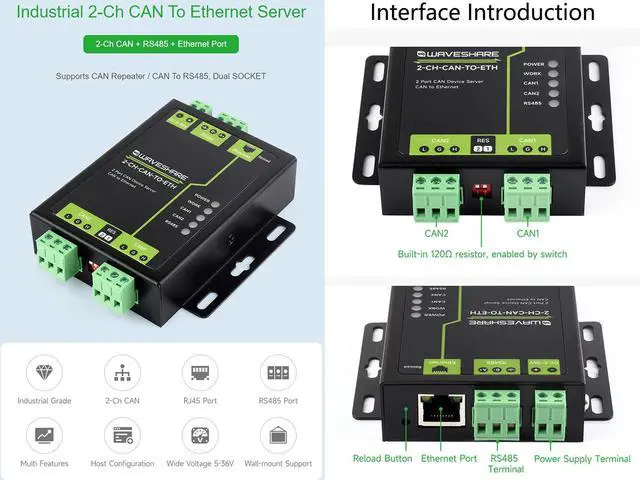

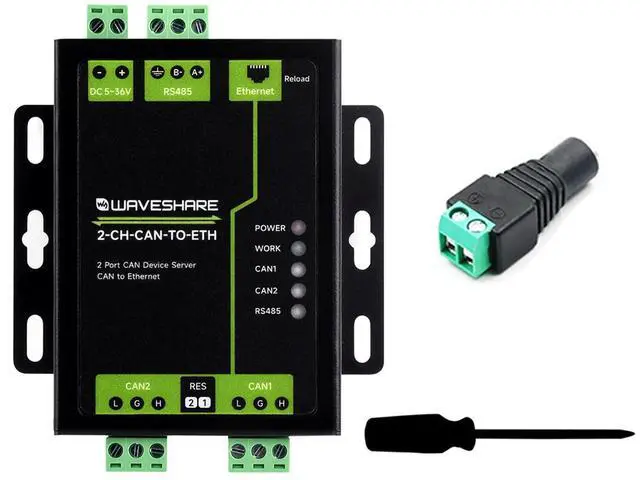

Industrial Grade 2-Ch CAN to Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports Can to ETH and RS485, CAN Repeater, Dual Socket Aluminium Alloy Case, Wall-Mount Support

Industrial Grade 2-Ch CAN To Ethernet Server, 2-Ch CAN + RS485 + Ethernet Port, Supports CAN to Ethernet and RS485, CAN Repeater (Bidirectional transmission between CAN bus interfaces), etc. Industrial-grade standard design for meeting temperature and voltage requirements in various application fields

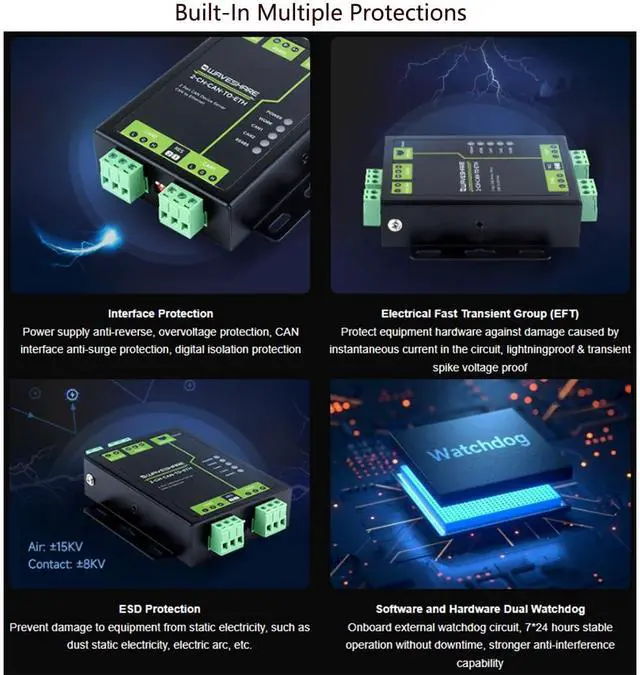

Built-in Multiple Protections: Interface Protection--Power supply anti-reverse, overvoltage protection, CAN interface anti-surge protection, digital isolation protection. Electrical Fast Transient Group (EFT) --Protect equipment hardware against damage caused by instantaneous current in the circuit, lightningproof & transient spike voltage proof.
ESD Protection: Prevent damage to equipment from static electricity, such as dust static electricity, electric arc, etc. Software and
Hardware Dual Watchdog: Onboard external watchdog circuit, 7*24 hours stable operation without downtime, stronger anti-interference capability.
CAN Repeater Function: To solve the problems of CAN network transmission rate and distance, and expand the number of communication network.
CAN ID filtering: Receives the data from CAN IDs within the configured range only, filtering out CAN frames outside the range

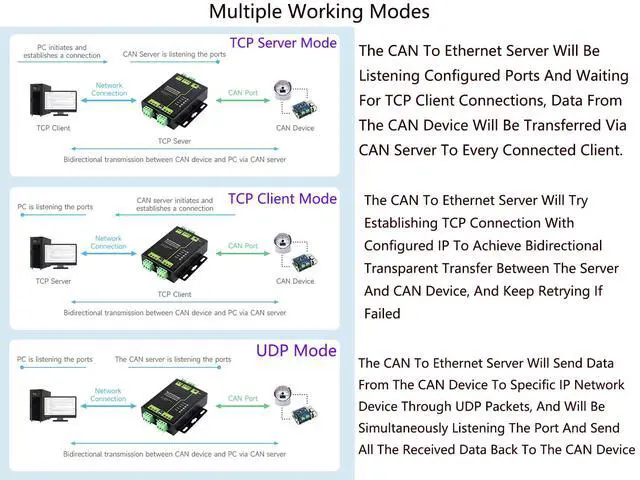

CAN Data Transparent Transmission Protocol: The frame structure transmission in working mode of each Socket includes frame information, frame ID, and frame data, compliant with CAN 2.0B specification, supports operation by any system
Application Examples: Expands charging station management scope for saving
