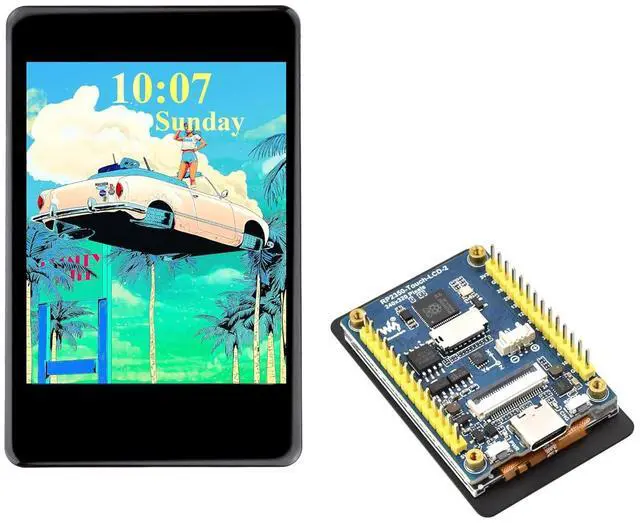

RP2350 2inch Capacitive Touch Display Development Board, Onboard 240x320 Pixels IPS LCD 262K Color 16MB Flash, Tiny Size with Rich Interface-Camera Interface,GPIO, Type C, 6-Axis Sensor, etc
- Powerful RP2350 Chip: Dual-Core Arm Cortex-M33 processor and Dual-Core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB SRAM and 16MB onboard Flash memory.
- Onboard Display: Onboard 2inch Capacitive Touch Display, 240 x 320 resolution, IPS Display Panel, 262K color, wide viewing angle.
- Onboard Camera Interface: Compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition. This Version doesn't include Camera Module.
- Plug and Play Design: Type-C connector, improving device compatibility, easier to use. Support USB 1.1 with device and host. Drag-and-drop program download: The USB is recognized as a large-capacity storage device, and the firmware can be burned without complicated tools.
- Rich GPIO and Interface Expandability: Adapting 22 × GPIO pins for flexible configuration of pin function. Support 2 x SPI, 2 x I2C, 2 x UART, 2 x 12-bit ADC, 14 x controllable PWM channels, provide flexible hardware expansion capabilities. Support 12 x Programmable I/O (PIO) state machines for custom peripheral.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Powerful RP2350 Chip: Dual-Core Arm Cortex-M33 processor and Dual-Core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB SRAM and 16MB onboard Flash memory.
Onboard Display: Onboard 2inch Capacitive Touch Display, 240 x 320 resolution, IPS Display Panel, 262K color, wide viewing angle.
Onboard Camera Interface: Compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition. This Version doesn't include Camera Module.
Plug and Play Design: Type-C connector, improving device compatibility, easier to use. Support USB 1.1 with device and host.
Drag-and-drop program download: The USB is recognized as a large-capacity storage device, and the firmware can be burned without complicated tools.
Rich GPIO and Interface Expandability: Adapting 22 × GPIO pins for flexible configuration of pin function. Support 2 x SPI, 2 x I2C, 2 x UART, 2 x 12-bit ADC, 14 x controllable PWM channels, provide flexible hardware expansion capabilities. Support 12 x Programmable I/O (PIO) state machines for custom peripheral.
Onboard Display: Onboard 2inch Capacitive Touch Display, 240 x 320 resolution, IPS Display Panel, 262K color, wide viewing angle.
Onboard Camera Interface: Compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition. This Version doesn't include Camera Module.
Plug and Play Design: Type-C connector, improving device compatibility, easier to use. Support USB 1.1 with device and host.
Drag-and-drop program download: The USB is recognized as a large-capacity storage device, and the firmware can be burned without complicated tools.
Rich GPIO and Interface Expandability: Adapting 22 × GPIO pins for flexible configuration of pin function. Support 2 x SPI, 2 x I2C, 2 x UART, 2 x 12-bit ADC, 14 x controllable PWM channels, provide flexible hardware expansion capabilities. Support 12 x Programmable I/O (PIO) state machines for custom peripheral.
