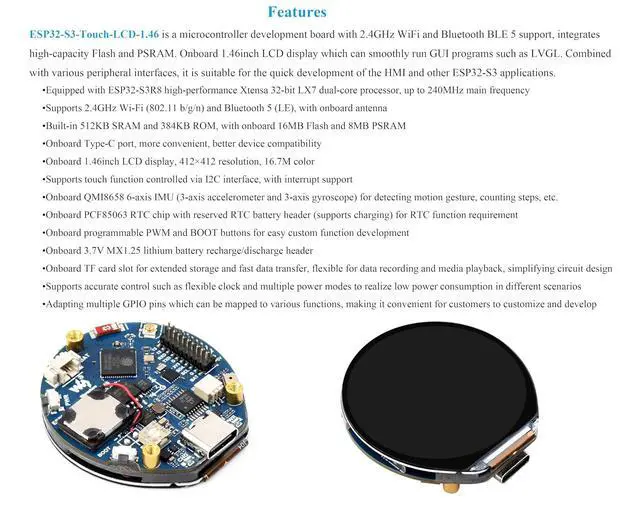

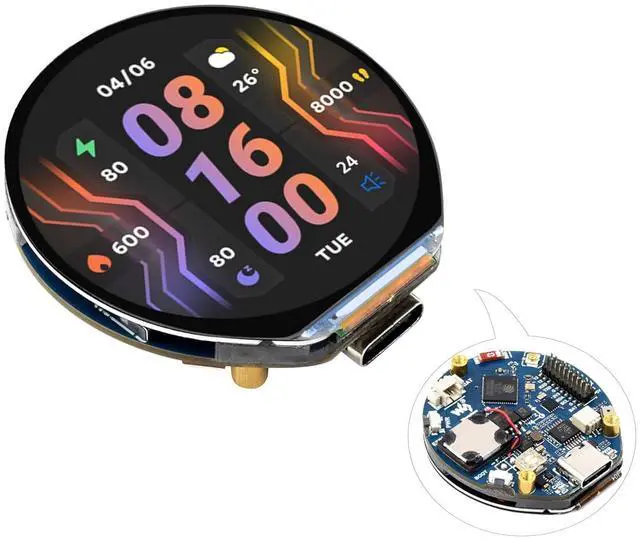

ESP32-S3 1.46inch Round Touch Display Development Board, 412×412 Pixel IPS LCD, Accelerometer and Gyroscope Sensor, Onboard Speaker and Microphone, ESP32 with Display, Supports W-i-F-i & B LE
- There are two versions of this item, this version is ESP32-S3-Touch-LCD-1.46B, with touch control, without cover glass. ESP32-S3 1.46inch Round Display Development Board, 412×412 Pixel, Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Supports 2.4GHz Wi-F--i (802.11 b/g/n) and B LE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
- IPS Display Panel, 16.7M color, 412×412 resolution, with wide viewing angle. Onboard Type-C port, more convenient, better device compatibility. Onboard 1.46inch LCD display, 412×412 resolution, 16.7M color.
- Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
There are two versions of this item, this version is ESP32-S3-Touch-LCD- 1.46B, with touch control, without cover glass. ESP32-S3 1.46 inch Round Display Development Board, 412×412 Pixel, Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
Supports 2.4GH z Wi-F--i ( 802.11 b/g/n) and B LE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
IPS Display Panel, 16.7M color, 412×412 resolution, with wide viewing angle. Onboard Type-C port, more convenient, better device compatibility. Onboard 1.46 inch LCD display, 412×412 resolution, 16.7M color.
Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Supports 2.4GH z Wi-F--i ( 802.11 b/g/n) and B LE 5 (LE), with onboard antenna. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Supports capacitive touch function controlled via I2C interface for flexible operation and smooth UI interaction, with interrupt support.
IPS Display Panel, 16.7M color, 412×412 resolution, with wide viewing angle. Onboard Type-C port, more convenient, better device compatibility. Onboard 1.46 inch LCD display, 412×412 resolution, 16.7M color.
Onboard Audio input and output. Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
