Jetson Orin Nano/NX AI Development Board Based on Jetson Orin Nano and Jetson Orin NX AI Module, Compatible with N-VIDIA Jetson Orin Nano Super Developer Kit, Same Interfaces as Official Orin Nano Kit

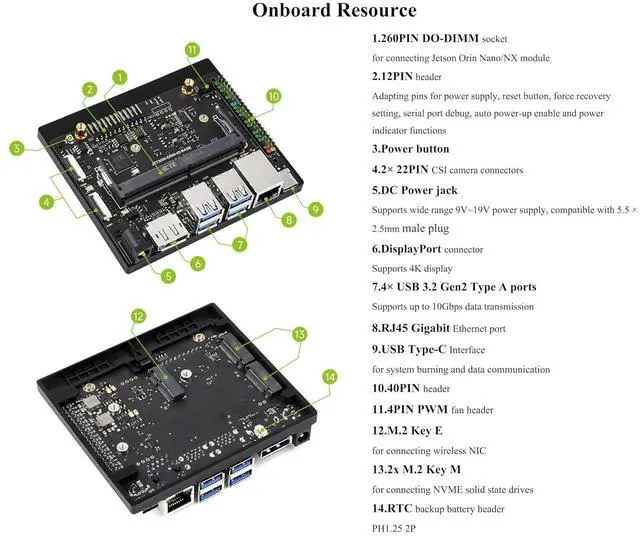

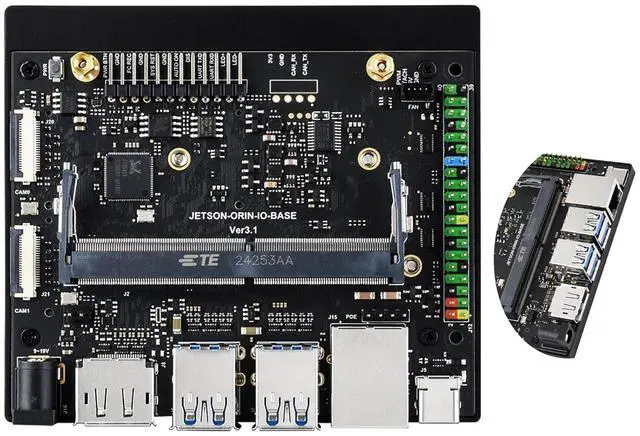

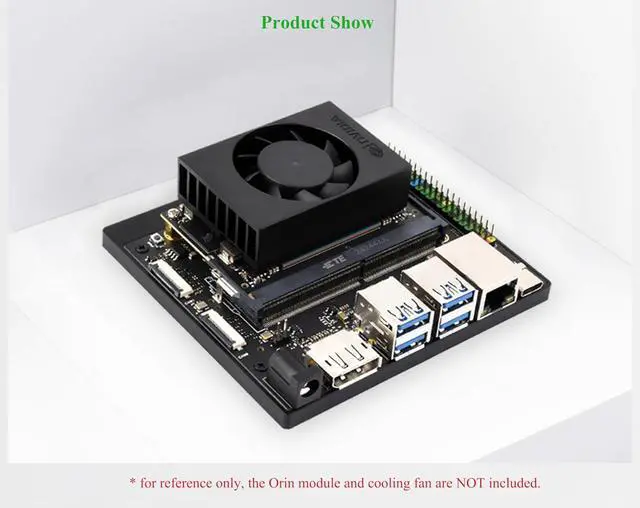

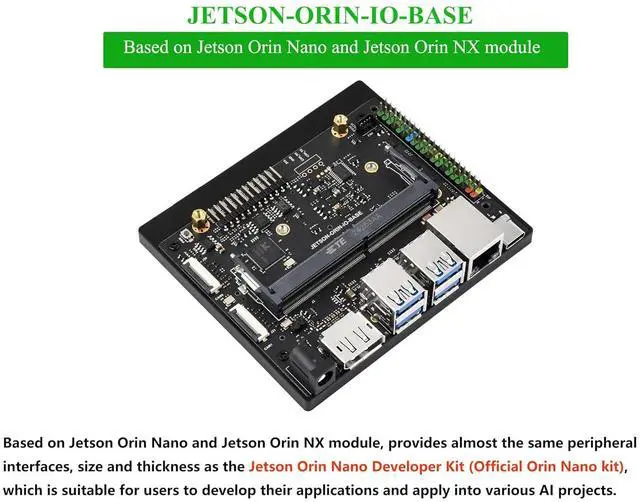

- JETSON-ORIN-IO-BASE Board---Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.

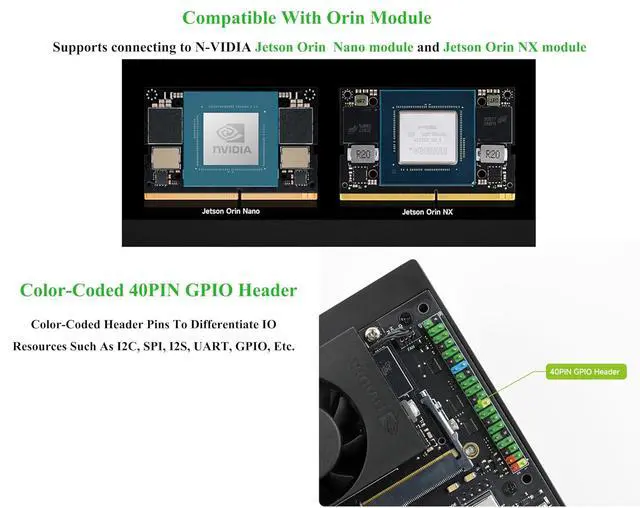

- Compatible with Orin Module---Supports connecting to N- VIDIA Jetson Orin Nano module and Jetson Orin NX module.

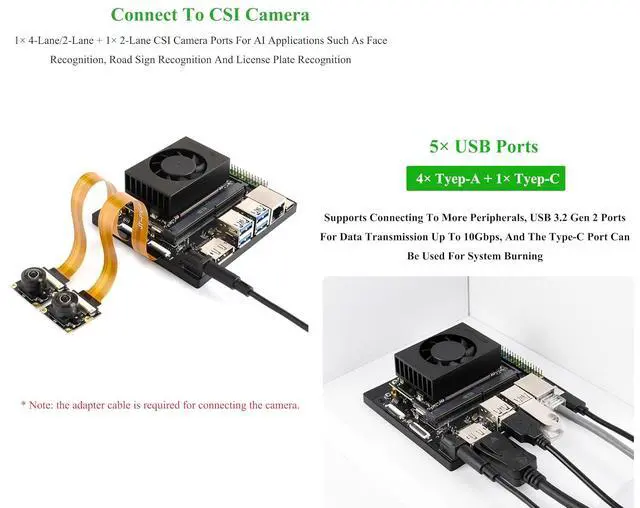

- Connect to CSI Camera---1× 4-Lane/2-Lane + 1× 2-Lane CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition.
- 5× USB ports: 4× Tyep-A + 1× Tyep-C ---Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning.

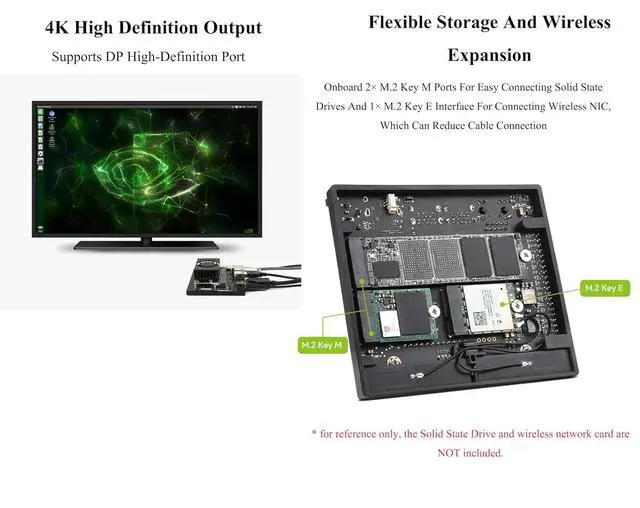

- 4K High Definition output, supports DP High-definition Port. color-coded 40PIN GPIO header to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
JETSON-ORIN-IO-BASE Board---Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply into various AI projects.
Compatible with Orin Module---Supports connecting to N- VIDIA Jetson Orin Nano module and Jetson Orin NX module.
Connect to CSI Camera---1× 4-Lane/2-Lane + 1× 2-Lane CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition.
5× USB ports: 4× Tyep-A + 1× Tyep-C ---Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning.
4K High Definition output, supports DP High-definition Port. color-coded 40PIN GPIO header to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.
Compatible with Orin Module---Supports connecting to N- VIDIA Jetson Orin Nano module and Jetson Orin NX module.
Connect to CSI Camera---1× 4-Lane/2-Lane + 1× 2-Lane CSI camera ports for AI applications such as face recognition, road sign recognition and license plate recognition.
5× USB ports: 4× Tyep-A + 1× Tyep-C ---Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, and the Type-C port can be used for system burning.
4K High Definition output, supports DP High-definition Port. color-coded 40PIN GPIO header to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.
