RS232/485/422 to RJ45 Ethernet Converter, with POE Function, Bi-Directional Transparent Data, TCP/IP to Serial, Serial Server for Data Acquisition, IoT Gateway Intelligent Instrument Monitoring

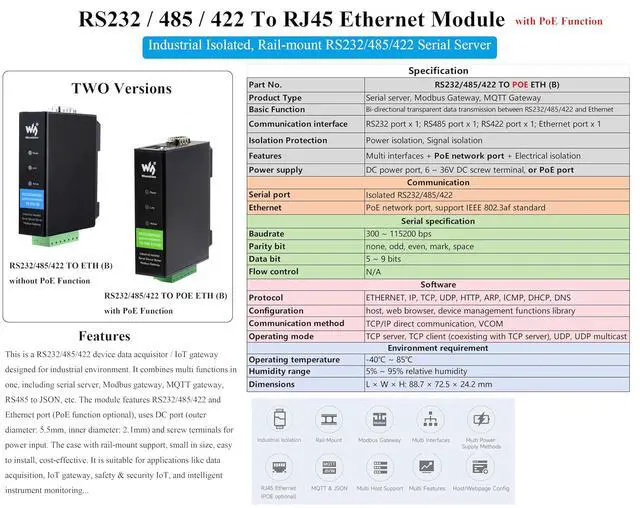

This is an Industrial Isolated, Rail-mount RS232/485/422 Serial Server device data acquisitor / IoT gateway (with POE Function, ) designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. Suitable for data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, etc.

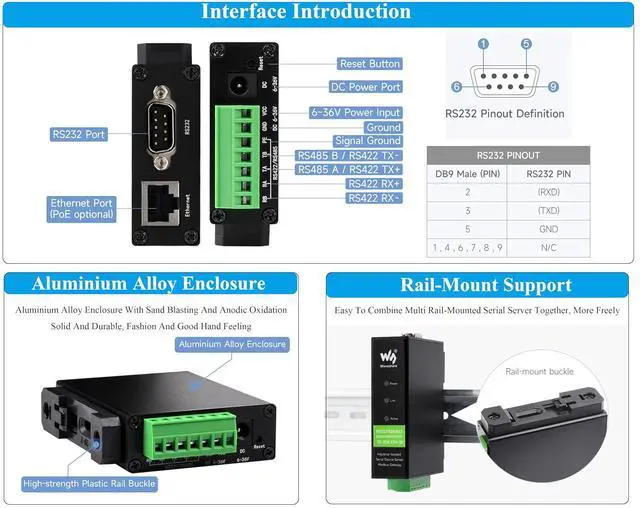

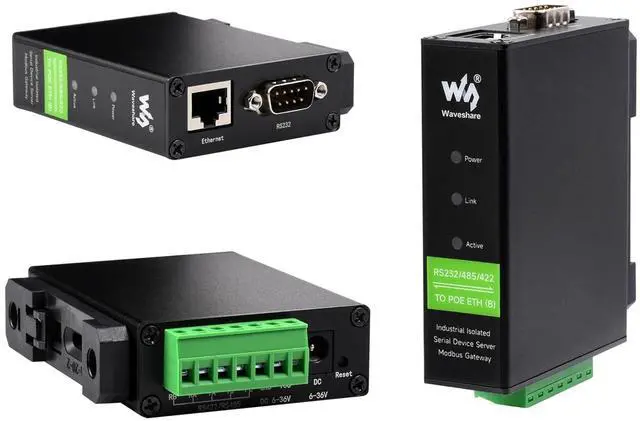

Bi-Directional transparent data transmission between RS232/485/422 and Ethernet. Three Different Interfaces---Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios. (Support Rail-mount and Aluminium Alloy Enclosure)

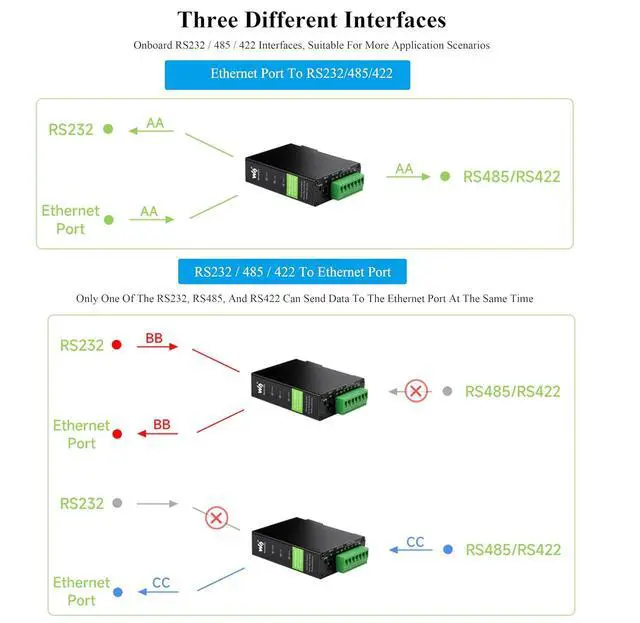

Ethernet Port To RS232/485/422---The Ethernet port can send data to three serial ports at the same time. RS232 / 485 / 422 To Ethernet Port---Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.

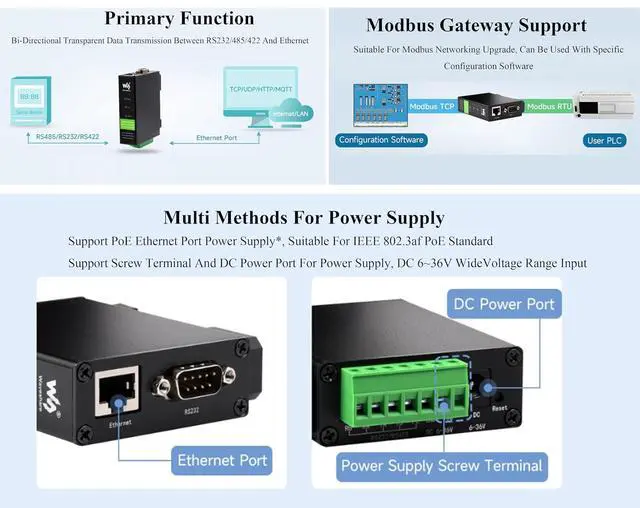

Multi Power Supply Methods---Support PoE Ethernet port power supply, Suitable for IEEE 802.3 af PoE standard. Support Screw Terminal and DC Power Port for Power Supply, DC 6~36V ide Voltage Range Input.
Modbus Gateway Support---Suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi Configuration Methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
