Main image of RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 2 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 3 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 4 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 5 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 6 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Alt view image 7 of 7 - RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Shop All LORDWORLD Products | Visit TechDen Store

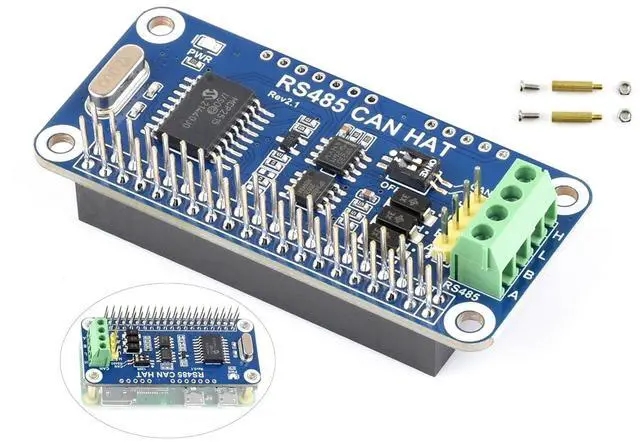

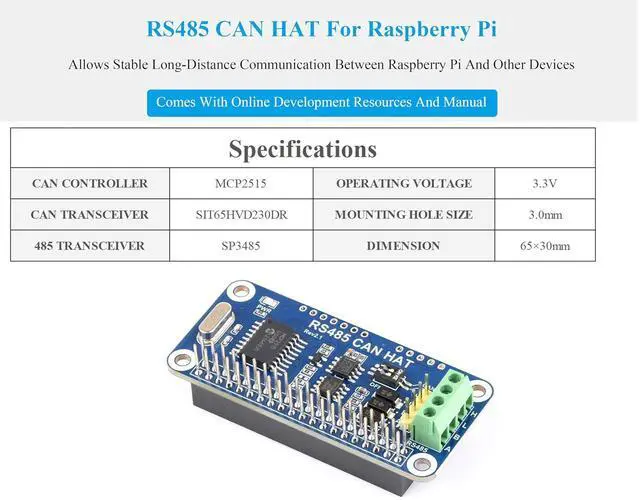

RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, Expand CAN and RS485 Functions, CAN Controller MCP2515 via SPI Interface, RS485 Controlled via UART

Be the first to review this product...

RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W,etc.

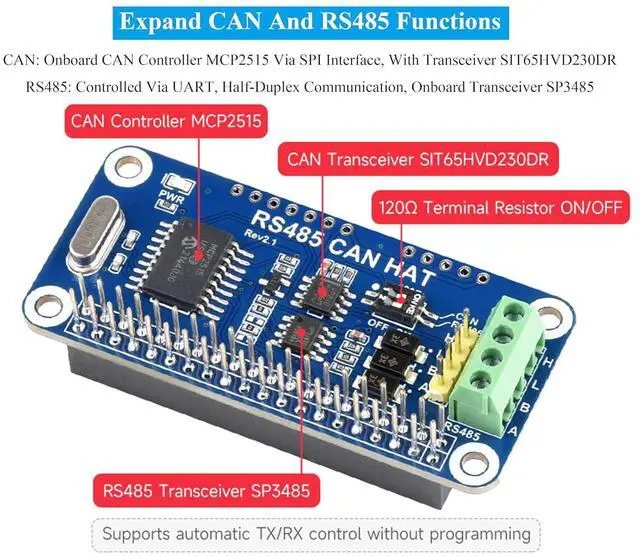

Expand CAN and RS485 functions. CAN: onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR
RS485: controlled via UART, half-duplex communication, onboard transceiver SP3485.

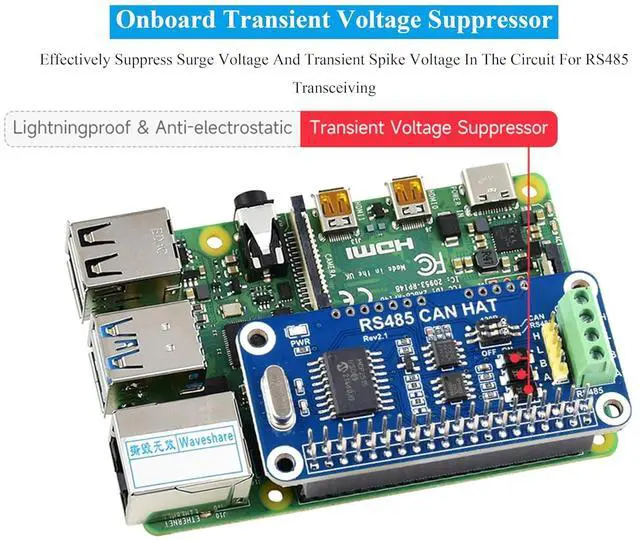

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ning proof & anti-electrostatic.

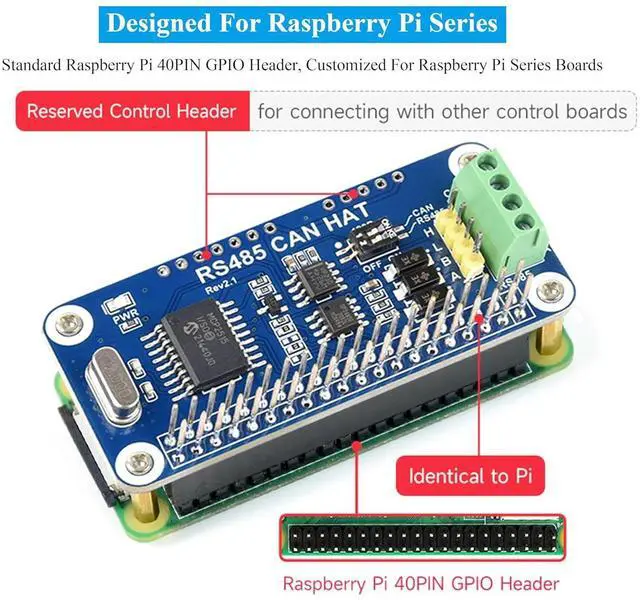

Onboard 120 terminal resistor for RS485 and CAN interfaces, enabled via DIP switch. Reserved control header, allows working with other control boards.

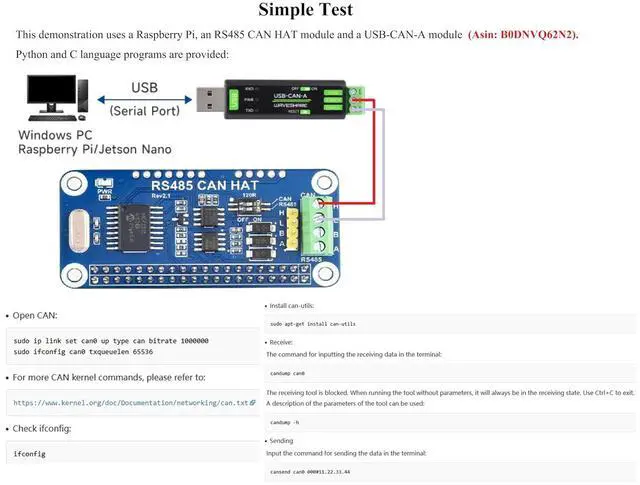

Comes with Online Development Resources /User Manual, please follow there: bit.ly/3mC64mA

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

RS485 CAN HAT Compatible with Raspberry Pi 5/4B/3B+/3B/Zero/Zero W/WH/Zero 2W, etc.
Expand CAN and RS485 functions.
CAN: onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR
RS485: controlled via UART, half-duplex communication, onboard transceiver SP3485.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ning proof & anti-electrostatic.
Onboard 120 terminal resistor for RS485 and CAN interfaces, enabled via DIP switch. Reserved control header, allows working with other control boards.
Comes with Online Development Resources /User Manual, please
follow there: bit. ly/3mC64mA

Model
Brand	LORDWORLD

Additional Information
First Listed on Newegg	August 24, 2026
