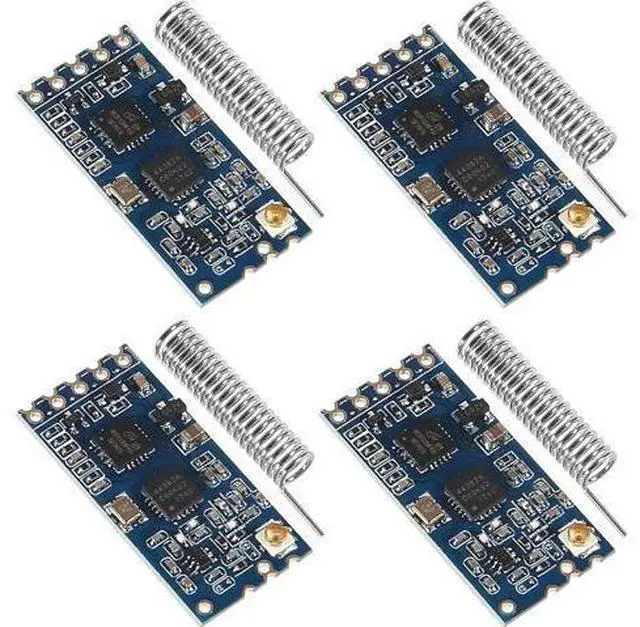

D-FLIFE 4pcs HC-12 433Mhz SI4463/SI4438 Wireless Serial Port Module 1000M Replace Bluetooth with Antenna
- Default Idle Current: 16 mA (module operating current is different in different operating modes). | Operating Frequency Range(433.4-473.0MHz, up to 100 communication channels), maximum 100mW transmit power (settable). | Default Communication Distance(open field test): about 600m (the communication distance can be adjusted up to 1000m, the air baud rate is 5000bps). | Default Factory Setting: working mode FU3, baud rate 9600bps, communication channel CH001 (433.4M). | Module Size: 27.8mm*14.4mm*4mm | Power Supply Voltage: 3.2V~5.5V. (If the module is to be in the transmitting state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid the built-in LDO heating of the module).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
_
Default Idle Current: 16 mA (module operating current is different in different operating modes).
_ Operating Frequency Range( 433.4 - 473.0MH z, up to 100 communication channels), maximum 100mW transmit power (settable).
_ Default Communication Distance (open field test): about 600m (the communication distance can be adjusted up to 1000m, the air baud rate is 5000bps).
_ Default Factory Setting: working mode FU3, baud rate 9600bps, communication channel CH001 ( 433.4M ).
_ Module Size: 27.8 mm* 14.4 mm*4mm
_ Power Supply Voltage: 3.2V ~ 5.5V. (If the module is to be in the transmitting state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid the built-in LDO heating of the module).
Default Idle Current: 16 mA (module operating current is different in different operating modes).
_ Operating Frequency Range( 433.4 - 473.0MH z, up to 100 communication channels), maximum 100mW transmit power (settable).
_ Default Communication Distance (open field test): about 600m (the communication distance can be adjusted up to 1000m, the air baud rate is 5000bps).
_ Default Factory Setting: working mode FU3, baud rate 9600bps, communication channel CH001 ( 433.4M ).
_ Module Size: 27.8 mm* 14.4 mm*4mm
_ Power Supply Voltage: 3.2V ~ 5.5V. (If the module is to be in the transmitting state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid the built-in LDO heating of the module).
