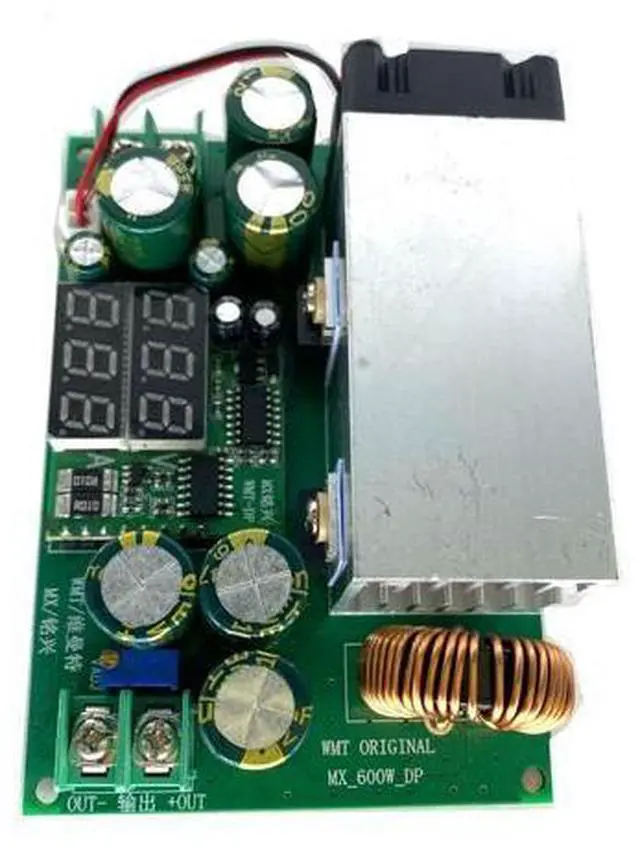

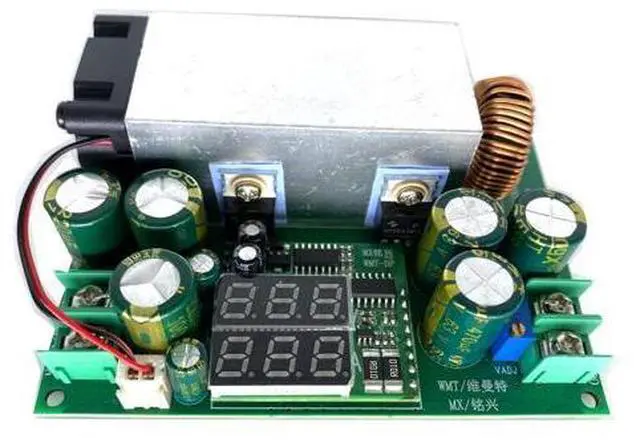

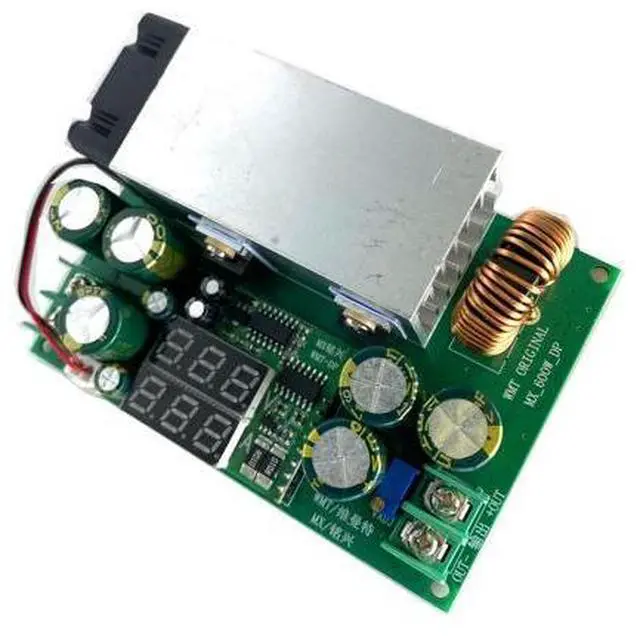

DC-DC 25A 600W Adjustable Step Down Module High Power 12V-75V to 5V 19V 21V 24V 48V with Digital Display of Voltage and Current
- Product parameters: Input voltage: DC12-75V, not suitable for 72V batteries | Output voltage: 2.5V-50V adjustable (can only be stepped down) | Output current: 20A (maximum) | 25A overcurrent | Maximum power: 600W | Digital display function added for more convenient use | overcurrent protection | continuously adjustable output voltage and current. In high-power situations, the wiring should be as thick as possible | Voltage conversion 12-80V to 5V, 12-80V to 9V, 14-80V to 12V, 17-80V to 14.8V, 19-80V to 16.8V, 22-80V to 19V, 24-80V to 21V, 28-80V to 24V, 35-80V to 30V, 41-80V to 36V ,48-80V to 42V, 55-80V to 48V | Interface description IN+: Input positive terminal, IN-: Input negative terminal, OUT+: Output positive terminal, OUT- output negative terminal, VADJ: Output voltage adjustment, clockwise increases, counterclockwise decreases | Note: This module is a step-down module and cannot be stepped up. To charge batteries or storage batteries, diodes need to be added. | [Satisfactory Servi
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
_
Product parameters: Input
voltage: DC12-75V, not suitable for 72V batteries
_ Output voltage: 2.5V -50V adjustable (can only be stepped down)
_ Output current: 20A (maximum)
_ 25A overcurrent
_ Maximum power: 600W
_ Digital display function added for more convenient use
_ overcurrent protection
_ continuously adjustable output voltage and current. In high-power situations, the wiring should be as thick as possible
_ Voltage conversion 12-80V to 5V, 12-80V to 9V, 14-80V to 12V, 17-80V to 14.8V, 19-80V to 16.8V, 22-80V to 19V, 24-80V to 21V, 28-80V to 24V, 35-80V to 30V, 41-80V to 36V, 48-80V to 42V, 55-80V to 48V
_ Interface description IN+: Input positive terminal, IN-: Input negative terminal, OUT+: Output positive terminal, OUT- output negative terminal, VADJ: Output voltage adjustment, clockwise increases, counterclockwise decreases
_ Note: This module is a step-down module and cannot be stepped up. To charge batteries or storage batteries, diodes need to be added.
_ [Satisfactory Servi
Product parameters: Input
voltage: DC12-75V, not suitable for 72V batteries
_ Output voltage: 2.5V -50V adjustable (can only be stepped down)
_ Output current: 20A (maximum)
_ 25A overcurrent
_ Maximum power: 600W
_ Digital display function added for more convenient use
_ overcurrent protection
_ continuously adjustable output voltage and current. In high-power situations, the wiring should be as thick as possible
_ Voltage conversion 12-80V to 5V, 12-80V to 9V, 14-80V to 12V, 17-80V to 14.8V, 19-80V to 16.8V, 22-80V to 19V, 24-80V to 21V, 28-80V to 24V, 35-80V to 30V, 41-80V to 36V, 48-80V to 42V, 55-80V to 48V
_ Interface description IN+: Input positive terminal, IN-: Input negative terminal, OUT+: Output positive terminal, OUT- output negative terminal, VADJ: Output voltage adjustment, clockwise increases, counterclockwise decreases
_ Note: This module is a step-down module and cannot be stepped up. To charge batteries or storage batteries, diodes need to be added.
_ [Satisfactory Servi
