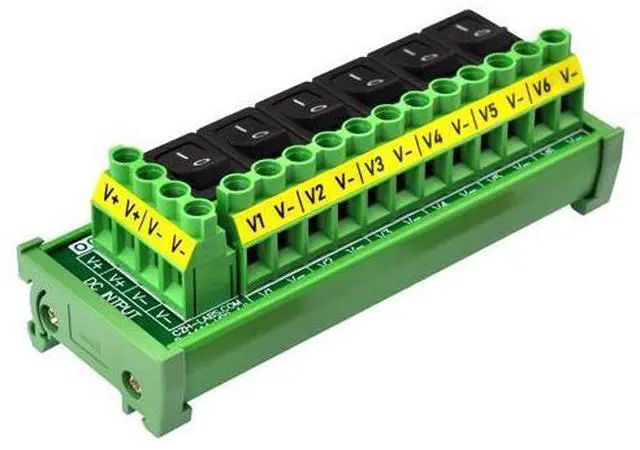

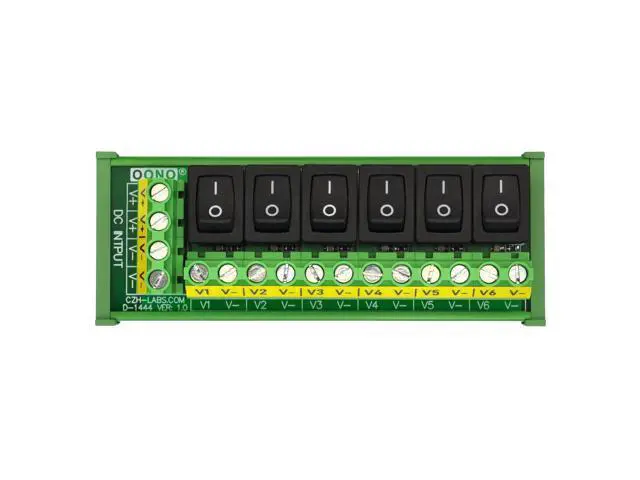

DIN Rail Mount 6 Channel Rocker Switch DC Power Distribution Strip Module
- Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps. | Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. | Output terminals pitch 7.62mm/0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. | Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function. | High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
_ Working voltage DC 0 to 50V. Maximum total input current 30 Amps. 6 Channels output, each channel maximum output current 10 Amps.

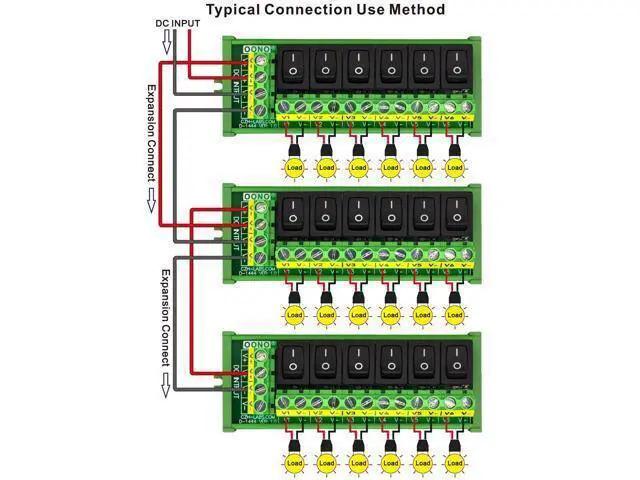

_ Input terminals pitch 7.62 mm/ 0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
_ Output terminals pitch 7.62 mm/ 0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.

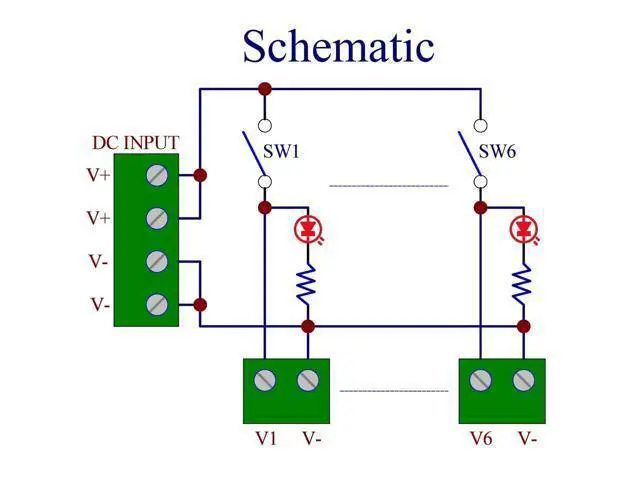

_ Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
_ High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
_ Input terminals pitch 7.62 mm/ 0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
_ Output terminals pitch 7.62 mm/ 0.3", wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw.
_ Rocker switch ON/OFF power output for each channel. With switch power ON LED indication function.
_ High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail. FR-4 fiberglass dual copper layers PCB.
