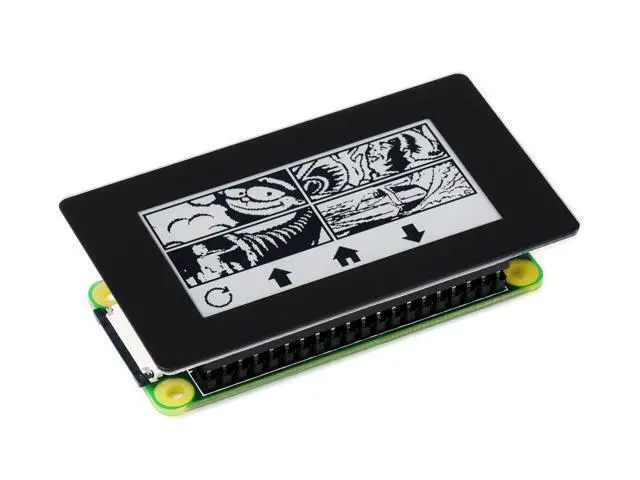

waveshare 2.13inch Touch e-Paper Display for Raspberry Pi Zero 2 W/Raspberry Pi Zero/Pi Zero W/Pi Zero WH, 250x122 Pixels E-Ink Screen, Paper-Like Effect Support Partial Refresh
- 2.13" capacitive touch e-Paper display, 5-point touch, 250122 pixels.Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture. | No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back,combined with thermal tape, effective heat dissipation. | Outline dimensions(Module): 69.15 38.90mm. Outline dimensions(Driver Board): 59.51mm 34.00mm. Display area: 48.55mm 23.71mm. Operating Voltage: 3.3V (V1.1 support 5V). Communication interface: SPI. Dot pitch: 0.194 0.194mm. | Greyscale: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Touchpoints: 5 (MAX). Touch type: Capacitive touch. Touch interfaced: I2C. Touch panel: Toughened Glass . | Comes with development resources and manual (examples for Raspberry Pi).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

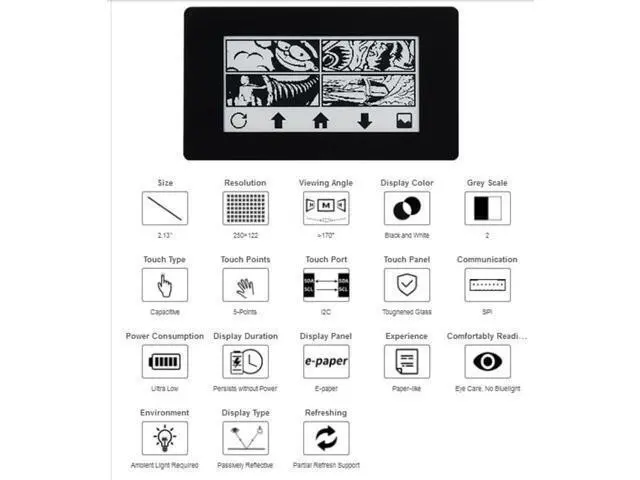

_ 2.13" capacitive touch e-Paper display, 5-point touch, 250122 pixels.

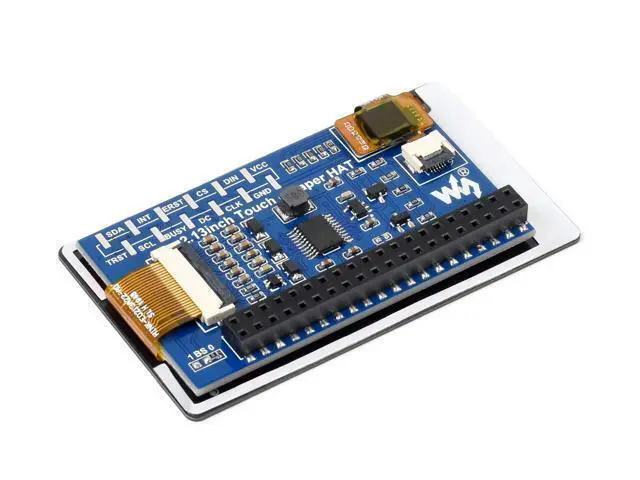

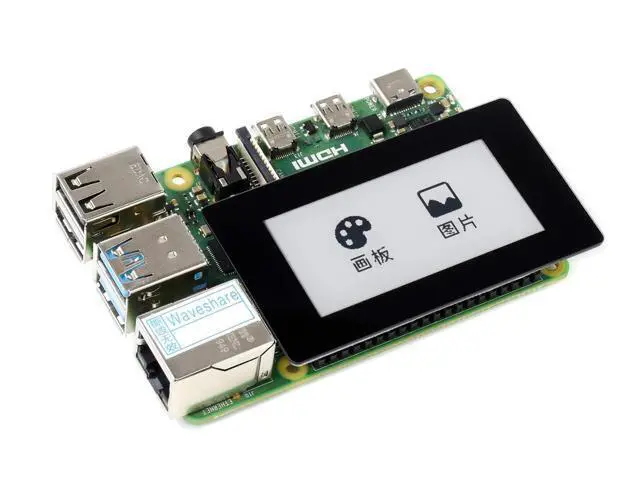

Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
_ No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation.
_ Outline dimensions (Module): 69.15 38.90 mm. Outline dimensions (Driver
Board): 59.51 mm 34.00 mm.
Display area: 48.55 mm 23.71 mm.
Operating Voltage: 3.3V (V 1.1 support 5V).
Communication interface: SPI.
Dot pitch: 0.194 0.194 mm.
_ Greyscale:
2.
Partial refresh time: 0.3 s.
Full refresh time: 2s.
Refresh power: 26.4 mW(typ. ).
Touchpoints: 5 (MAX).
Touch type: Capacitive touch.
Touch interfaced: I2C.
Touch panel: Toughened Glass.
_ Comes with development resources and manual (examples for Raspberry Pi).
Display color: black, white. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W. Supports waken up by user-defined gesture.
_ No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing. Heat dissipation holes on the back, combined with thermal tape, effective heat dissipation.
_ Outline dimensions (Module): 69.15 38.90 mm. Outline dimensions (Driver
Board): 59.51 mm 34.00 mm.
Display area: 48.55 mm 23.71 mm.
Operating Voltage: 3.3V (V 1.1 support 5V).
Communication interface: SPI.
Dot pitch: 0.194 0.194 mm.
_ Greyscale:
2.
Partial refresh time: 0.3 s.
Full refresh time: 2s.
Refresh power: 26.4 mW(typ. ).
Touchpoints: 5 (MAX).
Touch type: Capacitive touch.
Touch interfaced: I2C.
Touch panel: Toughened Glass.
_ Comes with development resources and manual (examples for Raspberry Pi).
