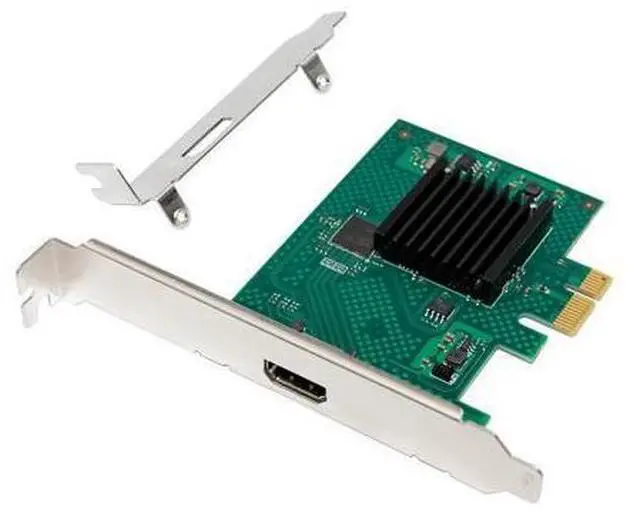

PCIe x1 to Single HDMI Embedded Graphics Card SM750 2D Multimedia Video Adapter, Industrial Display Card for Digital Signage / Kiosk / Embedded Systems

Parameter

Details

Graphics Engine 2D Host Interface PCIe x1 Embedded Memory 16MB DDR (optional) External Memory 64MB DDR (maximum) Max Resolution 1920 × 1440 Supported OS Win CE, Win XP, Win 7, Win 2003 (32/64-bit), Win 2008 (32/64-bit), Linux Enterprise (32/64-bit), Ubuntu, Centos, Debian CPU Platform Intel, AMD, ZFMicro, Freescale PPC, AMCc, STMicro, Marvell, Loongson, and other PCIe-compatible platforms Operating Temperature -40°C ~ +85°C PCI-Express x1
Architecture: x86 processors ARM, MIPS, PPC, and ARC processors 16MB Integrated Video DDR
Memory Options: Embedded 16MB DDR only Embedded 16MB DDR (32-bit I/F) + External 16MB DDR (32-bit I/F) External up to 64MB DDR (64-bit I/F)
Power Consumption: Low power < 1.5W Cost-Effective Multi-Display /
Panel Support: Supports dual 300 MHz DACs with resolution up to 1920×1440 Dual 18-bit DVO interfaces, supporting TMDS or LVDS converters with resolution up to 1920×1440 Dual independent display outputs with separate resolutions and refresh rates
Rotation Function: Screen
image rotation: 90°, 180°, and 270° 2D
Graphics Accelerator: 128-bit 2D graphics engine ROP3, BitBLT, transparent Blt, pattern BLT, color expansion, and line drawing YUV-to-16/32-bit RGB conversion
Video Display Layers: Supports 7 display layers (2 hardware cursors, primary graphics, video, video transparent, transparent, and secondary graphics) with scaled video ports Two 8-bit ports or one 16-bit video capture port supporting ITU 601 and ITU 656 specifications fo
