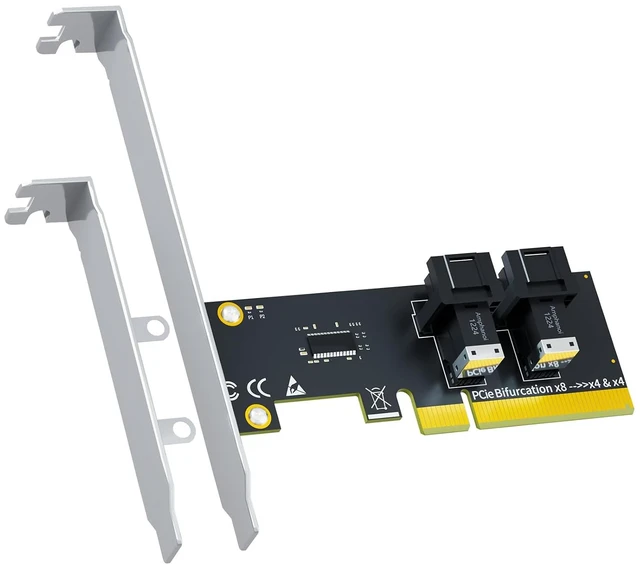

SF02 2-Port SFF-8643 to PCIe 4.0 X8, Bifurcation Required

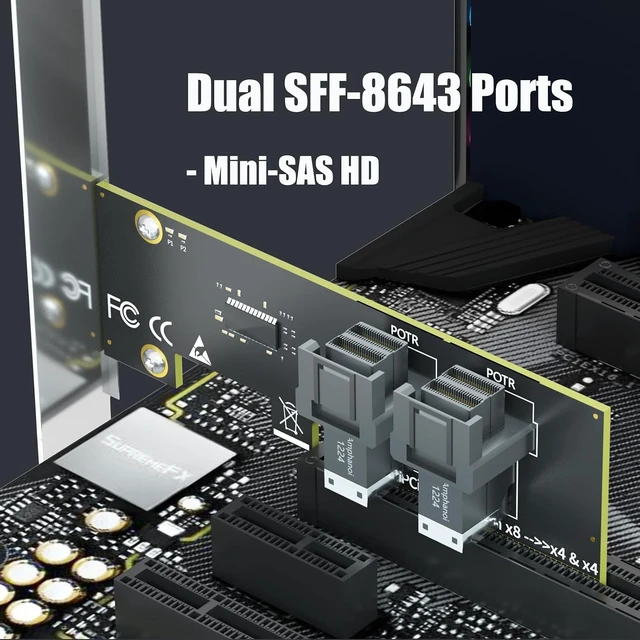

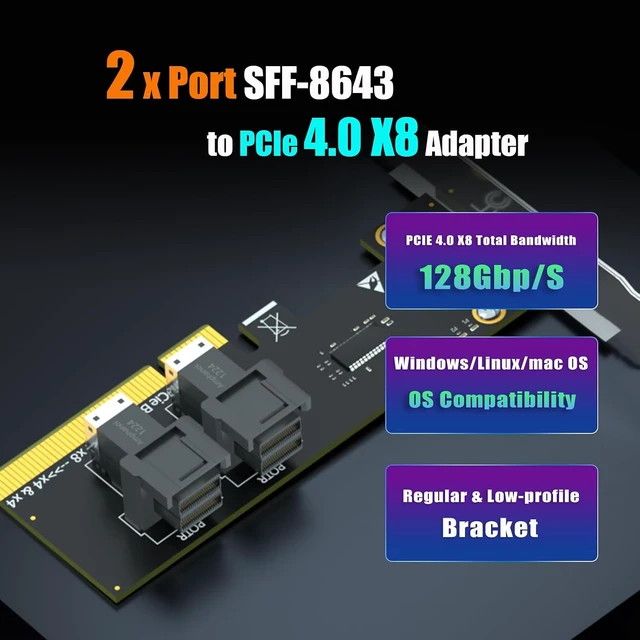

- 2-port SFF-8643 to PCIe 4.0 x8 adapter card: convert a single PCIe 4.0 x8 slot into 2x SFF-8643 (Mini-SAS HD) ports, backward compatible with PCIe 3.0/2.0/1.0.; Add two U.2 SSDs to a PC or server that doesn't natively support U.2 - connect each SFF-8643 port to your drives with SFF-8643 to SFF-8639 cables (sold separately).; Bandwidth: PCIe 4.0 x8 upstream with a dedicated PCIe 4.0 x4 link for each SFF-8643 port - both drives run at full speed at the same time.; CHECK BEFORE ORDERING: this card is passive and does not create PCIe bifurcation - your motherboard must support PCIe bifurcation in BIOS, otherwise only port 1 is recognized.; Cross-platform plug and play with Windows 11/10/8, Linux and macOS; configure SSD RAID via native OS disk management tools. Regular bracket pre-installed, low-profile bracket included.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
2-port SFF-8643 to
PCIe 4.0 x8 adapter card: convert a single PCIe 4.0 x8 slot into 2x SFF-8643 (Mini-SAS HD) ports, backward compatible with PCIe 3.0 / 2.0 / 1.0.; Add two U. 2 SSDs to a PC or server that doesn't natively support U. 2 - connect each SFF-8643 port to your drives with SFF-8643 to SFF-8639 cables (sold separately).;

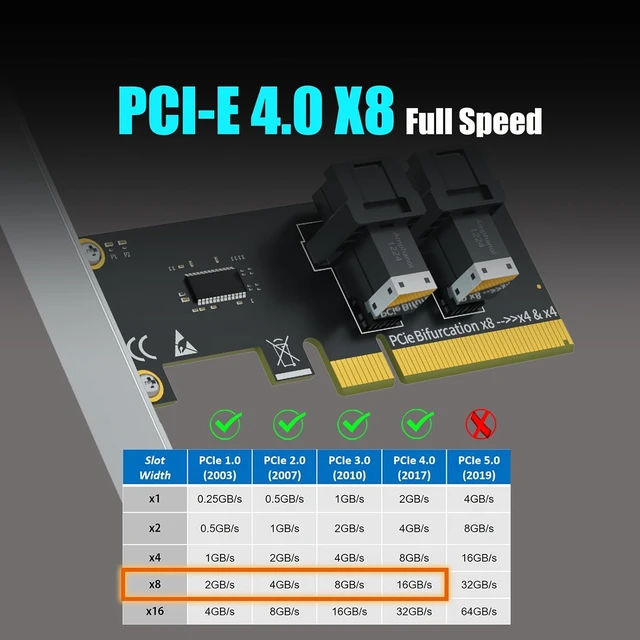

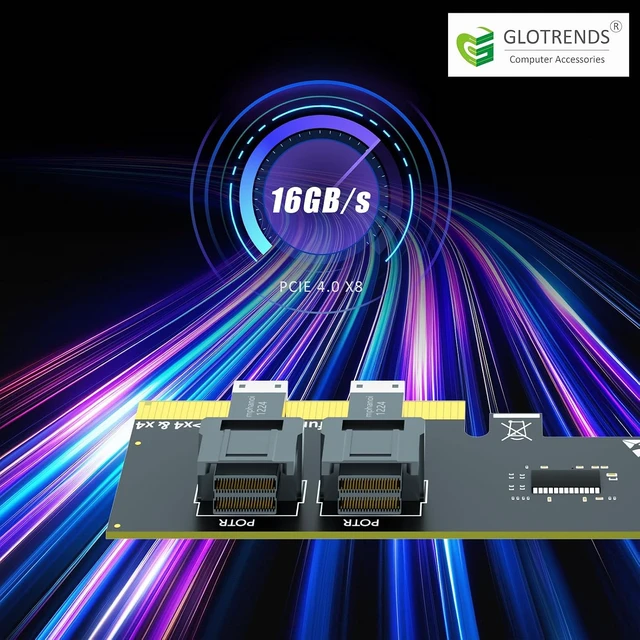

Bandwidth: PCIe 4.0 x8 upstream with a dedicated PCIe 4.0 x4 link for each SFF-8643 port - both drives run at full speed at the same time.;

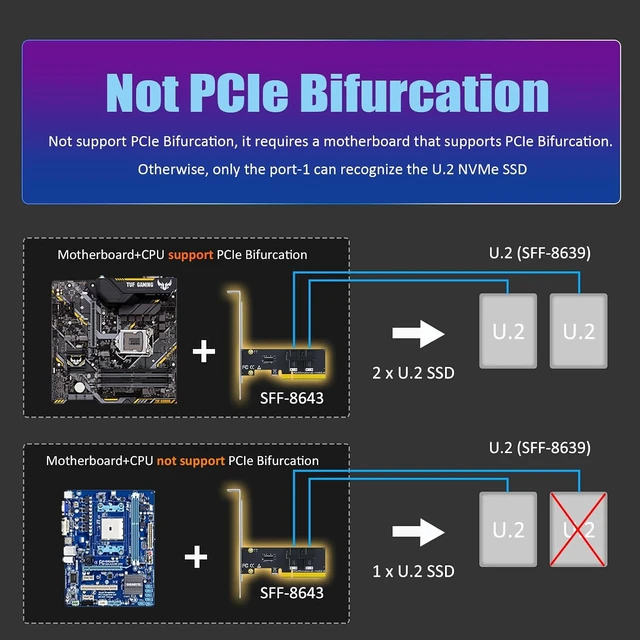

CHECK BEFORE ORDERING: this card is passive and does not create PCIe bifurcation - your motherboard must support PCIe bifurcation in BIOS, otherwise only port 1 is recognized.; Cross-platform plug and play with Windows 11/10/8, Linux and macOS; configure SSD RAID via native OS disk management tools. Regular bracket pre-installed, low-profile bracket included.
PCIe 4.0 x8 adapter card: convert a single PCIe 4.0 x8 slot into 2x SFF-8643 (Mini-SAS HD) ports, backward compatible with PCIe 3.0 / 2.0 / 1.0.; Add two U. 2 SSDs to a PC or server that doesn't natively support U. 2 - connect each SFF-8643 port to your drives with SFF-8643 to SFF-8639 cables (sold separately).;
Bandwidth: PCIe 4.0 x8 upstream with a dedicated PCIe 4.0 x4 link for each SFF-8643 port - both drives run at full speed at the same time.;
CHECK BEFORE ORDERING: this card is passive and does not create PCIe bifurcation - your motherboard must support PCIe bifurcation in BIOS, otherwise only port 1 is recognized.; Cross-platform plug and play with Windows 11/10/8, Linux and macOS; configure SSD RAID via native OS disk management tools. Regular bracket pre-installed, low-profile bracket included.
