8 FUSE OUT ACCESS PWR SPL

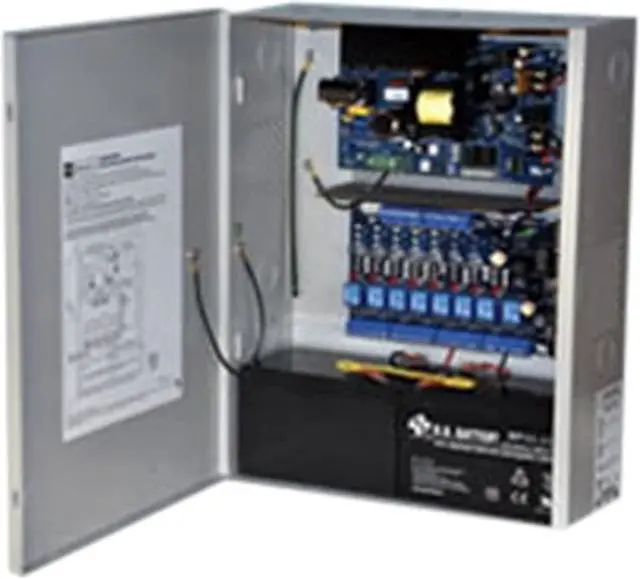

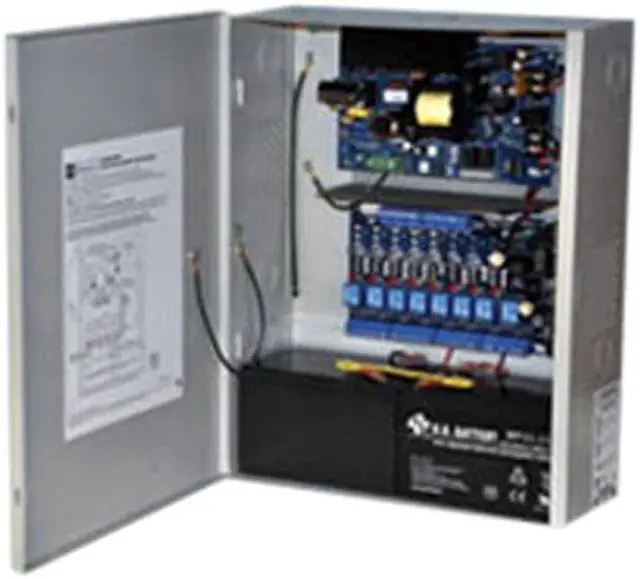

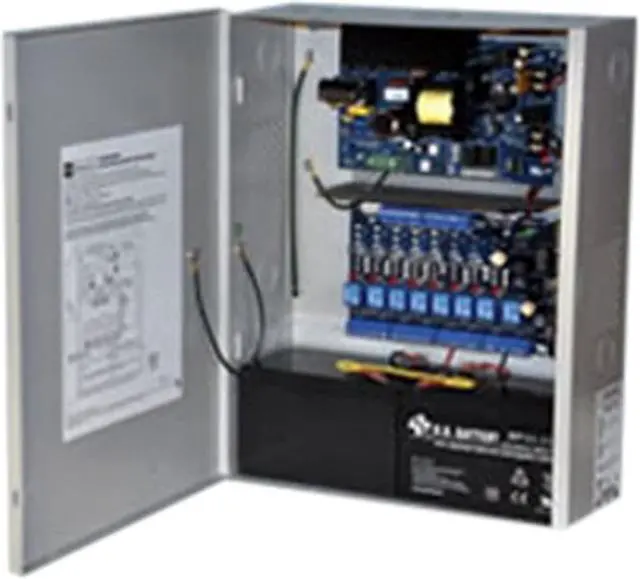

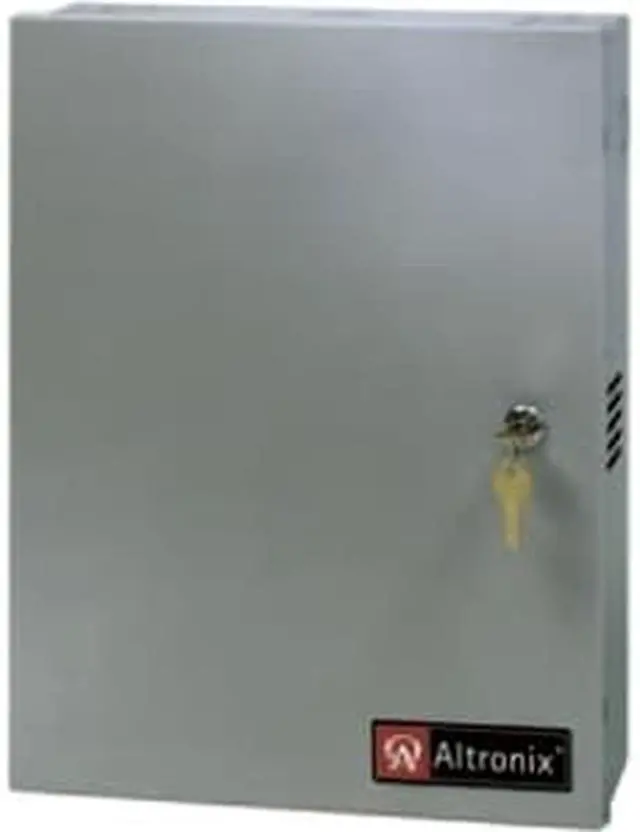

Model AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1012ULACMCB is a PTC protected version of this unit. Product Type: Proprietary Power Supply Input Voltage: 110 V AC Output Voltage: 12 V DC Product Type: Proprietary Power Supply Compatibility: Card Reader Mag Locks Electric Strikes Magnetic Door Holders Input Voltage: 110 V AC Manufacturer Part Number: AL1012ULACM Packaged Quantity: 1 Limited Warranty: Lifetime Output Voltage: 12 V DC Weight (Approximate): 10.20 lb Form Factor: Wall Mount Form Factor: Wall Mount Manufacturer: Altronix Corporation Product Model: AL1012ULACM Product Name: AL1012ULACM Proprietary Power Supply Brand Name: Altronix Brand Name: Altronix Country of Origin: United States Height: 15.5 Width: 12.2 Depth: 4.5 Environmentally Friendly: Yes Environmental Certification: RoHS
