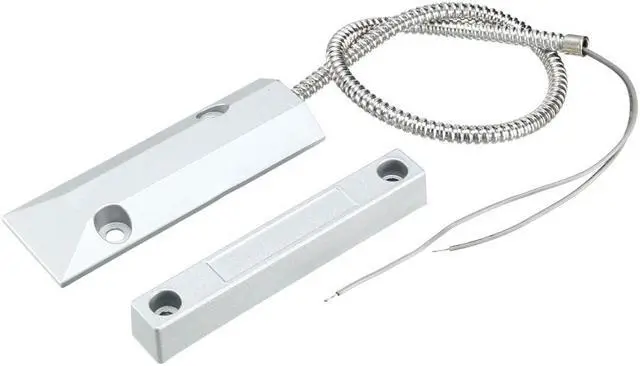

Unique Bargains OC-55 NC Nomally Closed Alarm Security Rolling Gate Garage Door Contact Magnetic Reed Switch
- 0.5A Maximum Switch Current
- Will make Sense Door Closer at Roughly 40-50mm
- Screw Surface Mount

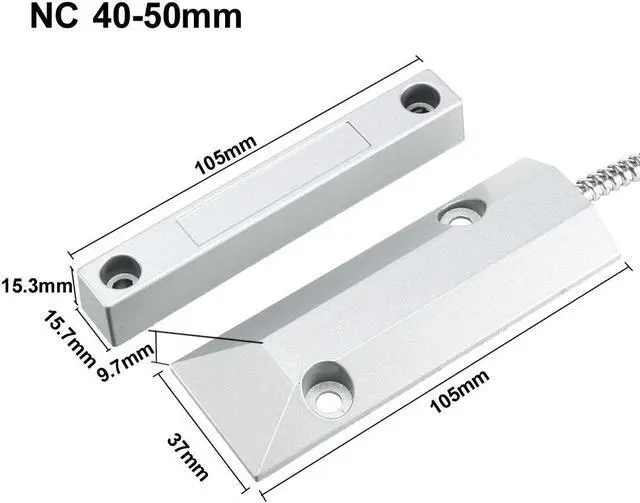

- Size(Approx): 105 x 37 x 9.7mm, 105 x 15.7 x 15.3mm (L*W*H)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
1.Actuation Distance: 40-50mm. Zinc Alloy Housing, Stainless Steel Pipe.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!
Specification:
Product Name: Magnetic Door Switch
Model: OC-55
Contact Type: NC
Actuation Distance: 40-50mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Size(Approx): 105 x 37 x 9.7mm, 105 x 15.7 x 15.3mm (L*W*H)
Hole Dia.: 5.33mm
Cable Length(Each): 50cm / 19.7-inch
Pipe Thread Length: 37mm / 1.46-inch
Material: Zinc Alloy (Housing)

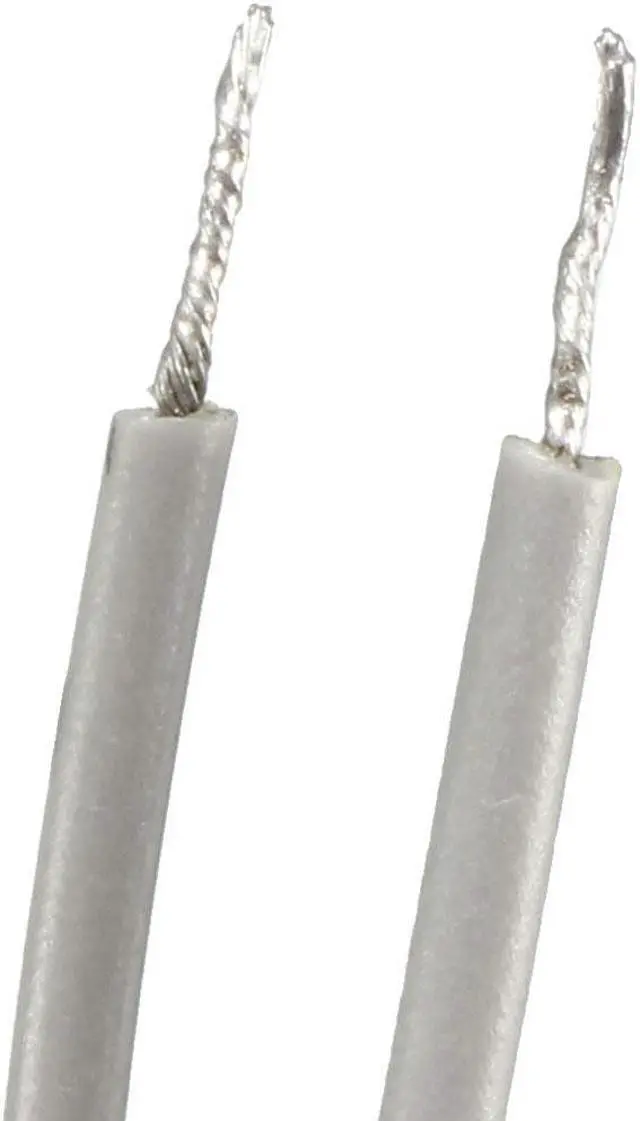

Wire Type: 1007UL#22AWG
Color: Silver Gray
Net W
1.Actuation Distance: 40-50mm. Zinc Alloy Housing, Stainless Steel Pipe.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Designed for use with alarm systems. Great for use in family and factory window, door. etc.
4.Screw Mounted for easily install.
5.NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ). When make order,pls check carefully!
Specification:
Product Name: Magnetic Door Switch
Model: OC-55
Contact Type: NC
Actuation Distance: 40-50mm
Max. Current: 0.5A
Max. Power: 10W
Working Voltage: DC100V
Size(Approx): 105 x 37 x 9.7mm, 105 x 15.7 x 15.3mm (L*W*H)
Hole Dia.: 5.33mm
Cable Length(Each): 50cm / 19.7-inch
Pipe Thread Length: 37mm / 1.46-inch
Material: Zinc Alloy (Housing)
Wire Type: 1007UL#22AWG
Color: Silver Gray
Net W
