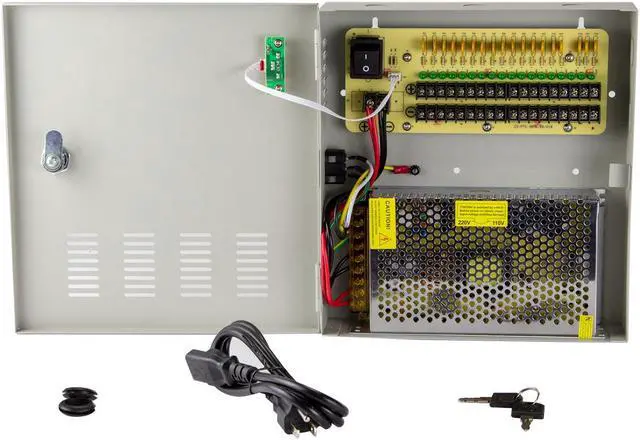

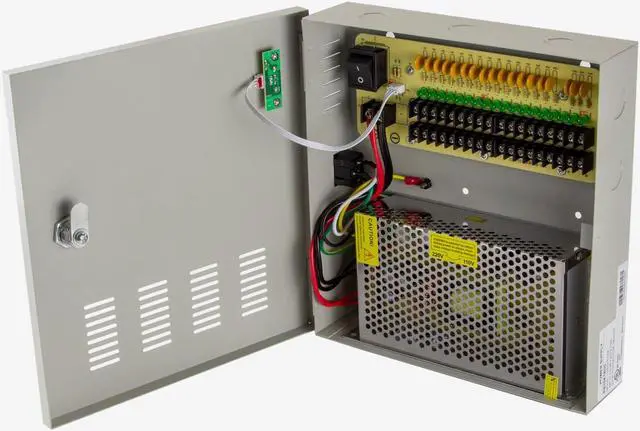

18 Output 15Amp 12V DC CCTV Distributed power supply box UL Listed
- COMMERCIAL GRADE CCTV power distribution box, supply 18 channels output. Box Dimension: 9.5(W) x 10.25(L) x 2.5(H)
- Input: AC 110V-220V auto switch, 50/60 Hz. Maximum total Output: DC 12V, 15Amp, 180W.

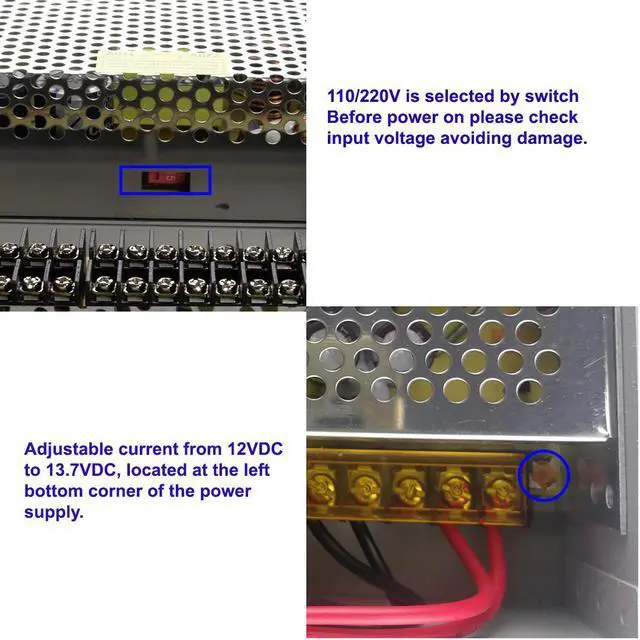

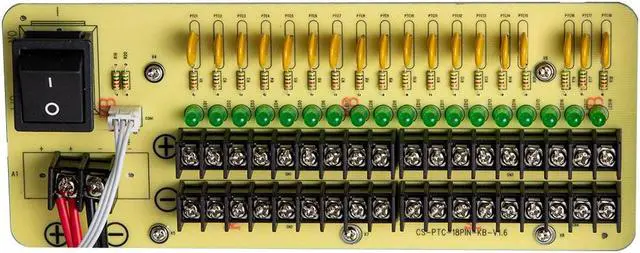

- 18 channels (+/-) Screw terminal connector support up to 18 CCTV cameras or devices. Distributes 12VDC 0.83Amp evenly when all channels are used. Maximum output for PTC fuse could go up to 1.1Amp Note: Using 13 channels only. Adjustable current from 12VDC to 13.7VDC, located at the left bottom corner of the power supply.
- This 18 channel power supply comes with a US Standard 3-Prong AC power cord, makes installation simple and easy. One-year warranty. UL listed power supply, meet safety requirement.
- This power box has multiple uses, e.g. CCTV equipment, Microphone, some Digital Video Recorder, or LED strip lights, etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input Voltage: AC 100-240V, Manually Switch
Input Current A: 3A
Output Voltage: DC 12V +/-5%
Total Output Current: 15A
Output for each Channel A: 0.83A
Max current for PTC Fuse: 1.1A
Total Outputs: 18
Dimensions MM: 10.25 * 9.5 * 2.5 inch (260*240*60mm )
Fuse Type: PTC ( Resettable ) Never need to replace
Casing Material: Metal
Connection:
1. Turn power switch to OFF position.
2. Connect each camera device to one +/- Power output pair
3. Plug the AC plug into 120VAC power outlet.
4. Turn power switch to ON position, the output LED indictor of each channel should be on.
5. Close the cover and secure it with the provided screws.
Input Current A: 3A
Output Voltage: DC 12V +/-5%
Total Output Current: 15A
Output for each Channel A: 0.83A
Max current for PTC Fuse: 1.1A
Total Outputs: 18
Dimensions MM: 10.25 * 9.5 * 2.5 inch (260*240*60mm )
Fuse Type: PTC ( Resettable ) Never need to replace
Casing Material: Metal
Connection:
1. Turn power switch to OFF position.
2. Connect each camera device to one +/- Power output pair
3. Plug the AC plug into 120VAC power outlet.
4. Turn power switch to ON position, the output LED indictor of each channel should be on.
5. Close the cover and secure it with the provided screws.
