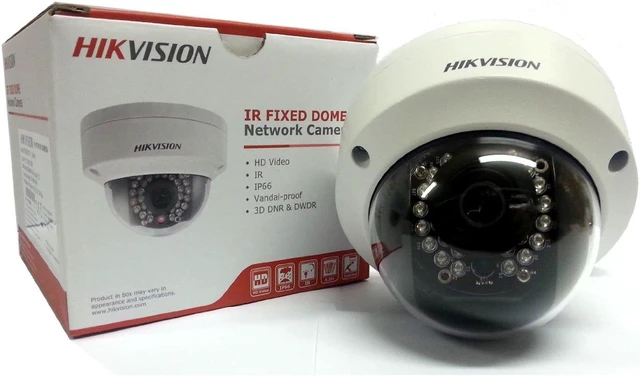

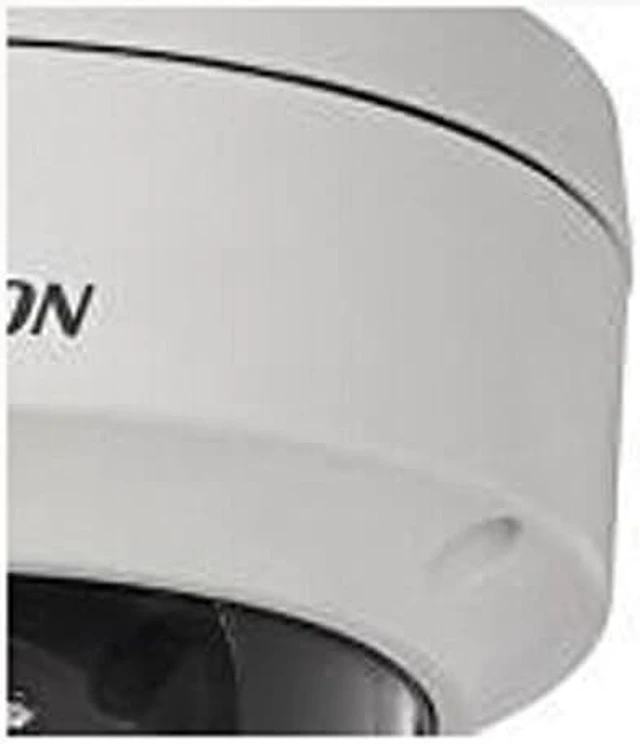

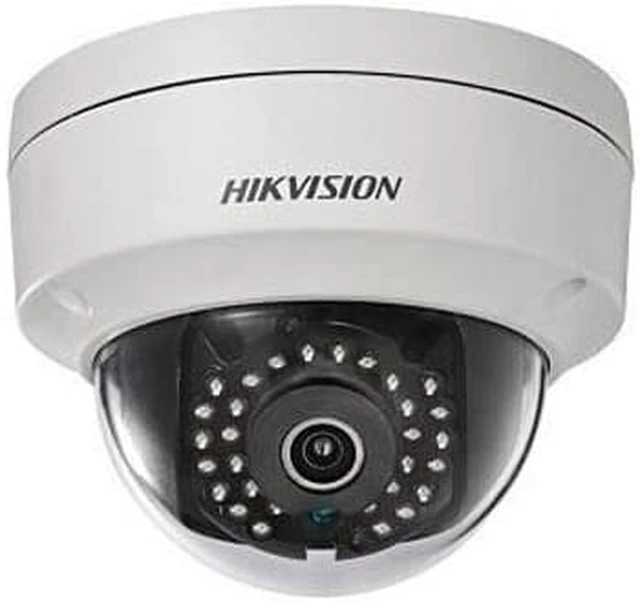

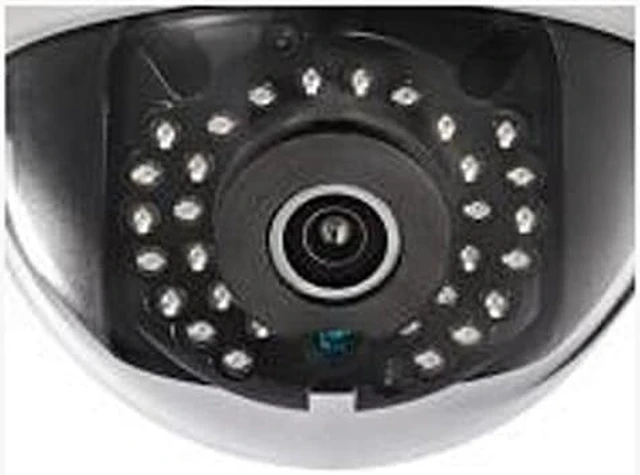

Original English Version DS-2CD2132F-IWS 3MP Vandal-Resistant Fixed Network Dome POE Camera Firmware Upgradeable, 2.8mm Lens, US Stock

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR0.19 Lux @ (F2.0, AGC ON) ,0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Lens: 2.8mm
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: Digital WDR
Digital noise reduction: 3D DNR

Compression Standard
Video Compression: H.264/MJPEG
H.264 code profile: Main Profile
Video bit rate: 32Kbps~12Mbps
Audio Compression: -S: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)
Dual Stream: Yes

Max. Image Resolution: 2048x1536
Frame Rate: 50Hz: 20fps(2048 x 1536), 25fps(1920x 1080), 25fps (1280 x 720)60Hz: 20fps(2048 x 1536), 30fps(1920 x 1080), 30fps (1280 x 720)
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Support

Network
Network Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security: One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access
System Compatibility: ONVIF, PSIA, CGI, ISAPI

Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: -S: 1 alarm I/O

Wi-Fi Specification (-W)
Wireless Standards: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20/40MHz Support
Modulation Mode: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power: 11b: 17??1.5dBm @ 11Mbps11g: 14??1.5dBm @ 54Mbps11n: 12.5??1.5dBm
Receive Sensitivity: 11b: -90dBm @ 11Mbps (Typical)11g: -75dBm @ 54Mpbs (Typical)11n: -74dBm (Typical)
Transmission Rate: 11b: 11Mbps11g: 54Mbps11n: up to 150Mbps
Wireless Range: 50m(depend on environment)
Protocols: 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM

General
Power Consumption: Max. 5 W
Impact Protection: IK08(-W model)/IK10(non -W model)
Weather Proof: IP66
IR Range: Up to 30m
Dimensions: 111 x 82 (4.4" x 3.2")
Weight: 500g (1.1 lbs)

NOTE:"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don??t support the 802.1X protocol.
