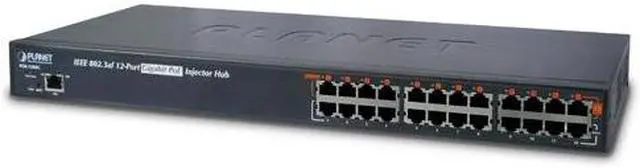

PLANET POE-1200G 12-Port Gigabit IEEE 802.3af Power over Ethernet Injector Hub

PLANET POE-1200G 12-Port Gigabit IEEE 802.3af Power over Ethernet Injector Hub
MPN:POE-1200G
UPC:653177261202

nterface "Data" Input Ports: 12x RJ-45 STP
"PoE (Data+Power)" Output Ports: 12x RJ-45 STP
Management Port: 1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX
Data Rate 10/100/1000Mbps
LED System: Power x 1 (Green)
ããããFAN Alert x 1(Green)
Management Port x 2: 10/100 (Orange / Green)
Per PoE Port: PoE in Use x 1 (Green)
Network Cable 10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
1000Base-T: 2-pair UTP Cat. 5e, 6 up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Dimension (W x D x H) 440 x 200 x 44 mm (1U height)
Weight 2.73kg
Power Requirement 100-240V AC, 50/60 Hz
Power Consumption 200 Watts max.
Cooling Fan x 1
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / Mid-Span PSE
PoE Power supply Type Mid-Span
PoE Power Output Per Port DC 48V 15.4 Watts
Power Pin Assignment 4/5(+), 7/8(-)
PoE Power Budget 190 Watts
Management
Management Interface Web, PLANET Smart Discovery Utility
PoE Management Power Limit by Priority and Total Limit
Per port power Enable / Disable
Power feeding priority
Current usage and status
Total power consumption
Per port power Schedule
Management Feature System / Management functions setup
Web firmware upgrade
SNMP Trap for alarm notification of events
Standards Conformance
Standards Compliance IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Environmental Specification
Operating Temperature: 0 ~ 50 Degree C
Relative Humidity: 5 ~ 95% (non-condensing)
Storage Temperature: -40 ~ 70 Degree C
Relative Humidity: 5 ~ 95% (non-condensing)
