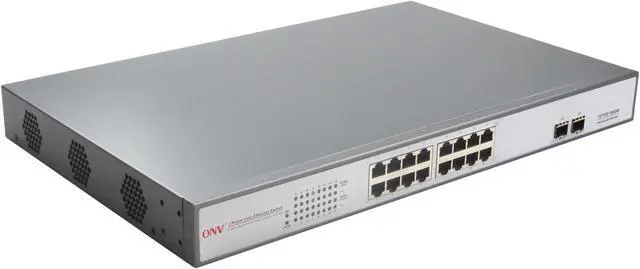

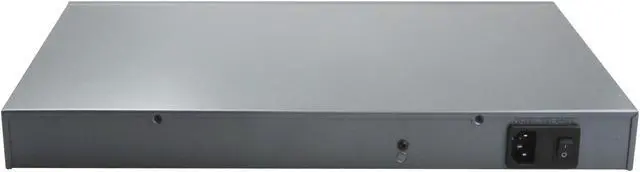

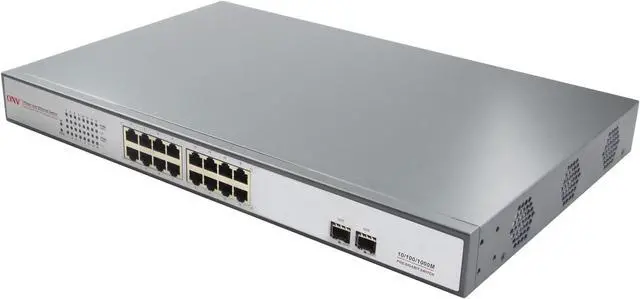

ONV-PoE33016PF-at 16 Gigabit PoE Ports +2 Gigabit SFP Fiber Ports Max 30W/Port

18-Port Gigabit PoE Switch with 16 Gigabit PoE Ports and 2 Gigabit Fiber Ports. IEEE 802.3at Standard 30W

Features:
?Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
?Port1 to Port16 compatible with IEEE802.3at standard power
?Supply (Maximum power of each port is 30W)
?16x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports
?Meets the standards of the IEEE 802.3at/ IEEE 802.3 10i and IEEE 802.3u standard
?The packet forwarding speed of the wire-speed port is 1.488Mbps
?Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
?All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
?1U Rack mounted design, easy to install and use
? Automatic adjustment, plug and play, no need software and protocol conversion

Ordering Information:
Product Model: ONV-PoE33016PF-at
Product Description: 18-Port gigabit PoE switch with 16 gigabit PoE ports and 2x gigabit SFP fiber ports; port1 to port16 supports POE IEEE 802.3af international standard, each port power is 30W, the total power is 440W
Ordering Note: The even number port is end-span (1/2+, 3/6- line pair) power supply, the odd number port is mid-span(4/5+, 7/8- line pair) power supply. Optical fiber mode is not included. SFP interface is optional.
