250W 26 Port Gigabit PoE Switch 10/100 /1000Mbps RJ45 PoE Gigabit SFP fiber port ONV-POE33024PF

Model:ONV-POE33024PFU
26-Port Full gigabit PoE switch. 24*10/100/1000M PoE Ports + 2*Gigabit Fiber Ports. IEEE 802.3af/at, Max PoE power output is 30W. Total power is 250W.

The 26-Port gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. It features with PoE (Power Over Ethernet) function through different power levels of PoE power supply, that is it can supply the 48V DC power to the PD remote devices (e.g. IP Phone, WLAN AP, Security, Bluetooth AP etc.) via a network cable, in order that realizing the power supply for remote PD devices. As the power supply PSE (Power Sourcing Equipment) side device, which supports the standard IEEE802.3af/at power standard

This cost-effective ONV-POE33024PFU is perfectly suitable for security surveillance/ small business/ home use. It comes with excellent lightning-proof capabilities and security features. The product adopts the standard rack metal housing design and is easy to install. ONV-PoE33024PFU is fully compliant with IEEE802.3af/ IEEE802.3 10BASE-T Ethernet/ IEEE802.3u 100BASE-TX fast Ethernet/ IEEE 802.3ab 1000BASE-T Ethernet ANSI/IEEE802.3NWay auto-negotiation and IEEE802.3x flow control. This ONV-PoE33024PFU comes with the PoE green power saving application mode.

Feature
?Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)

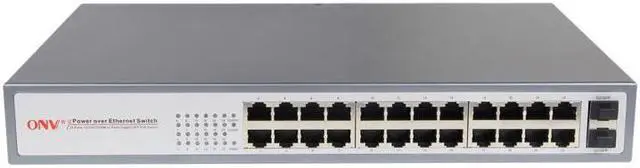

?24*10/100 /1000Mbps automatic adjustment RJ45 PoE ports + 2*Gigabit SFP fiber uplink ports
?Meet the standards of the IEEE 802.3af/ IEEE 802.3at/ IEEE 802.3u/ IEEE 802.3x/ IEEE 802.3ab standard
?The packet forwarding speed of the wire-speed port is 38.69Mbps
?Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)
?All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

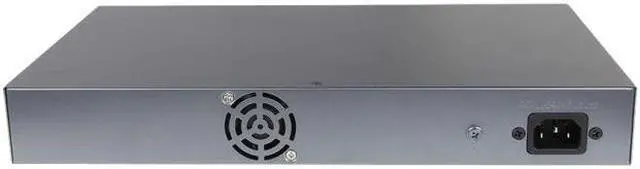

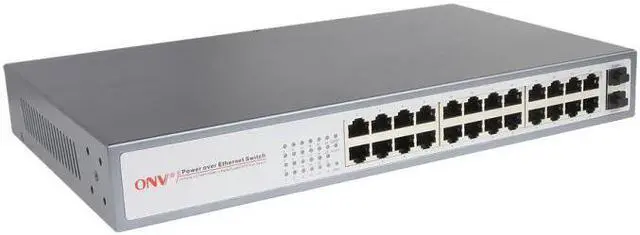

?1U Rack mounted design, easy to install and use
?Automatic adjustment, plug and play, no need software and protocol conversion

Target Industries
?HD monitor transmission and power supply
?Wireless AP layout transmission and power supply
?Network telephone transmission , intelligent house and home system
?Intelligent transportation supervisory system(ITS)
? High-speed Way supervisory/Tele-Communication System
? Security protection system, TV medical treatment
? Long-distance Muti-media Schooling, Campus monitoring
? Long-distance broadcast television transmission system
? High-building Security Protection, Military Tele-Com projects


Ordering Information
Product Model: ONV-POE33024PFU
Product Description: 26-Port Full gigabit PoE switch. 24*10/100/1000M PoE Ports + 2*Gigabit Fiber Ports. IEEE 802.3af/at, Max PoE power output is 30W. Total power is 250W.
Ordering Note: The even number port is end-span(1/2+, 3/6- line pair) power supply
