EverStar iPoE-35W56GDW-at Gigabit | 9-36V DC in | 56V 0.625A/35W DC PoE+ Out | DC-DC convertor + 802.3at PoE+ Mode A&B Injector for ePMP2000/3000, Force400/425, Q61, PoE Lighting | Black
- Wide range input 9-36VDC, output 56VDC, 35W, 802.3af/at compliant, PoE mode A&B, power over 4 pairs 1,2,4,5(+) 3,6,7,8(-)
- For ePMP2000/3000, Force 400/425, RAy 3, Q61 and the replacement of high c/p for N000045L056A, TP-DCDC-1248GD-HP, TP-DCDC-2448GD-HP

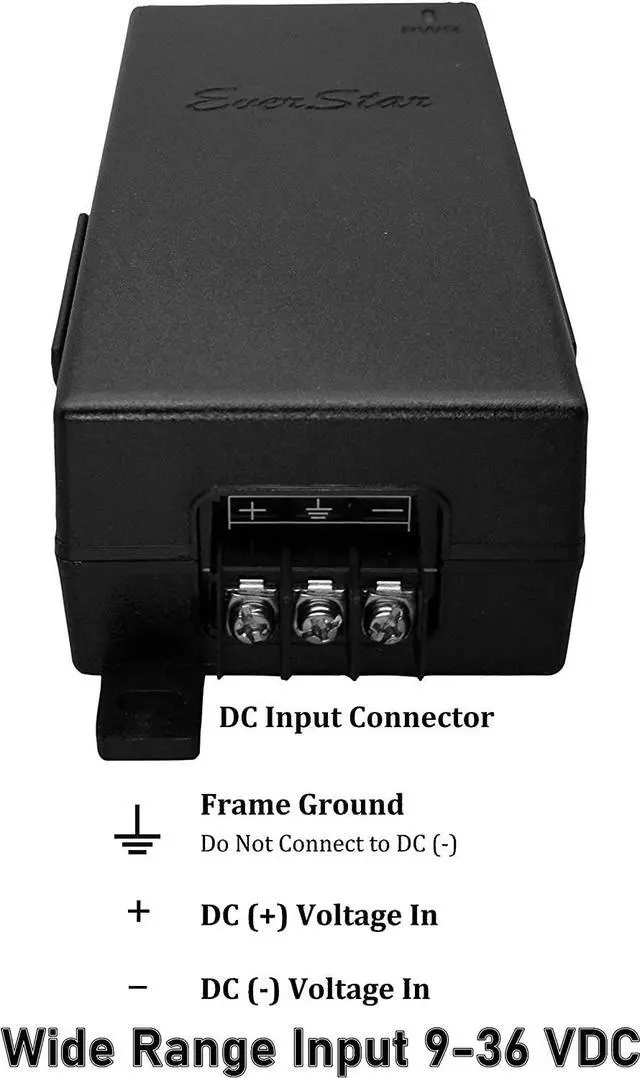

- 3 Pin Barrier terminal block DC input port
- 1 Gigabit Ethernet port input and 1 PoE Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds
- Working temperature : -30°C to 45°C
- Integrated Power over Ethernet (PoE+) Injector + DC to DC Convertor
- Short circuit, overvoltage and overcurrent protection
- Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together
- Flexible mounting options for desktop and wall mount
- Applications : 12V / 24V battery systems; wireless access points and client devices; IP phone and security camera systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Gigabit 12/24V(9-36V) DC in, 56VDC 802.3at PoE+ Out, 35W
Wide battery input 9-36VDC.
Supplies a Gigabit 802.3af/at PoE+ device up to 35W for ePMP 2/3000, Force 400/425, RAy 3, Q61
Flexible mounting options for desktop and wall mount.
Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together,making your wired system even more organized and clean.
State of the art design to build in the low ESR (Equivalent Series Resistance) aluminum capacitors. The low ESR aluminum capacitors have less power losses and internal heating problems as compared to regular capacitors, the battery cycles could be extended. Apart from lowering performance, high ESR values reduce the life of an aluminum electrolytic capacitor. In addition, a low ESR value allows a greater ripple current capacity to be achieved.
*Each round of full discharge and then full recharge is called battery cycle
iPoE-35W56GDW Features Wide Range DC Input PoE+ Output Installation Flexibility Unique Locking Design Low ESR aluminum capacitors built-in to extend the battery cycles*
Wide battery input 9-36VDC.
Supplies a Gigabit 802.3af/at PoE+ device up to 35W for ePMP 2/3000, Force 400/425, RAy 3, Q61
Flexible mounting options for desktop and wall mount.
Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together,making your wired system even more organized and clean.
State of the art design to build in the low ESR (Equivalent Series Resistance) aluminum capacitors. The low ESR aluminum capacitors have less power losses and internal heating problems as compared to regular capacitors, the battery cycles could be extended. Apart from lowering performance, high ESR values reduce the life of an aluminum electrolytic capacitor. In addition, a low ESR value allows a greater ripple current capacity to be achieved.
*Each round of full discharge and then full recharge is called battery cycle
iPoE-35W56GDW Features Wide Range DC Input PoE+ Output Installation Flexibility Unique Locking Design Low ESR aluminum capacitors built-in to extend the battery cycles*
