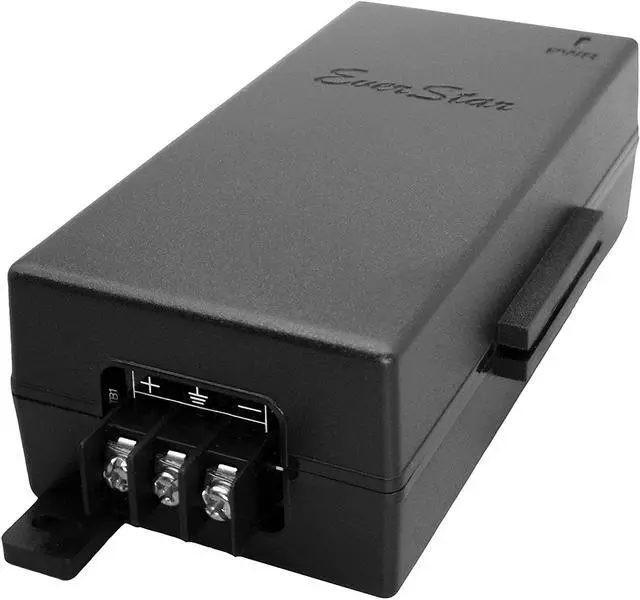

EverStar iPoE-17W48GDW-af Gigabit | 9-36V DC in | 48V/0.35A 17W DC PoE Out | DC-DC Converter + 802.3af Mode A&B PoE Injector | Black
- Wide range input 9-36VDC, output 48VDC, 17W, 802.3af compliant, PoE mode A&B, power over 4 pairs 1,2,4,5(+) 3,6,7,8(-),

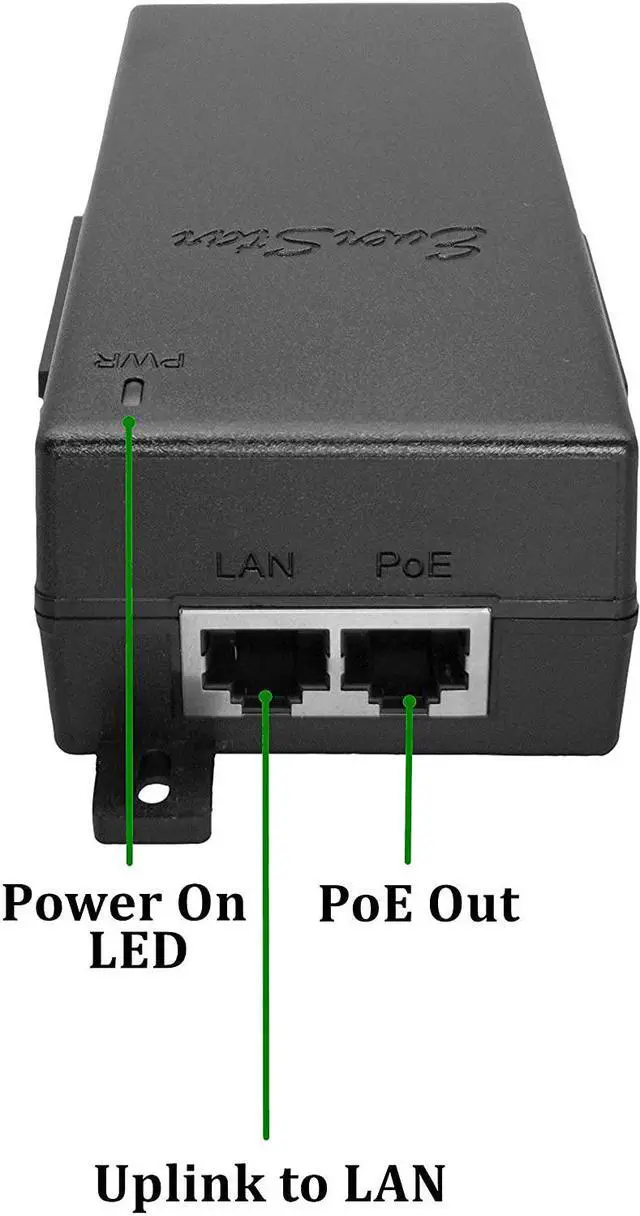

- 1 Gigabit Ethernet port input and 1 PoE Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds

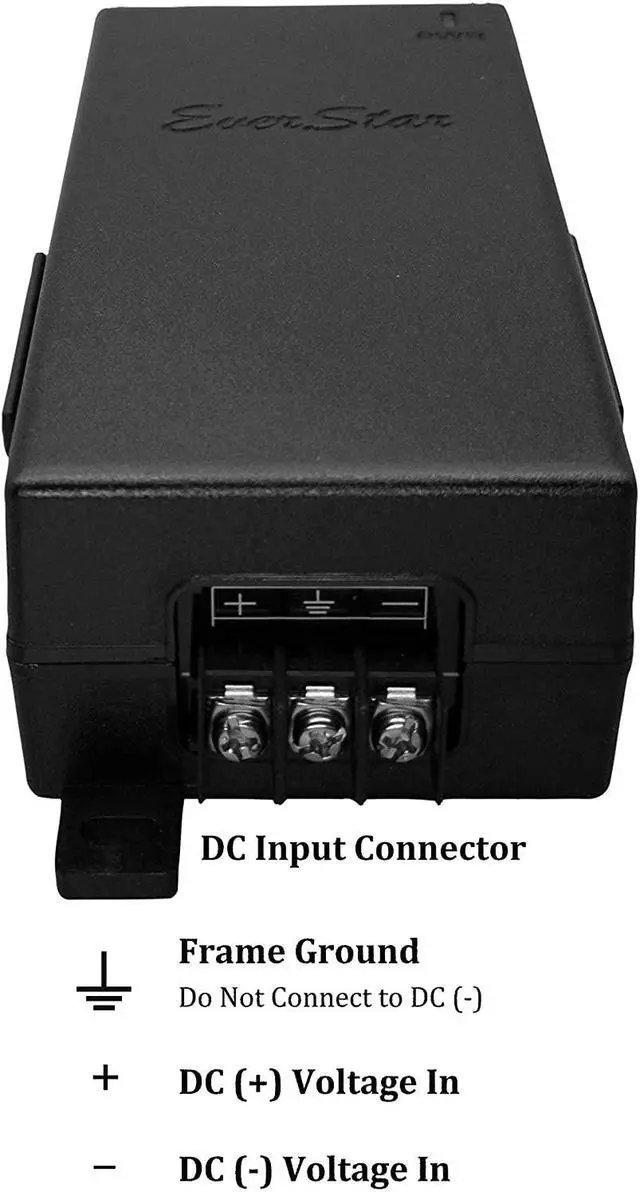

- 3 Pin Barrier terminal block DC input port
- Integrated Power over Ethernet (PoE) Injector + DC to DC Convertor
- Short circuit, overvoltage and overcurrent protection
- Working temperature : -30°C to 45°C
- Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together
- Flexible mounting options for desktop and wall mount

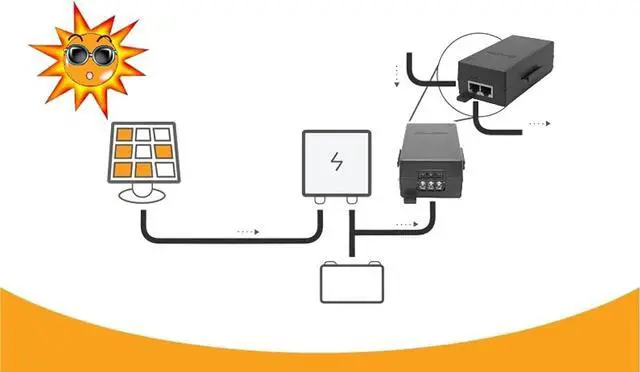

- Applications : 12V / 24V battery systems; wireless access points and client devices; IP phone and security camera systems
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Gigabit 12/24V (9-36) DC in, 48VDC 802.3af PoE Out, 17W
Wide battery input 9-36VDC.
Supplies a Gigabit 48V 802.3af device up to 17W for Unifi Mesh AP
Flexible mounting options for desktop and wall mount.
Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together,making your wired system even more organized and clean.
State of the art design to build in the low ESR (Equivalent Series Resistance) aluminum capacitors. The low ESR aluminum capacitors have less power losses and internal heating problems as compared to regular capacitors, the battery cycles could be extended. Apart from lowering performance, high ESR values reduce the life of an aluminum electrolytic capacitor. In addition, a low ESR value allows a greater ripple current capacity to be achieved.
*Each round of full discharge and then full recharge is called battery cycle
iPoE-17W48GDW-af Features Wide Range Input PoE Output Installation Flexibility Unique Locking Design Low ESR aluminum capacitors built-in to extend the battery cycles*
Wide battery input 9-36VDC.
Supplies a Gigabit 48V 802.3af device up to 17W for Unifi Mesh AP
Flexible mounting options for desktop and wall mount.
Features with unique tool-less interlocking snap slots on the side to hook 2 or more units together,making your wired system even more organized and clean.
State of the art design to build in the low ESR (Equivalent Series Resistance) aluminum capacitors. The low ESR aluminum capacitors have less power losses and internal heating problems as compared to regular capacitors, the battery cycles could be extended. Apart from lowering performance, high ESR values reduce the life of an aluminum electrolytic capacitor. In addition, a low ESR value allows a greater ripple current capacity to be achieved.
*Each round of full discharge and then full recharge is called battery cycle
iPoE-17W48GDW-af Features Wide Range Input PoE Output Installation Flexibility Unique Locking Design Low ESR aluminum capacitors built-in to extend the battery cycles*
