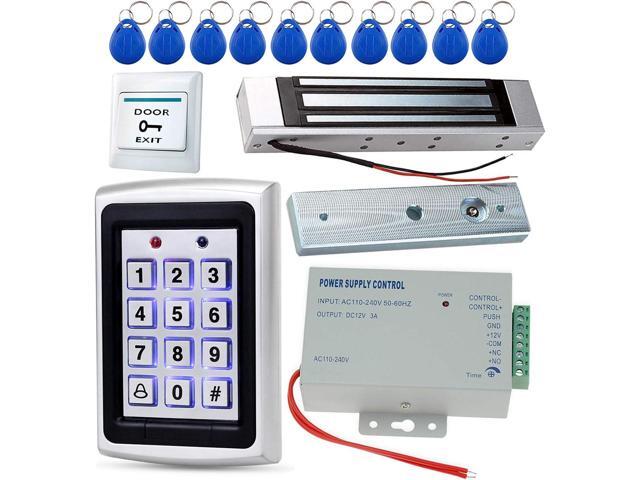

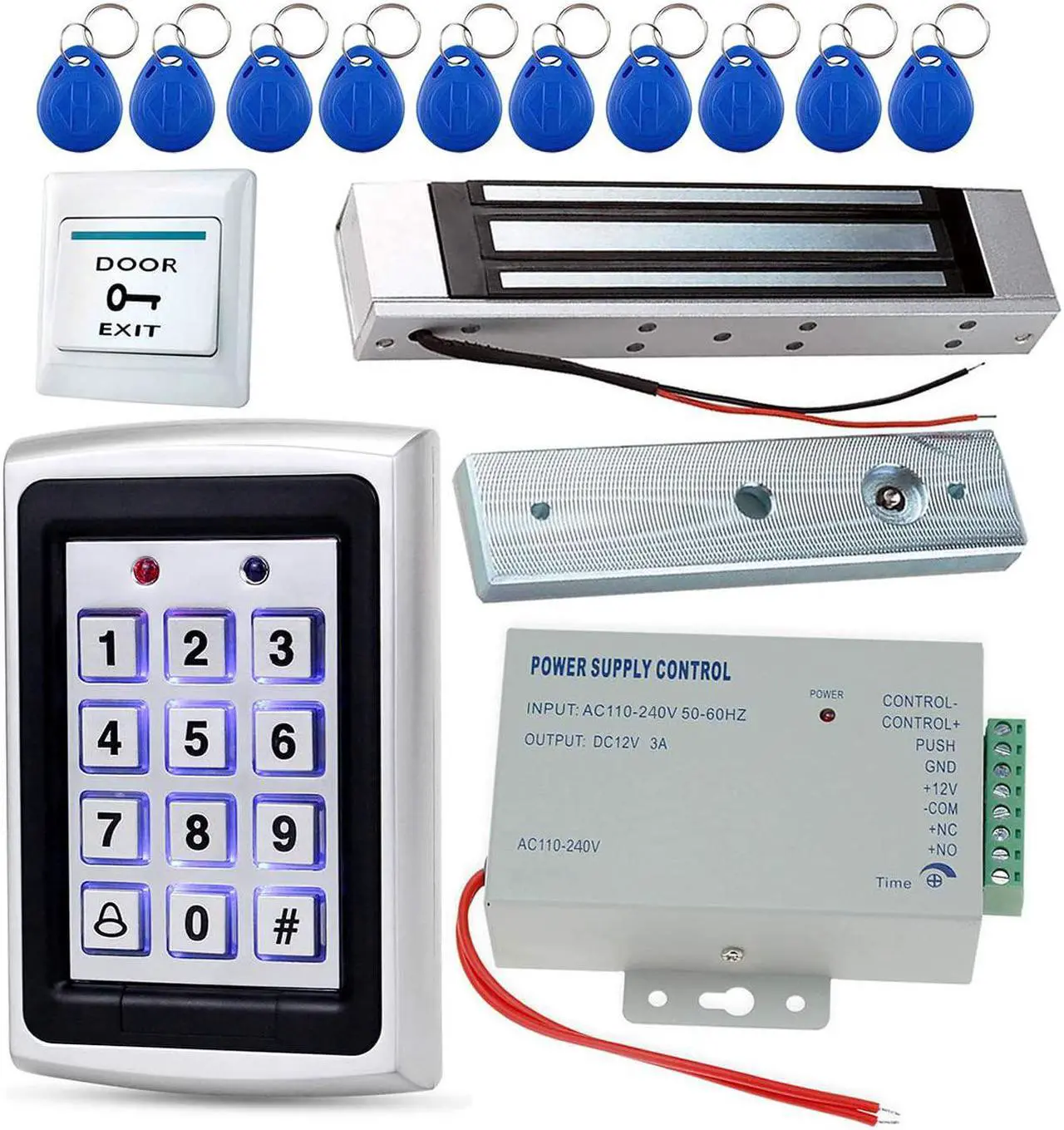

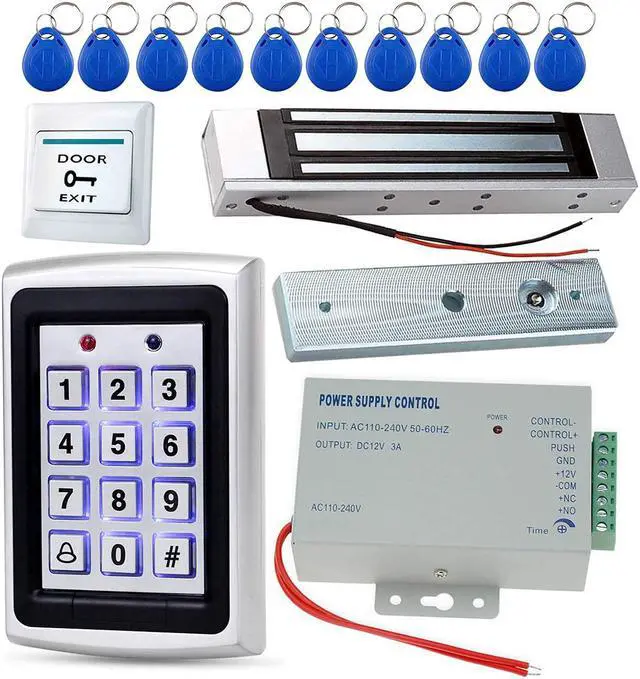

LEXI Complete Electric Door Lock Set, Metal Case RFID Keypad + 180KG/380lbs Magnetic Door Lock with Power Supply, Exit Button and 10pcs RFID Key fobs, for Wooden Door Metal Door Lock Glass Door
- 1.Complete electric door lock system. With 180kg/380lbs electric magnetic lock, super large holding force, your indoor safety is guaranteed.
- 2. Built-in RFID reader, non-contact RFID transponder technology.
- 3. Support 1000 users, 1000 access control cards, PIN, card + PIN.
- 4. Respond quickly within 1 second. Easy come & easy go.
- 5. Metal case keypad, easy to install, tough and durable.
+
+
Overview
Specs
Reviews

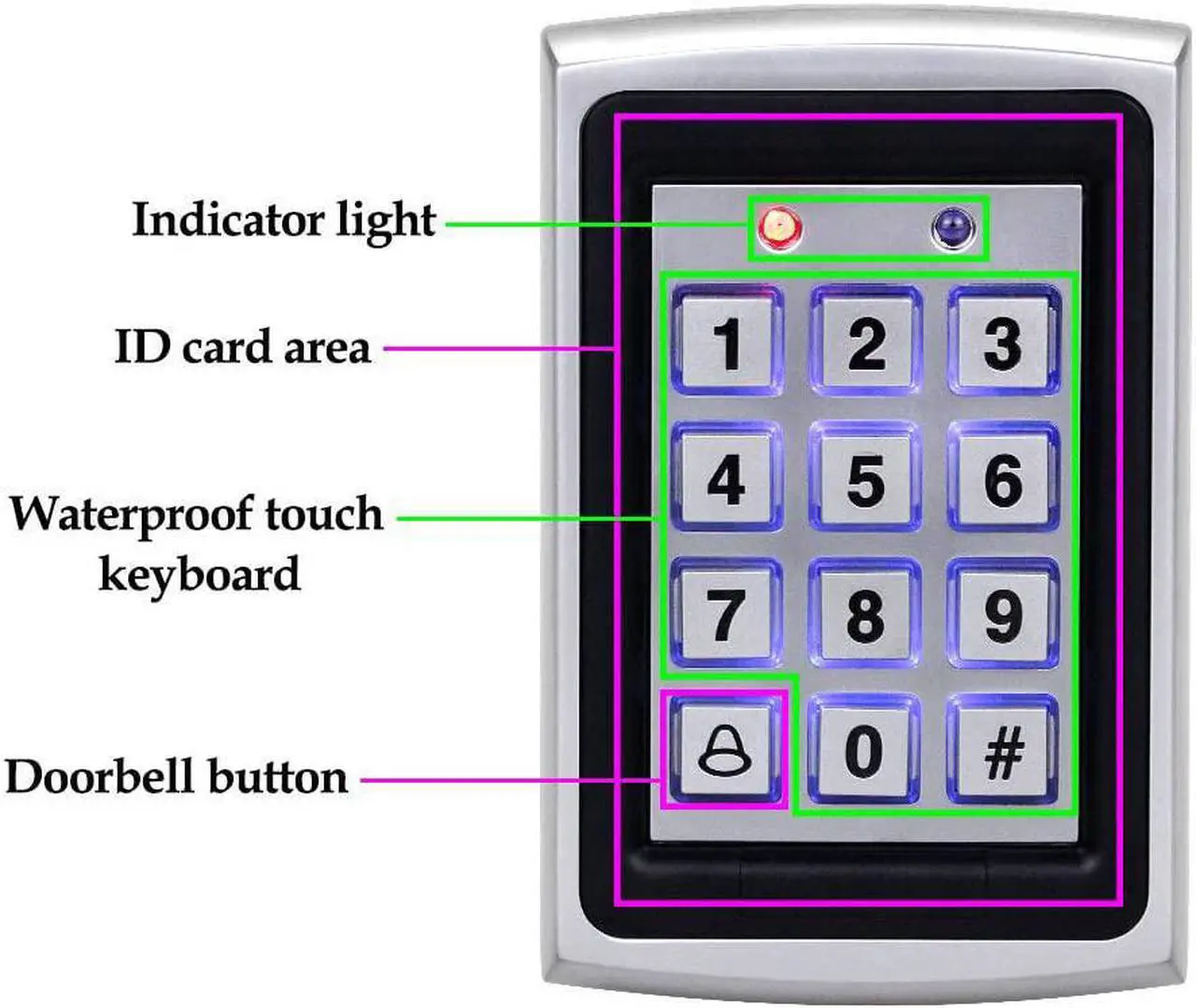

Access Controller:
1. 1000 standard user capacity. Support card, password, password plus card to open the door.
2.With door bell button, blue backlight keypad. With WG26 interface. Has 2 relays output.
3. With time delay, tamper alarm function. Support one-door.Does not need to connect to computer, item can works alone.
Product Specification:
User Capacity: 1000 user cards
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: 1.2A
Working Temperature: -30 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Dimension: 77*120*27mm(L/H/W)
Door Exit Button:
Material:Hard Plastic
Maximum Power Rating:36V DC 3A5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86*86MM ( L/W )
RFID Keyfobs:
125KHz rfid frequency key card, waterproof
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.

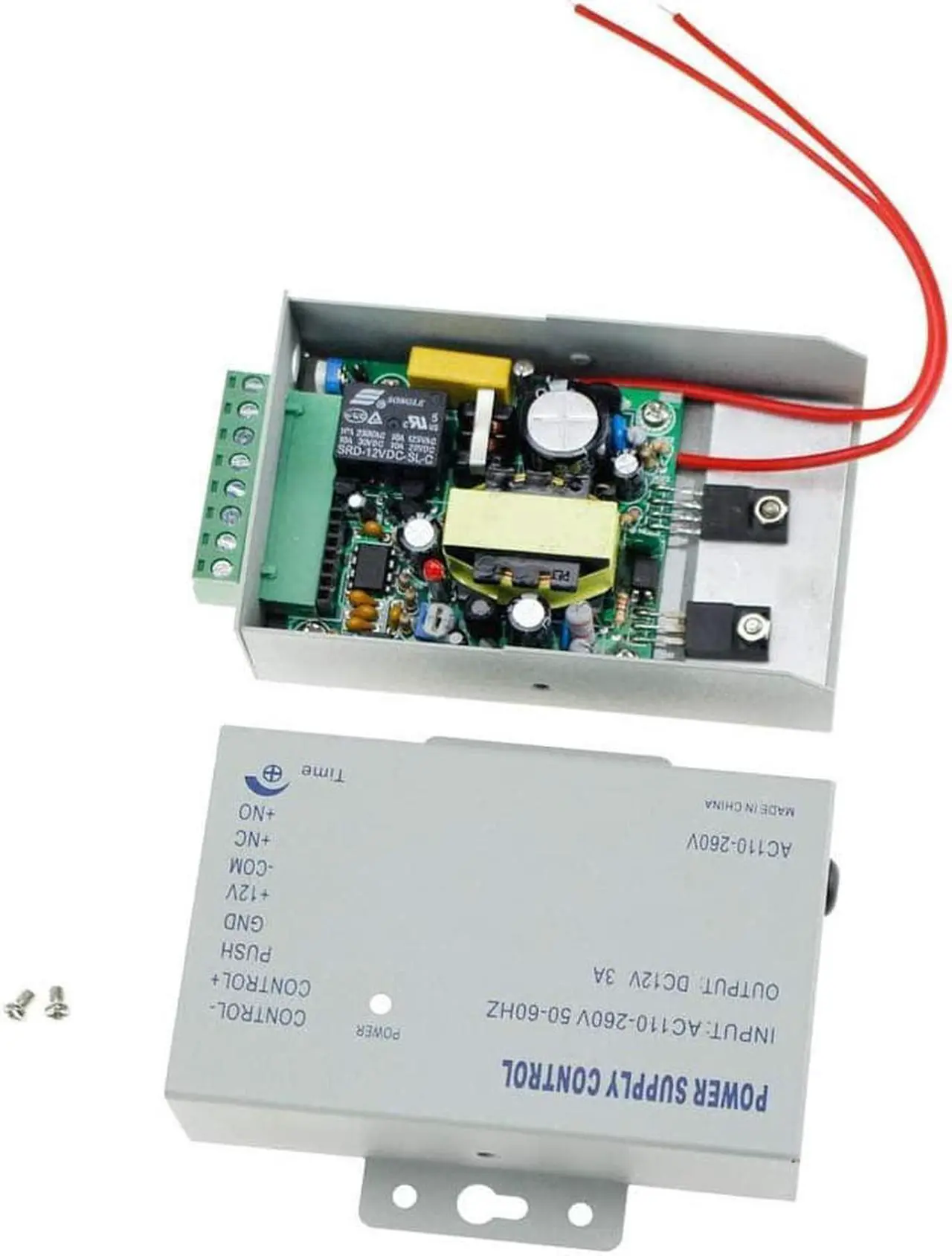

Power Supply:
1.AC input: Standard AC100V-240V 50-60HZ
2.DC output: Stabilivolt DC12V/ 3 A
3.Package Dimensions: 117 x 68 x 32mm
4.Remote control function:Yes
5.Dimension: 138X67X37mm( L/W/H )

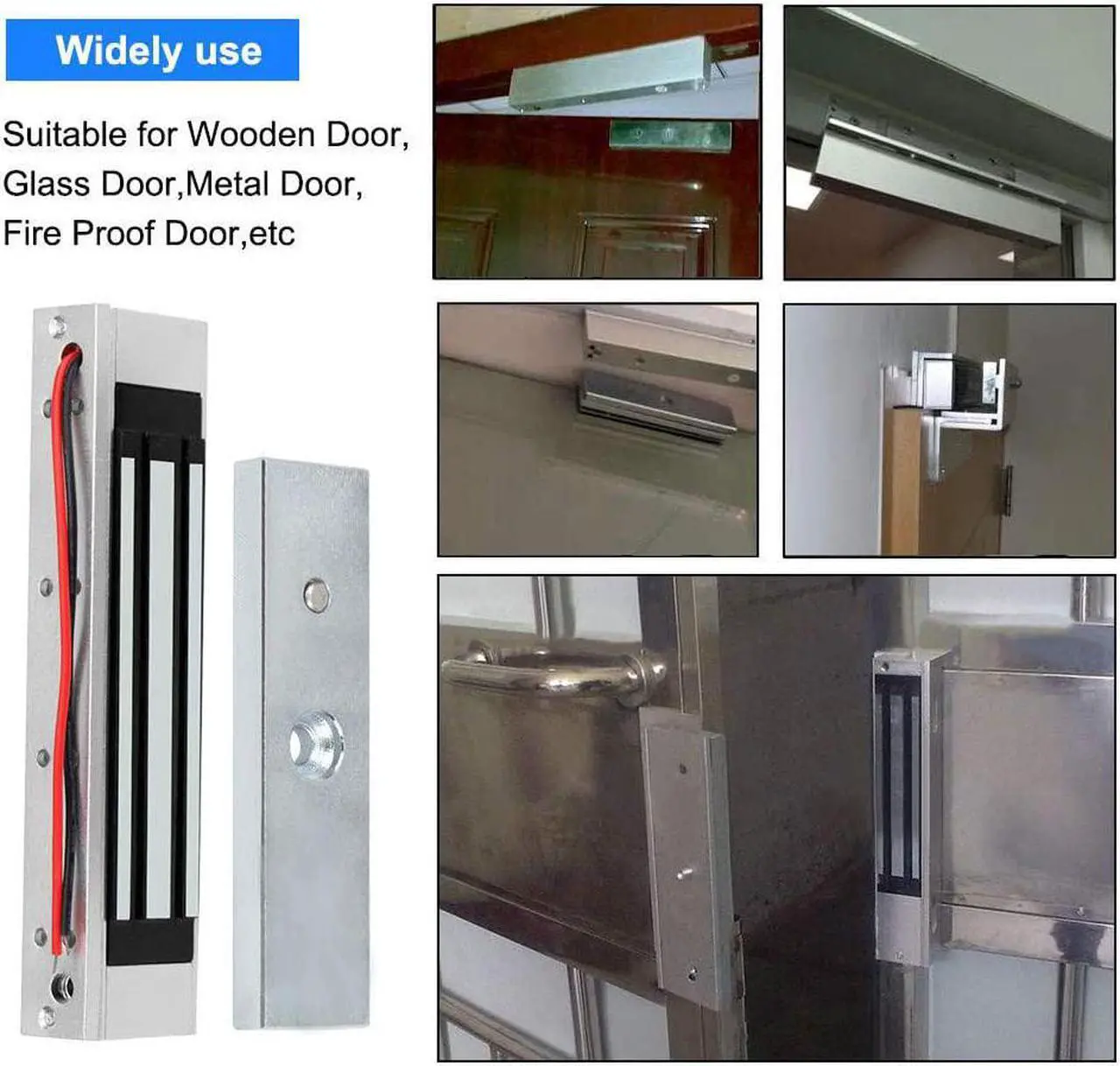

180KG Electric Magnetic Lock

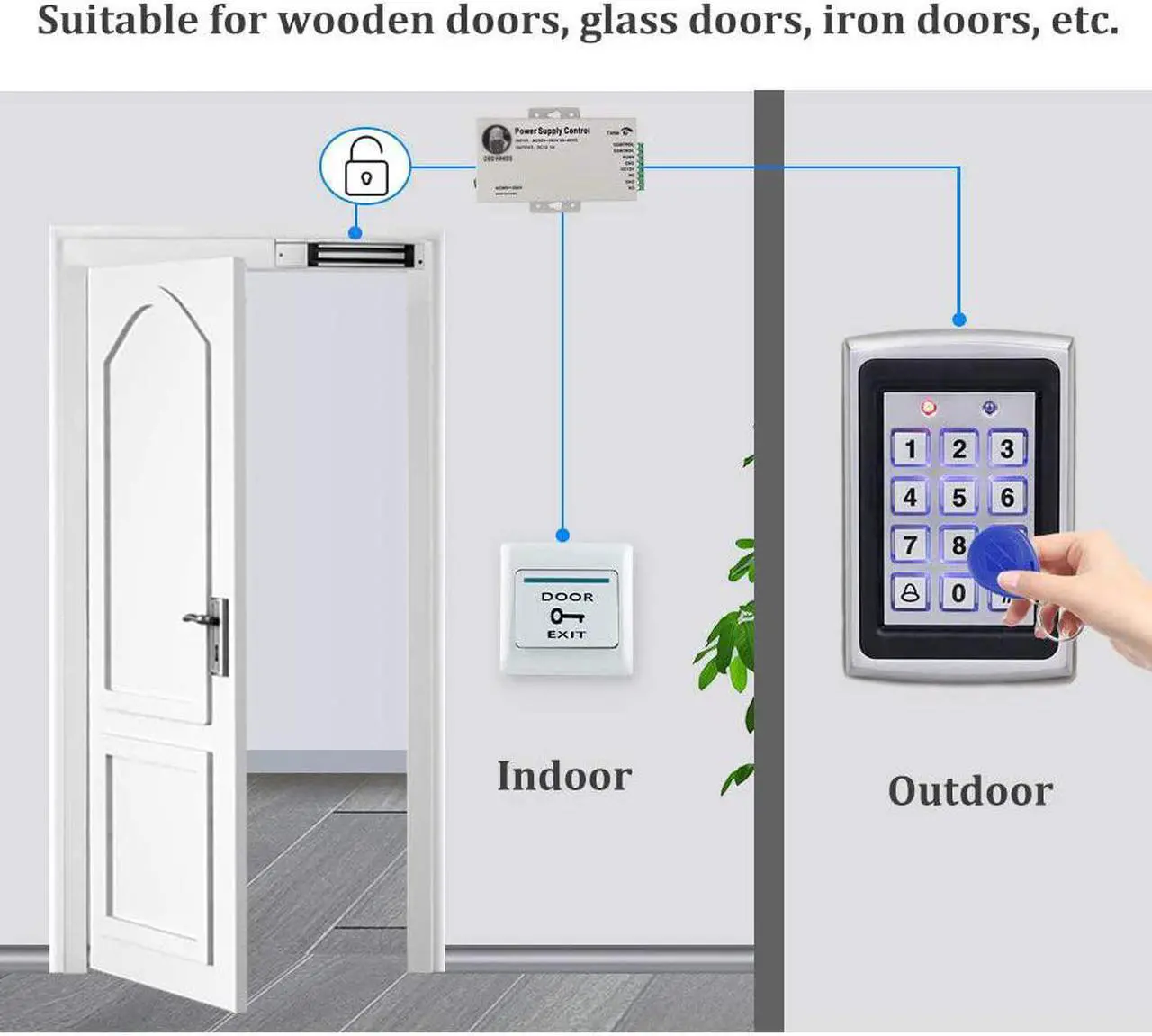

Suitable for wooden door, metal door, glass door
This item is magnetic lock that consists of an electromagnet and an armature plate used for access control door locks.
Holding Force: 180KG/350lbs
Material: Stainless steel,Anti-Residual Magnesium Designed
Working Voltage: DC12V
Performance Testing:1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Lock Way: NC Mode/ Fail Safe Mode: Locked when power on, unlocked when power off
1. 1000 standard user capacity. Support card, password, password plus card to open the door.
2.With door bell button, blue backlight keypad. With WG26 interface. Has 2 relays output.
3. With time delay, tamper alarm function. Support one-door.Does not need to connect to computer, item can works alone.
Product Specification:
User Capacity: 1000 user cards
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: 1.2A
Working Temperature: -30 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Dimension: 77*120*27mm(L/H/W)
Door Exit Button:
Material:Hard Plastic
Maximum Power Rating:36V DC 3A5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86*86MM ( L/W )
RFID Keyfobs:
125KHz rfid frequency key card, waterproof
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Power Supply:
1.AC input: Standard AC100V-240V 50-60HZ
2.DC output: Stabilivolt DC12V/ 3 A
3.Package Dimensions: 117 x 68 x 32mm
4.Remote control function:Yes
5.Dimension: 138X67X37mm( L/W/H )
180KG Electric Magnetic Lock
Suitable for wooden door, metal door, glass door
This item is magnetic lock that consists of an electromagnet and an armature plate used for access control door locks.
Holding Force: 180KG/350lbs
Material: Stainless steel,Anti-Residual Magnesium Designed
Working Voltage: DC12V
Performance Testing:1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Lock Way: NC Mode/ Fail Safe Mode: Locked when power on, unlocked when power off
