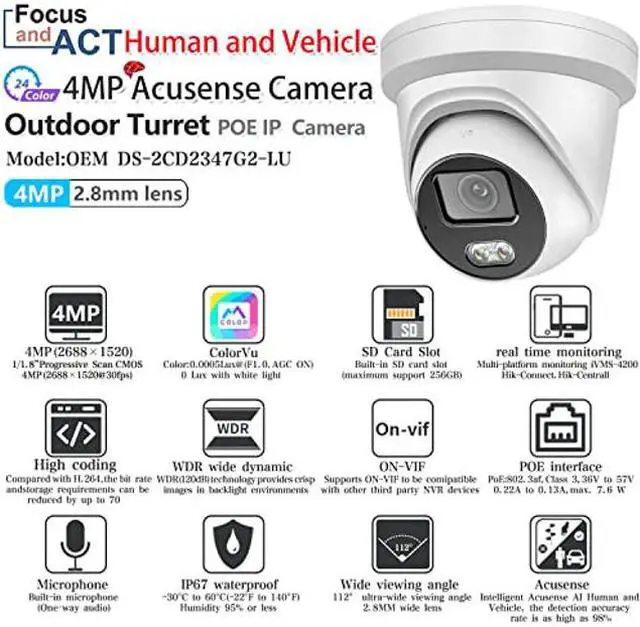

4MP ColorVu Fixed Turret
Network Camera OEM: DT347G2 Technical Parameters
Image Sensor: 1/ 1.8"P rogressive Scan CMOS Min.
Illumination Color:
Color: 0.0005L ux@(F 1.0, AGC ON), 0Lux with white light
Shutter Speed: 1/3s to 1/100, 000s Wide
Dynamic Range: 130dB
Day&Night: IR cut filter
Angle Adjustment:
Pan: 0deg to 360deg, tilt: 0deg to 75deg, rotate: 0deg to 360deg
Camera lens Lens Type: Fixed focal lens, 2.8
Lens Type&FOV: 2.8 mm, horizontal FOV 112deg, vertical FOV 61deg, diagonal FOV 134deg
DORI: 2.8 mm, D: 8m, O: 23 m, R: 11m, I: 2m Camera Illuminator Supplement
Light Type: White
Light White Light Range: 30m Video Max.
Resolution: 2688x1520 (4MP)
Main Stream:
50Hz: 25fps(2688x1520, 1920x1080, 1280x720)
60Hz: 30fps(2688x1520, 1920x1080, 1280x720)
Video Compression: Main
stream: H. 265/H. 264/H. 264+/H.
265+ - Sub-stream: H. 265/H.
264/MJPEG - Third stream: H. 265/H.
264 Network API: Open Network Video Interface(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Network Storage: MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in
required live view: IE 10+.
Plug-in free live view: Chrome 57.0 +, Firefox 52.0 +.
Local service: Chrome 57.0 +, Firefox 52.0 +
Image Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Auto,
Schedule SNR: >= 52 dB
ImageEnhancement: BLC, HLC, 3D DNR
Interface Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256GB
Built-in Microphone:
-U: Yes
Hardware Reset: Yes
Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception Deep Learning
Function Face Capture: Yes
Perimeter Protection: Line crossing detection, intrusion detection, region entrance detection, region exiting detection
