4 Port Very High Power (100W per Port) GigE Passive 4pair PoE Midspan Inj, 20-60VDC Wire Term in, 20-60V 1.8A PoE Out, PoE Pinout: 3,4,5,6V+;1,2,7,8V-, Shielded/Surge Prot, Incl DIN Rail Mount kit

Features

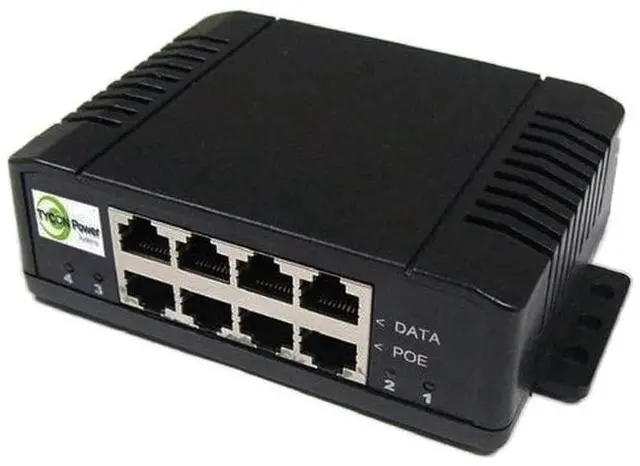

Very High Power, Gigabit 4 Port Midspan PoE Injector
Up to 1.8A per Individual Port
Universal PoE Voltage 20VDC to 60VDC.
Powers Passive PoE Devices using 4 pair power

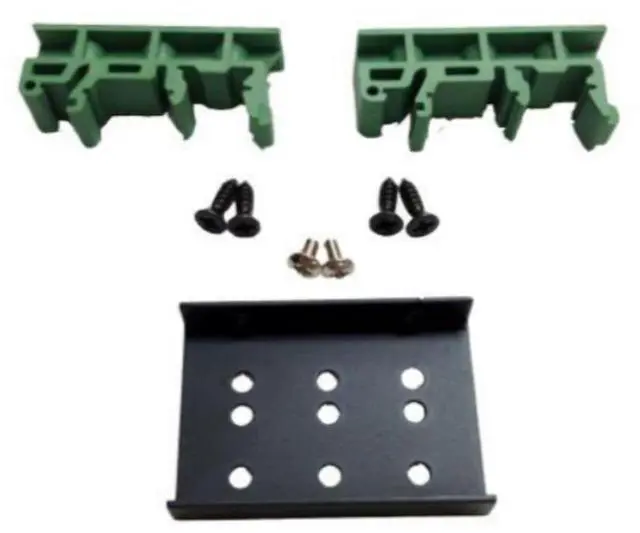

DIN Rail Mountable Includes DIN Rail adapters.
I.T.E. Power Supply, UL Listed

Applications
High PoE Wireless Access Points and Client Devices
High PoE Security Camera Systems
Power network devices from a central network room

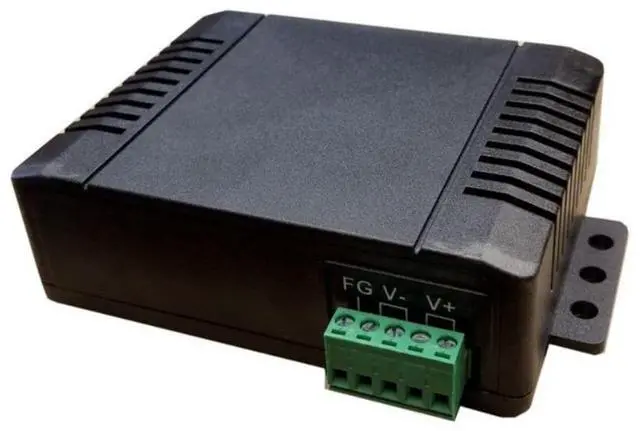

The TP-MS4G-VHP mid span PoE power sources are used for supplying PoE and data to multiple devices from a central location such as an operations room or equipment cabinet. The PoE devices feature a separate data-in port coupled with a data out/PoE port. The PoE function is considered 4 Pair Passive PoE which is sometimes referred to as High PoE. The units support Gigabit Ethernet and are backward compatible to 10/100MB. The Midspan features Universal Voltage (UniVolt) PoE outputs where the PoE voltage equals the input voltage. All ports will have the same PoE voltage. PoE DC Voltage (20V-60V) is supplied on pins 1,2 (V-), 3,6 (V+) and 4,5 (V+) and 7,8 (V-). The unit can accept + or voltage on input however the design is a non-isolated design. Maximum power output per port is 1.8A. The individual outputs are overcurrent, over/under voltage and short circuit protected. The midspan is DIN Rail mountable with the included DIN Rail brackets.
