eSunRC SH-RC24G3W RC WiFi Signal Booster 3000mW 2.4GHz 35dBm Wireless Signal Amplifier Repeater Extender, Ultralight 1.62oz (46g), for Drones, UAV, IP Camera, Routers

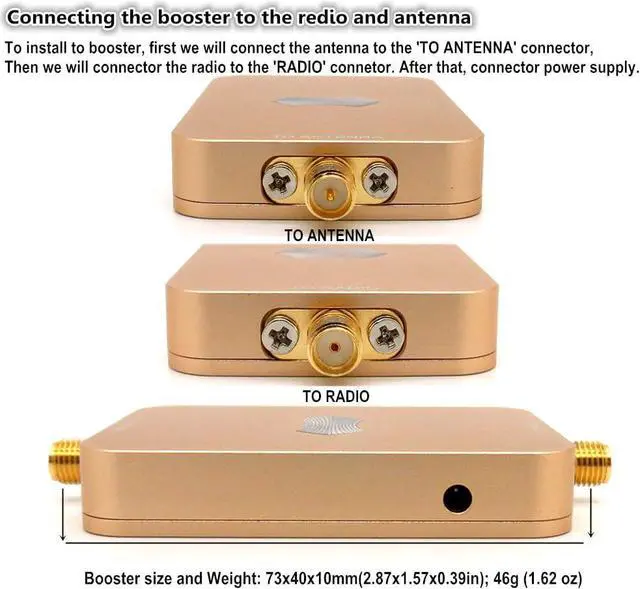

Operating range2400~2500MHzChannel width 20Mhz&40MhzSupported standardsIEEE 802.11b/g/nOperation mode Bi-directional, half-duplex, time division duplexConnector type SMAOutput power 3000mW (35dBm)Input power 0 ~ 20dBmTransmit gain 15 -18dBReceiver gain 12 dBNoise figure 3.5dB typicalSupported voltages 5V~16V/2A DCMaterial Cast aluminumBooster weight46g (1.62 oz)Booster size73 x 40 x 10mm (2.87x1.57x0.39in)Package weight 180g (6.35 oz)Package size:110 x 80 x 46cm (4.33x3.14x1.81in) Features:
2.4GHz wifi signal booster could Auto switch frequency,
3000mW real output power;
5-16V wide voltage range,support different power supply;
Aluminum-alloy case by CNC, anti-interference;
Designed for Drones, UAV, RC equipment.
Operating range : 2400~2500MHz
Bi-directional, half-duplex
time division duplex senses RF
carrier from transmitter and automatically switch receiving to transmitting mode
Package contents:
1 x SH-RC24G3W WiFi booste
1 x RG141 20cm cable SMA male to RP-SMA male
1 x 1.13mm(D) 30cm cable IPEX to SMA male
1 x DC 2.5 to 12V 5.5 adapter
1 x DC 2.5 to USB adapter
1 x DC 2.5 to JST adapter
1 x Mounting Velcro
1 x English user manual
[Compatible with any 2.4GHz wireless device]
Our product can support 2.4GHz wireless Router/AP/ wireless bridge/wireless network card; 2.4GHz wireless monitoring (NVR,DVR);2.4GHz wireless microphone,RC drones,FPV device etc.
Application Scene:
For UAV,Routers,IP cameras, R/C helicopters, planes and cars,Walkie talkies,ZigBee, Robot...
For House, Office,Hotels,Supermarkets, Hospitals,Parking Spaces...
For WiFi Solution & Project : WiFi Hotspot Solutions,Access points,Smart home systems, Smart city IOT, RC Drones Platform,security camera system ...
1. [Simply plug and play] Extend the range of your wireless network with the Wifi Booster Amplifier. Plug and play connections,no software, no configuration and virtually no setup of software.
2. About the input power: (output power of the device = input power of the amplifier), Make sure that input power of the amplifier be within the acceptable range that wifi booster device supports (for example, typically suggested to be about 15 dB.).
Regarding use of wifi booster device, some notes are shared in advance.
1) IMPORTANT: Make sure that the input power level is within the acceptable signal power range that the Wi-Fi booster device supports.
When users decide to use wifi boosters on respective applications, pay attention to power of input signal of booster: If too weak, then booster is not triggered and no boosting performance exists (even weaker); instead, if over high, output will be over-high and saturated and boosting performance will also naturally be negatively impacted.
2) Make sure that power supply to booster device is matching.
3) Cable connection is smooth (avoid connection of FEMALE port to another FEMALE port at port connection).
4) Also, indicator light will be useful to make some simple judge at installation.
5) If devices are installed outdoors, it will also be important to protect the installation from rain/water and lightning strike, and other bad weather impacts.
SH-RC24G3W WiFi booste; RG141 20cm cable SMA male to RP-SMA male; 1.13mm(D) 30cm cable IPEX to SMA male; DC 2.5 to 12V 5.5 adapter; DC 2.5 to USB adapter; DC 2.5 to JST adapter; Mounting Velcro; English user manual
