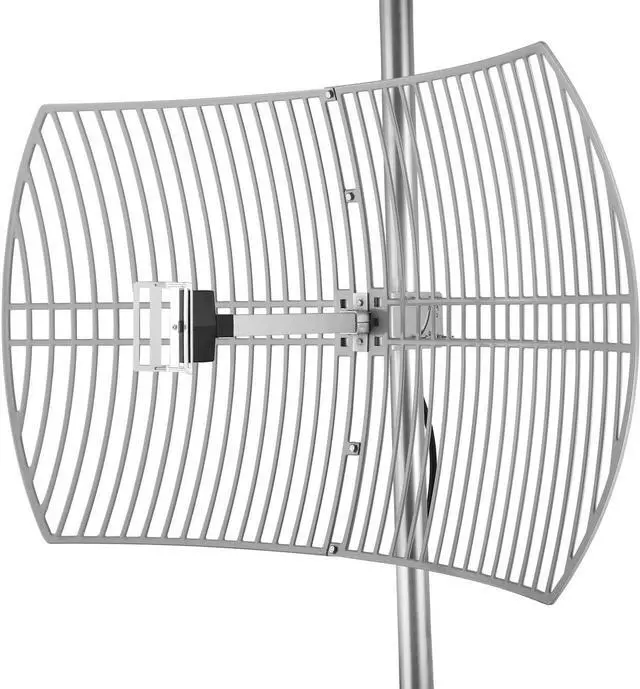

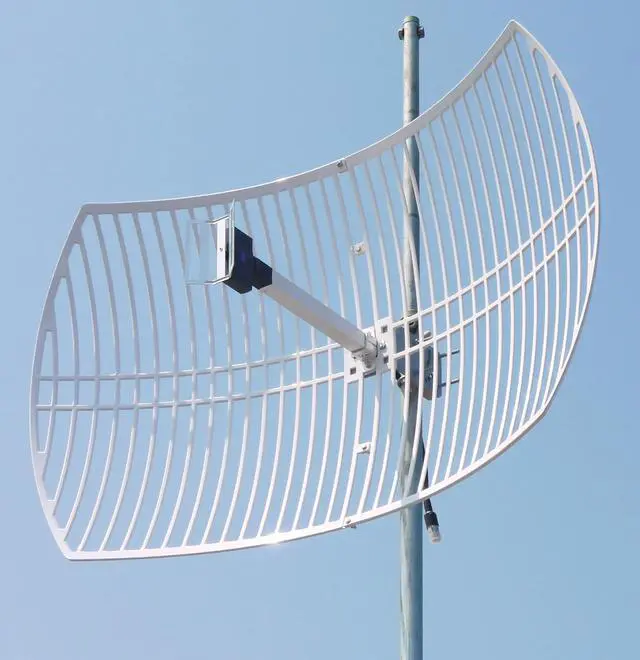

Alfa Weatherproof 2.4GHz 24dBi High Performance Die Cast Reflector Grid Wireless LAN Antenna - For 802.11b,g,N Wireless Wi-Fi
- Outdoor grid type antenna reflector For long-range wireless data transmissions
- 2.4 GHz operating frequency 24 dBi gain Comes with mounting hardware Applications
- Outdoor High Gain 24 dbi Antenna, N female connector
- Can be used verticially or horizonally, mounting kits included.
- Weather proof design, suitable for all weather conditions
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Applications
* 2.4GHz ISM Band
* IEEE 802.11b, 802.11g, 802.11n Wireless LAN
* Wifi Systems
* Long-Range Directional Applications
* Point to Point Systems
* Point to Multi-Poiint Systems
* Wireless Bridges
* Backhaul Applications
* Wireless Video Systems
Features
* Superior performance
* Die Cast aluminum construction
* UV stable light gray powder coat finish
* All weather operation

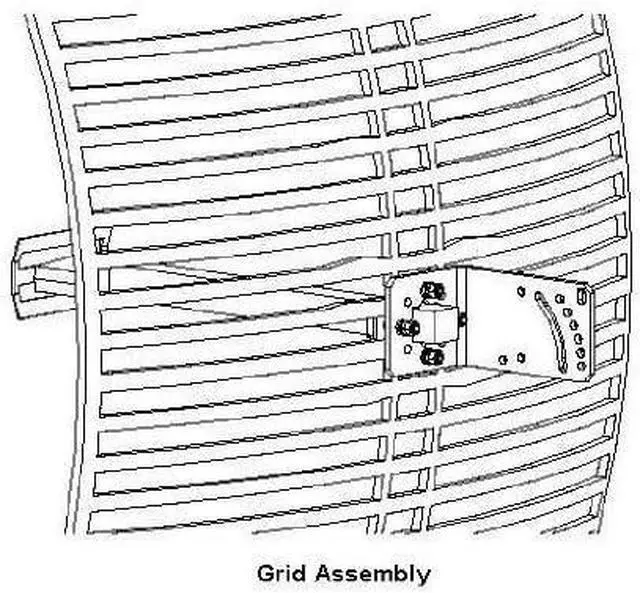

* Easy to assemble

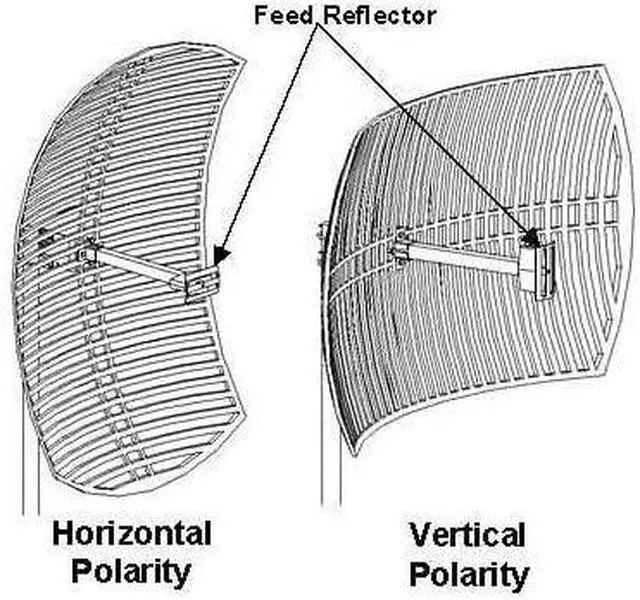

* Installed for vertical or horizontal polarization

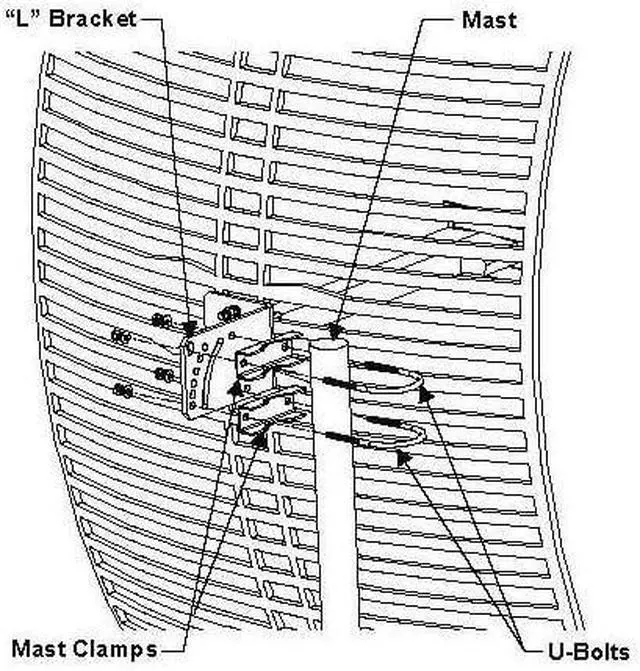

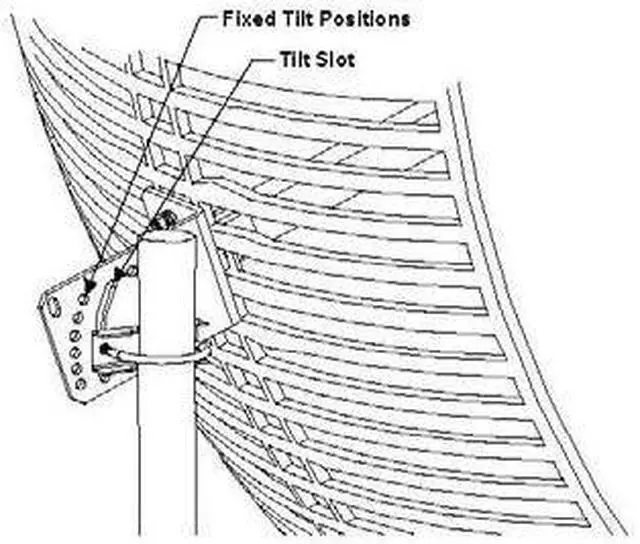

* Support Pan and Tilt adjustable antenna direction mast mount bracket
* RoHS Compliant
Model AGA-2424
Frequency: 2.4-2.5GHz
Gain: 24dBi
Polarization: Vertical or Horizontal
Power: Handling 50 Watts

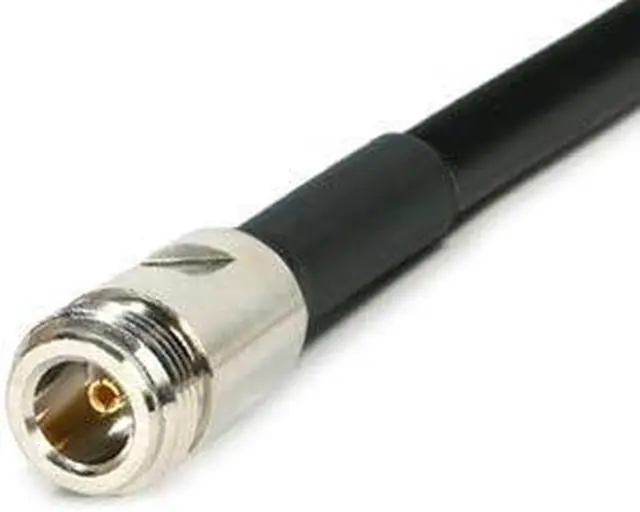

Connector: N Female
Dimension: 1000*600 mm
Mounting: 31.8 ~ 50.8 mm ( 1.25 ~2 inch )
Weight: (W/ Mounting Bracket) 3.62kg
* 2.4GHz ISM Band
* IEEE 802.11b, 802.11g, 802.11n Wireless LAN
* Wifi Systems
* Long-Range Directional Applications
* Point to Point Systems
* Point to Multi-Poiint Systems
* Wireless Bridges
* Backhaul Applications
* Wireless Video Systems
Features
* Superior performance
* Die Cast aluminum construction
* UV stable light gray powder coat finish
* All weather operation
* Easy to assemble
* Installed for vertical or horizontal polarization
* Support Pan and Tilt adjustable antenna direction mast mount bracket
* RoHS Compliant
Model AGA-2424
Frequency: 2.4-2.5GHz
Gain: 24dBi
Polarization: Vertical or Horizontal
Power: Handling 50 Watts
Connector: N Female
Dimension: 1000*600 mm
Mounting: 31.8 ~ 50.8 mm ( 1.25 ~2 inch )
Weight: (W/ Mounting Bracket) 3.62kg
