Network Switch 12Port Industrial Gigabit Ethernet with 8 Port POE 4 Port SFP 240W Din Rail Mounted IP40 for Outdoor Use
- PORT: 8 POE 10/100/1000Mbps network ports with POE AT 30W, 4 SFP1000M fiber ports ( WITHOUT SFPS and POWER ADAPTER).
- POE STANDARD: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.
- REDUNDANT POWER: The 8 ports industrial POE switch has dual redundant power inputs with overload current protection (power supply sold separately and require one 48VDC5A power adapter)
- EXTREME TEMPERATURE SWITCH: The metal hardened IP40 rated industrial switch POE is equipped with a rugged IP40 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 75 °C (- 40 - 167 °F)) for harsh environments
- WHAT YOU GET: 1pc 8port outdoor DIN-Rail industrial POE+ switch (without SFP module, without power adapter), 1pc user manual, and lifetime technical support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

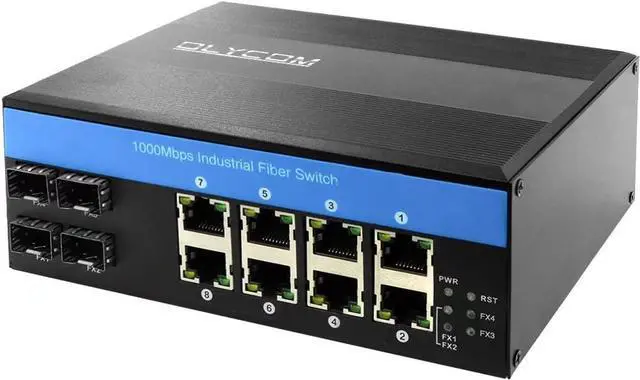

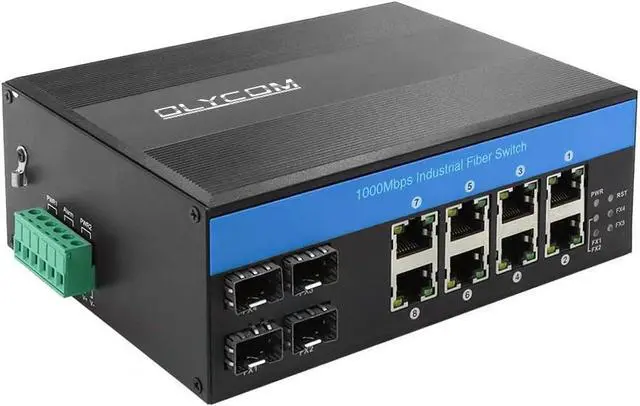

IM-FP488GE series is the 10/100/1000 Mbps network switch 12 port, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 to + 75 , meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Package List:
- 1pc network switch 12port with POE for outdoor
- 1pc User Manual
- Removable Terminal Block
The network switch 12 port is 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.

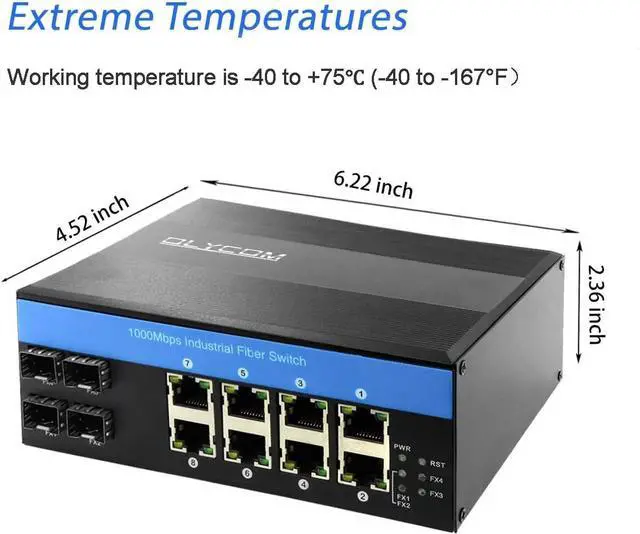

The 12 port industrial network switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial outdoor network switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product Name12port network switch with POE for outdoorProduct No.IM-FP488GEPort4x1000Base-FX SFP fiber port8x10/100/1000Base-T RJ45 portPOE StandardAF/AT (15.4W/30W) Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size15.8 x 11.5 x 6cm (6.2x4.5x2.4in)Product Weight0.8Kg(1.76 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
Package List:
- 1pc network switch 12port with POE for outdoor
- 1pc User Manual
- Removable Terminal Block
The network switch 12 port is 4KV power port surge protection and 2KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted network system.
The 12 port industrial network switches are designed with industrial operating temperatures ranging from -40ºC to 75ºC to pass through dangerous environmental.
The industrial outdoor network switch supports a dual power supply which input voltage is 48-52VDC (Sold without a power adapter and need to order separately). Support reverse connection.
Easy to use with Din-rail mounted and save space and time. ( Sold without din rail mount and need to order separately). The din rail switch aslo can be customized to be desktop.
Product Name12port network switch with POE for outdoorProduct No.IM-FP488GEPort4x1000Base-FX SFP fiber port8x10/100/1000Base-T RJ45 portPOE StandardAF/AT (15.4W/30W) Input Power48-52VDC ( Sold without a power adapter), redundant power supplyPower TerminalPhoenix terminalShellIP40 protection grade, metal shellMount TypeDin-RailWorking Temperature-4075-40167°F Product Size15.8 x 11.5 x 6cm (6.2x4.5x2.4in)Product Weight0.8Kg(1.76 lb)Industry StandardsEMIFCC Part 15 Subpart B Class AEN 55022 Class A EMSEN 61000-4-2 (ESD) Level 3EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3EN 61000-4-8 Traffic ControlNEMA-TS2 VibrationIEC 60068-2-6 FreefallIEC 60068-2-32 ShockIEC 60068-2-27 Rail TrafficEN 50121-4 Lightning Protection Industrial Operating Temperature Dual Power Supply Din-rail Mounted Specification
