Solar Battery Camera Specifications
Camera Image Sensor 1/2.7 inch, 3Megapixel CMOS
Effective Pixels 2304*1296
Lens & FOV(H/V/D) Union T3122-W11, 3.16mm @F1.6, 112°/60°/132°
Min. illumination "Color [email protected] Black and White [email protected]
Day/Night Auto (ICR)/ Color/ Black and White
Floodlight Distance "3 pcs floodlights, 40lum Floodlight Visibility up to 8m
IR Distance "3pcs 850nm IR LEDs Night Visibility up to 8m
Network Alarm Trigger PIR Detection /Human Detection
Wireless Security 64/128 bit WPA/WPA2, WPA-PSK/WPA2-PSK
Communication Protocol HTTP, DHCP, DNS, TCP/IP
Interface Protocol Private
Wireless 2.4GHz band WIFI6 (IEEE802.11b/g/n/ax)+Bluetooth
Mobile Phone OS iOS 9 or later, Android 5 or later
Security AES128
Video & Audio Compression H.264/H.265
Bit Rate 32Kbps-2Mbps
Frame Rate 15fps
Audio Input/Output Built-in Mic / Speaker

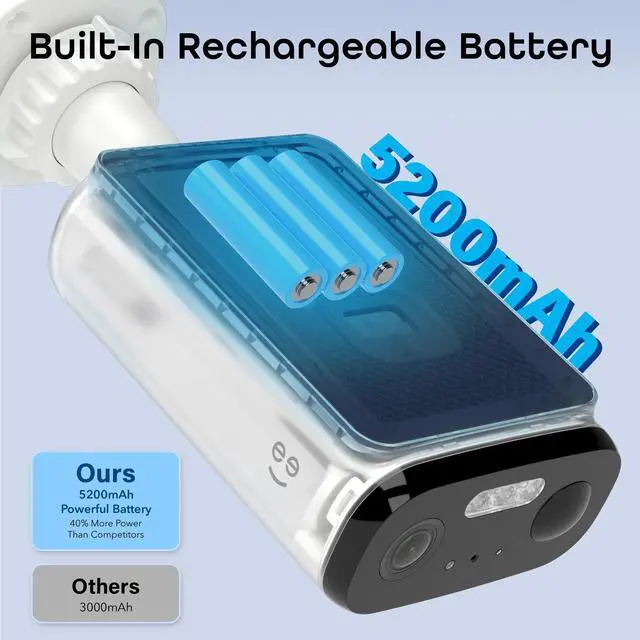

Battery & PIR Battery Capacity Total 5200mAh with 2pcs 18650 rechargeable batteries; 7200mah battery capacity is optional (For L5102)
Stand-by Current 200-900uA (the value changed according with Network environment)
Working Current 270mA average (IR and Floodlight OFF)
Stand-by Time 12months without any sunshine and never been triggered; 8months for F51020
Working Time 3.5 months without any sunshine if triggered 20 times per day (10 times in the day and 10 times in the night )
PIR Angle 120° horizontal
PIR Detection Range Max. 8m
Local Storage TF Card Max. 512G
Value-Added Service Cloud Storage Subscription Optional
Amazon Alexa Optional
Google Assistant Optional

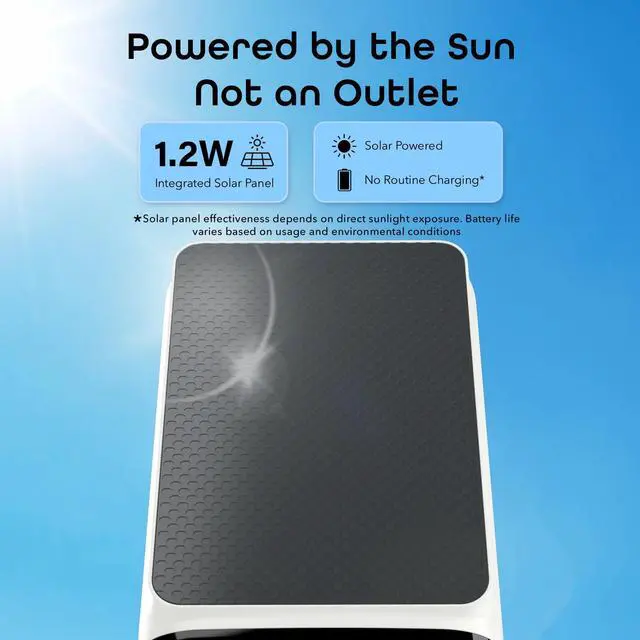

General Solar Panel Max. 1.2W solar panel with Integration design of structure
Button & Connector 1 button for On-off, 1 button for Reset, 1 Type-C charging
Operating Temperature -20 to +50

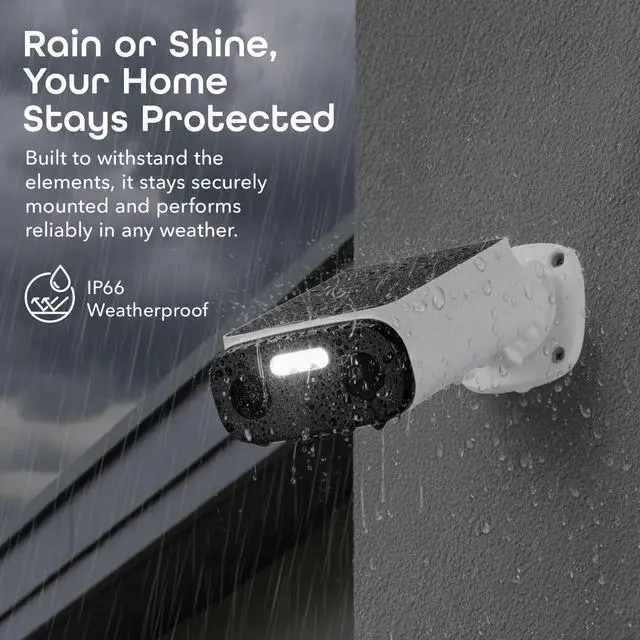

IP Rating IP66
Power Supply Optional, DC5V/1A
Power Consumption Max. 3W (IR on)
Dimension 128.5mm(L)*84mm(W)*42mm(H)
AItem weight 420g, TBD
