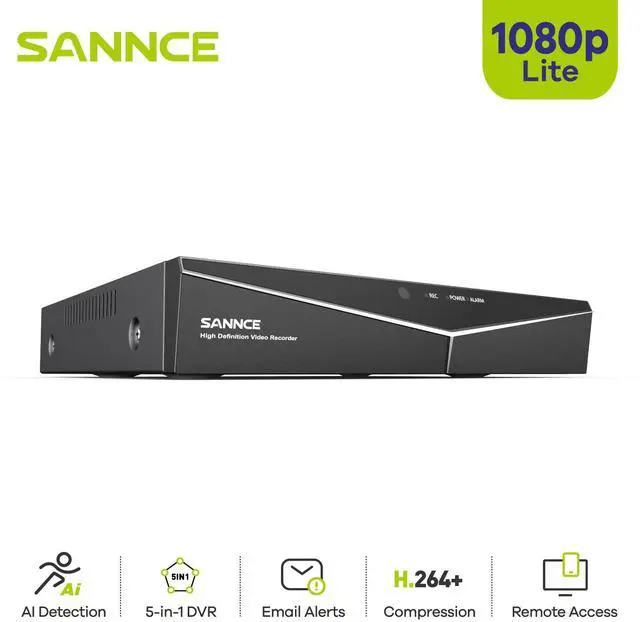

Description:
. Support 4CH 1080N definition encoding
. Support AHD, TVI, CVI, CVBS, IP video input
. HDMI/VGA simultaneous video output
. 1 SATA (Up to 8TB)
. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
. Automatic networking support, a key to add equipment
. Support alarm information push to phone
. Support remote access, support ARSP
. Mobile phone remote monitoring (iOS, Android)
. Support Multi browser access, VMS PC client"
Video & Audio:
Codec: H. 264+
Video input: 4*BNC
HDMI output: 1*HDMI (MAX: 1080P)
VGA output: 1*VGA (MAX: 1080P)
Audio I/O: 1/1
Encode: 4*1080N@15fps
Decode: 4*1080N@15fps
Multi-mode: Analog: 4*1080N@15fps;
Hybird: 4*1080N@15fps (analog) +2*1080P
IP: 8*1080P; 4*5MP
Playback: 4CH (Analog mode)
Compression: G. 711a
Intercom: Support
Hard Drive:
HDD: 1*SATA interface
HDD Capacity: Up to 8TB Capacity
Management:
Record mode: Manual>Motion detection>Schedule
Inquire mode: Inquire by Time/Calendar/Event/Channel
Storage mode: Sata HDD
Backup: Network, USB storage
General:
Power supply: 12V/2A
Consumption: <10W(Without HDD)
Temperature: 0 - + 55
Humidity: 10% -90% RH
Dimension: 255 (L) * 236mm (W) * 44mm (H)
Weight: Around 1KG
