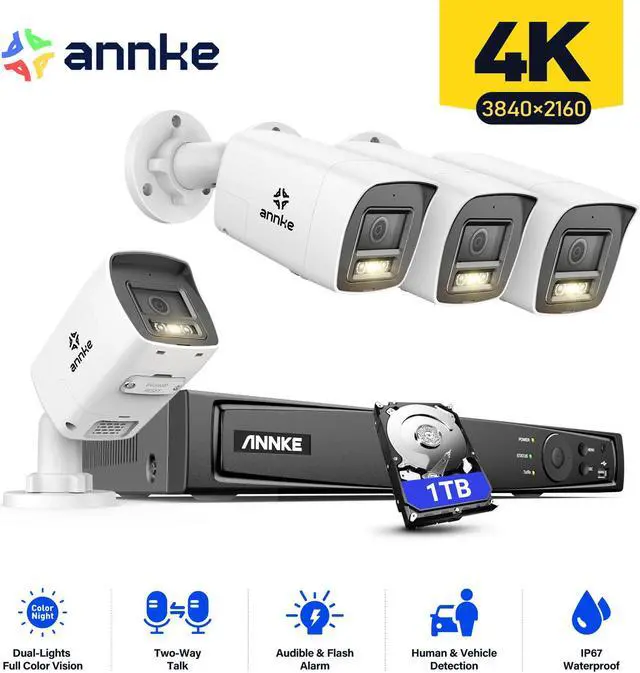

ANNKE 8CH H.265+ 4K Outdoor PoE Security Camera System, 12MP NVR and 4X 8MP Outdoor Bullet IP Cam, Two Way Audio, 4mm Lens, IP67, Smart Dual Light, Built-in Mic, AI Human/Vehicle Detection, 1TB HDD
- "Best 4K Def. in 16:9 Image Scale: The 1/2.4"" progressive scan BSI CMOS image sensor delivers 4K resolution (3840*2160), not only bringing clarity image quality with finer details but a 16:9 image scale that is perfectly matched with the screen without distortion.Besides, the 4mm lens lets you experience clearer and closer visuals, never miss any details.
- Listen & Talk in Real Time: This camera not only delivers 4K clarity images, but also can help you to communicate with your friends or family members by using the ANNKE App. By the way, it's good for you to warn suspicious strangers when they're loitering around your home.
- From Black & White to Colored Night: With the default IR night vision, human&vehicle triggered and turned the vision into color. Remains color night vision even in dark environments, turns to B&W when less than 0.005Lux. Also supports IR night vision and color night vision mode switching. (100ft color night vision and 100ft IR night vision)
- Accurate Human & Vehicle
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"
Description:
NVR:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H.265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection""
Video & Audio:
Decoding Format: H.264+/H.264/H.265/H.265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 Mbps
Max Recording Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Resolution: Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9/315 X 240 X 48 mm
Weight (Without Hard Disk) : 2.2 lbs/1 kg
Camera:
4K smart bullet network camera with 16:9 image scale
4mm@F1.6 lens brings everything back to life
Efficient H.265+ compression technology
Provide real-time security via built-in two-way audio
Motion detection 2.0 with human & Vehicle Detection
Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR
Support flashing alarm & Audio alarm
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Image Sensor: 1/2.4"" Progressive Scan CMOS
Max resolution: 3840*2160(8MP)
Main Stream: ""50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)""
Substream: ""50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)""
Video Compression: ""Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG""
Video Bitrate: 32 Kbps - 16 Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Input: Built-in Microphone, record with audio
Audio Output: Built-in Speaker, max. sound pressure level: 10 cm: 95 dB
Lens: 4 mm
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Flashing Light Alarm: High/Medium/Low Frequency
Audio Alarm: Warning/Prompt/Custom Audio
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
API: Open Network Video Interface Version (Profile S, Profile T, Profile G)
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Rotate mode, mirror, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: White
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 8 W; PoE (802.3af), max. 9.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor/Outdoor
Interface Protection: IP67
Dimension (L X W X H): 179 mm × 67.4 mm × 69.1 mm (7.1"" × 2.7"" × 2.7"")
Weight: 0.6 lb./285 g
