ANNKE H.265+ 8CH PoE Surveillance Camera Set, 12MP NVR Recorder and 4 x 3K Outdoor Surveillance Bullet Camera, Colour Night Vision, Person and Vehicle Detection, Smart Dual Light, 2TB Hard Drive

Description:
NVR:
· Live view, recording&playback up to 12 MP resolution
· Up to 8 channel IP cameras can be connected with built-in PoE inputs
· Advanced H. 265+ Video Compression
· Supports iPhoneiPadAndroid mobile remote monitoring
· Connectable to the third-party network cameras
· HDMI Video output at up to 4K (40960 × 2160) resolution
· Annke Vision for easy remote view
· Support 4-ch Human and vehicle targets detection""
Video & Audio:
Decoding Format: H. 264+/H. 264/H. 265/H. 265+
IP Video Input: 8CH PoE
Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p(1920 × 1080)
Audio Input/Output: 1/1 RCA
Incoming/outgoing Bandwidth: 80/80 Mbps
Max Recording Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Resolution: Up to 12MP (4096 X 3072) @30fps (Frame rate depends on IP camera)
Max Playback Channel: 8CH
Max Playback Capacity: 1-ch@12 MP (4096 X 3072) (30 fps) /3-ch@4 MP (30 fps) /6-ch@1080p (30 fps)
Hard Drive:
HDD: 1 SATA Interface
HDD Capacity: Up to 8 TB Capacity
General:
Operating Power: DC 48 V
Power Consumption: 10 W (Without HDD and PoE)
PoE: Max 25.5 W for Single Port
Working Temperature: 14 °F ~ 131 °F/-10 °C ~+55 °C
Dimensions (W X H X D): 12.4 X 9.4 X 1.9 /315 X 240 X 48 mm
Weight (Without Hard Disk): 2.2 lbs/1 kg
IP Camera:
3K IR Network Camera with 16:9 image scale
2.8 mm@F 1.6 lens brings everything back to life
Efficient H. 265+ compression technology
Motion detection 2.0 with human & Vehicle Detection

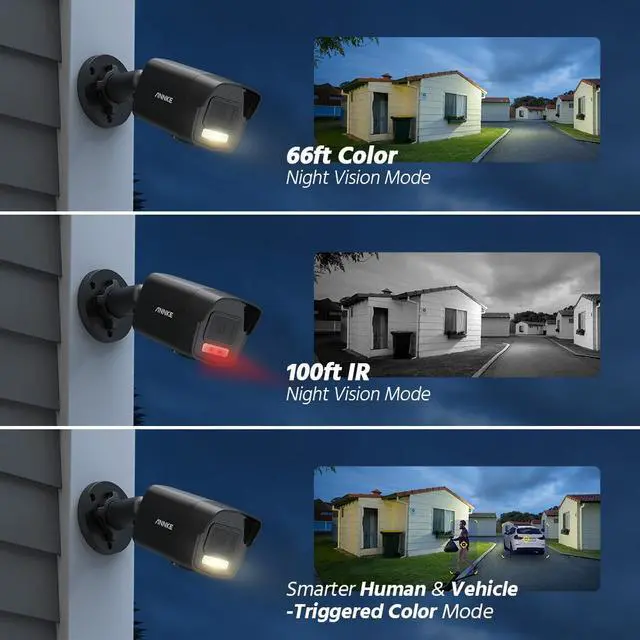

Smart Dual-Light: advanced technology with long range
Clear day and night vision with 3D DNR and 120DB WDR

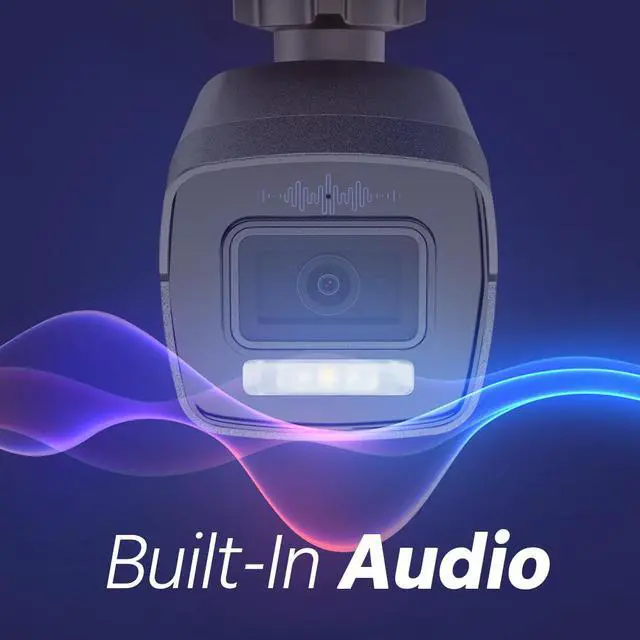

Built-in microphone for real-time audio security
Support on-board storage up to 512 GB (SD card slot)
IP67 Dust and Waterproof Rating
Support PoE &DC12V ""
Camera:
Image Sensor: 1/3"" Progressive Scan CMOS
Max resolution: 3K (3072*1728), 16: 9 picture ratio is more suitable for the most popular display
Main Stream: ""50
Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz: 20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)""
Substream: ""50
Hz: 25 fps (1280 X 720, 640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720, 640 X 480, 640 X 360)""
Video Compression: ""Main
stream: H. 265+/H. 265/H. 264+/H. 264
Sub-stream: H. 265/H. 264/MJPEG""
Video Bitrate: 32 Kbps - 6 Mbps
Audio Compression: G. 711ulaw/G. 711alaw/G. 722.1 /G. 726/MP2L2/PCM/AAC
Audio Input: Built-in Microphone, record with audio
Lens: 2.8 mm
Min.
Illumination:
Color: 0.005 Lux @ (F 1.6, AGC ON), B/W: 0 Lux with IR
Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
Supplement Light Type: Smart Dual-Light, IR, White Light
Supplement Light Range: Up to 30 m
Motion detection 2.0: Supoort, include Human & Vehicle detection
Image Enhancement: BLC, HLC, 3D DNR
Wide Dynamic Range: 120 dB WDR
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
API: Open Network Video Interface Version 18.12
Region of Interest (ROI): 1 fixed region for main stream
Privacy Mask: 4 programmable polygon privacy masks
General Function: Mirror, rotate, password protection, remote access
Ethernet: 1 RJ45 10 M/100 M self-adaptive Ethernet port
General:
Housing: Metal & Plastic
Color: Black
Storage: Built-in microSD/SDHC/SDXC Slot, up to 512 GB
Hardware Reset: Yes
Operating Power: DC 12 V± 25%, max. 5 W; PoE ( 802.3 af), max. 6.5 W
Operating Temperature: -22 °F 140 °F/-30 °C 60 °C
Indoor/Outdoor Use: Indoor//Outdoor
Interface Protection: IP67
Dimension (L X W X H): 170.8 mm × 66 mm × 69.1 mm ( 6.7" × 2.6" × 2.7" )
Weight: 0.6 lb. /270 g
