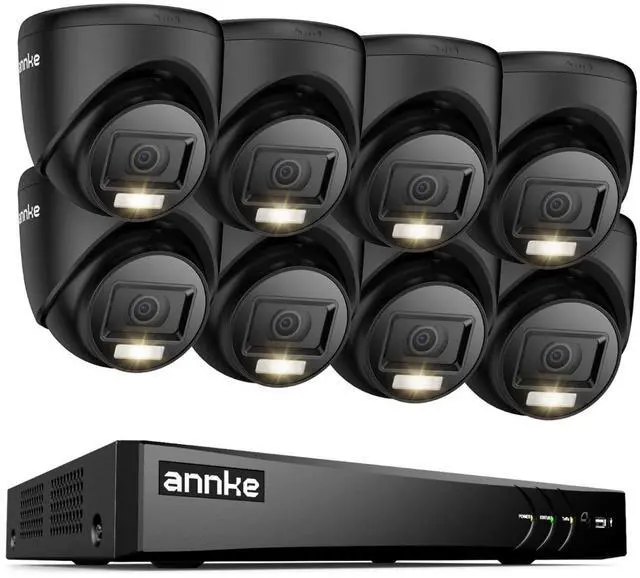

ANNKE 8CH Wired Outdoor Security Camera System with AI Human/Vehicle Detection, 4K H.265+ 5-in-1 DVR and 8x2MP Cameras, Email Alert with Snapshots, 0TB HDD, 66ft Night Vision, Smart Dual Light, Black
- 1: By setting up detection for people and vehicles, you will only receive motion detection alerts when they are in the frame. Try to minimize unnecessary alarms caused by insects, animals, leaves, etc.
- 2: Four security cameras provide optimal 1080p live view at a speed of 30 frames per second, with night vision up to 100 feet. Advanced sensors and intelligent infrared technology help capture clear and noise free images. 5-in-1 5MP Lite DVR can be used in conjunction with TVI, AHD, CVI, CVBS, and IP cameras.
- 3: Comprehensive certification and secure applications - every device, including DVR and camera, has undergone rigorous testing by authorized agencies such as UL and CE. The ANNKE application complies with GDPR, ensuring the security of video streams during data transmission and download.
- 4: The shell is made of the best ABS material, with fast heat dissipation, long lifespan, and no fading.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
DVR
· 4K (8MP) high definition live viewing · 4K (8MP) recording & playback
· Deep learning-based motion detection 2.0 for all analog channels
· Deep learning-based perimeter protection
· Advanced H. 265+ Video Compression
· Aduio via coaxial cable

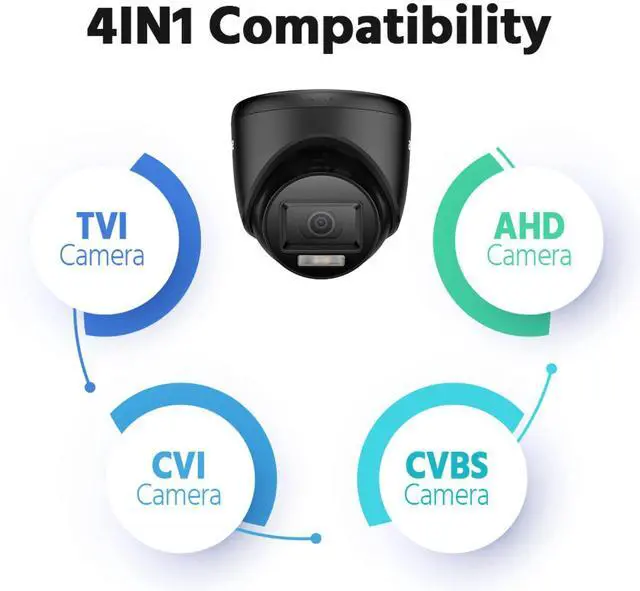

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
Video & Audio
Video Compression: H. 265 Pro+/H. 265 Pro/H. 265/H. 264+/H. 264
Video Input: "8CH Analog HD/Analog + 4CH (up to 12-ch) IP (Enhanced
IP mode on:
8-ch (up to 16-ch), each up to 4 Mbps)"
Video Output: VGA up to 1080p/60 Hz; HDMI up to 4K (3840 × 2160)/30 Hz
Audio Input/Output:
"Input: 1-ch, RCA ( 2.0 Vp-p, 1 K)/8-ch via coaxial cable
Output: 1-ch, RCA ( 2.0 Vp-p, 1 K)"
Supported Camera Types: "Support
HD TVI Input: 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,
1080p@30 fps, 1080p@25 fps, 720p@60 fps,
720p@50 fps, 720p@30 fps, 720p@25 fps
Support AHD Input: 5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support HD CVI Input: 4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input: PAL/NTSC"
Analog HD Playback Resolution: "4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P) /30 fps (N) "
IP Camera Input: 4-CH (up to 12-ch)
IPC Recording Resolution: Up to 8MP
IPC Playback Resolution: Up to 8MP
Max Playback Channel: 8CH
Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Smart event: Line crossing & Intrusion Detection
ONVIF: Support
Hard DriveHDD 1 SATA Interface
HDD Capacity Up to 10 TB Capacity
Smart event: Line crossing & Intrusion Detection
ONVIF: Support
Hard Drive
HDD: 1 SATA Interface
HDD Capacity: Up to 10 TB Capacity
General
Working Temperature: 14 °F 131 °F/-10 °C 55 °C
Dimensions (W X H X D): 315 X 242 X 45 mm
Weight (Without Hard Disk): 2 kg ( 4.4 lbs. ) (Without HDD)
Analog HD Camera
"High quality imaging with 2 MP, 1920×1080 resolution
3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
Water and dust resistant (IP67) "
Image sensor: 2MP CMOS Image sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate:
"TVI: 1080P @ 30 fps, 1080P @ 25 fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.01 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: Horizontal
FOV: 78°, vertical
FOV: 42°, diagonal FOV: 92°
Supplement Light type: White Light & IR
Supplement Light Range:
IR: Up to 20 m, white
Light: Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: BNC, switchable TVI/AHD/CVI/CVBS
General
Housing: Metal&Plastic
Coolr: Black
Operating Power: DC12V
Operating Temperatur: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP67
Dimension (L x W x H): Ø85 mm × 84.6 mm( 3.35" × 3.33 ")
Weight: Approx. 205 g ( 0.45 lb. )
DVR
· 4K (8MP) high definition live viewing · 4K (8MP) recording & playback
· Deep learning-based motion detection 2.0 for all analog channels
· Deep learning-based perimeter protection
· Advanced H. 265+ Video Compression
· Aduio via coaxial cable
· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1
· Supports iPhoneiPadAndroid mobile remote monitoring
Video & Audio
Video Compression: H. 265 Pro+/H. 265 Pro/H. 265/H. 264+/H. 264
Video Input: "8CH Analog HD/Analog + 4CH (up to 12-ch) IP (Enhanced
IP mode on:
8-ch (up to 16-ch), each up to 4 Mbps)"
Video Output: VGA up to 1080p/60 Hz; HDMI up to 4K (3840 × 2160)/30 Hz
Audio Input/Output:
"Input: 1-ch, RCA ( 2.0 Vp-p, 1 K)/8-ch via coaxial cable
Output: 1-ch, RCA ( 2.0 Vp-p, 1 K)"
Supported Camera Types: "Support
HD TVI Input: 8 MP@15 fps, 5 MP@20 fps, 3K@20 fps, 4
MP@30 fps, 4 MP@25 fps, 3 MP@18 fps,
1080p@30 fps, 1080p@25 fps, 720p@60 fps,
720p@50 fps, 720p@30 fps, 720p@25 fps
Support AHD Input: 5 MP@20 fps, 4 MP@30 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support HD CVI Input: 4 MP@30 fps, 4 MP@25 fps, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
Support CVBS Input: PAL/NTSC"
Analog HD Playback Resolution: "4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P) /30 fps (N) "
IP Camera Input: 4-CH (up to 12-ch)
IPC Recording Resolution: Up to 8MP
IPC Playback Resolution: Up to 8MP
Max Playback Channel: 8CH
Motion Detection 2.0: Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights.
Smart event: Line crossing & Intrusion Detection
ONVIF: Support
Hard DriveHDD 1 SATA Interface
HDD Capacity Up to 10 TB Capacity
Smart event: Line crossing & Intrusion Detection
ONVIF: Support
Hard Drive
HDD: 1 SATA Interface
HDD Capacity: Up to 10 TB Capacity
General
Working Temperature: 14 °F 131 °F/-10 °C 55 °C
Dimensions (W X H X D): 315 X 242 X 45 mm
Weight (Without Hard Disk): 2 kg ( 4.4 lbs. ) (Without HDD)
Analog HD Camera
"High quality imaging with 2 MP, 1920×1080 resolution
3.6 mm fixed focal lens
Up to 20 m IR distance for bright night imaging
Up to 20 m white light distance for bright night imaging
Water and dust resistant (IP67) "
Image sensor: 2MP CMOS Image sensor
Video Resolution: 1920 (H) × 1080 (V)
Signal System: PAL/NTSC
Frame Rate:
"TVI: 1080P @ 30 fps, 1080P @ 25 fps
Lens: 3.6 mm
Min.
Illumination:
Color: 0.01 Lux @ (F 1.2, AGC ON), 0 Lux with IR
Angle of View: Horizontal
FOV: 78°, vertical
FOV: 42°, diagonal FOV: 92°
Supplement Light type: White Light & IR
Supplement Light Range:
IR: Up to 20 m, white
Light: Up to 20 m
Supplement Light Mode: IR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic Range: Digital WDR
IR Cut Filter: Yes
Video Output: BNC, switchable TVI/AHD/CVI/CVBS
General
Housing: Metal&Plastic
Coolr: Black
Operating Power: DC12V
Operating Temperatur: -40 °F 140 °F /-40 °C 60 °C
Indoor/Outdoor: Indoor/Outdoor
Weatherproof Rating: IP67
Dimension (L x W x H): Ø85 mm × 84.6 mm( 3.35" × 3.33 ")
Weight: Approx. 205 g ( 0.45 lb. )
