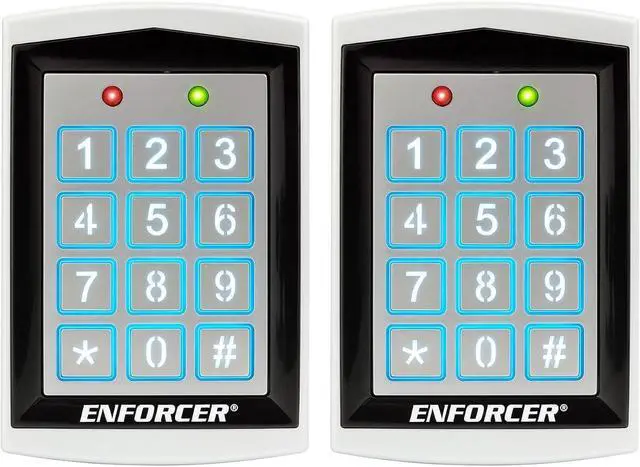

Seco-Larm SK-1323-SPQ Pack of 2 Enforcer Standalone Proximity Card Reader and Keypad, Access Control System, 1000 Users Capacity, 26-bit Output, Backlit Keys, IP66, Adjustable Relay Output, 12-24V DC
- Versatile access control: Designed for secure entry with both proximity card and keypad code access options
- High user capacity: Supports up to 1,000 users with individual PINs or proximity credentials for efficient management
- Dual operating modes: Functions as a standalone unit or as a Wiegand output reader connected to an external controller
- Durable outdoor design: IP66-rated weatherproof enclosure ensures reliable performance in indoor and outdoor installations
- Flexible voltage input: Operates on 12-24V DC for compatibility with a wide range of power systems
- Secure and configurable: Adjustable relay output time, programmable lockout, and anti-passback functions for enhanced protection
- User-friendly interface: Backlit numeric keypad and LED indicators provide visual feedback for easy operation day or night
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Seco-Larm SK-1323-SPQ Pack of 2 Enforcer Standalone Proximity Card Reader and Keypad, Access Control System, 1000 Users Capacity, 26-bit Output, Backlit Keys, IP66, Adjustable Relay Output, 12-24V DC

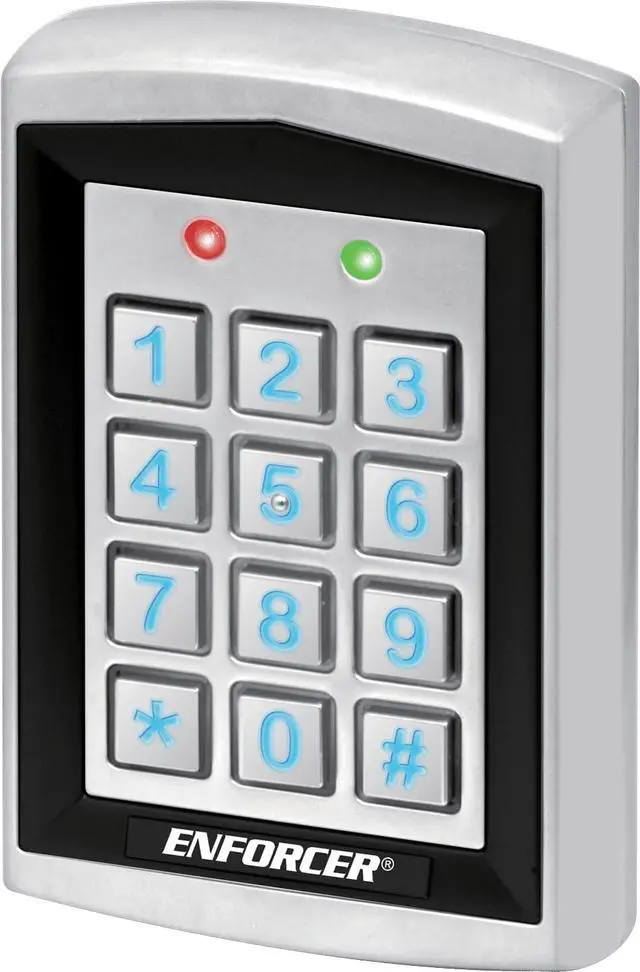

The Seco-Larm SK-1323-SPQ is a secure and durable standalone access control keypad and proximity reader designed for commercial and industrial use. With a capacity of up to 1,000 users, it supports both card and PIN credentials, delivering flexible and reliable access management in any environment.
Key Features:Supports both proximity card and PIN code access options
Accommodates up to 1,000 users with unique credentials
Works as a standalone unit or with Wiegand 26-bit output
Reliable outdoor and indoor performance
Operates from 12 to 24V DC power sources
Adjustable relay output time and anti-passback
Illuminated keys for easy use in low-light conditions
Fits standard access control installation points
Operates from -40°F to 140°F for harsh environments
Specifications:Number of User Codes: Up to 1,010
Operating Voltage: 12~24 VAC/VDC
Current Draw - Standby: 64mA@12VDC
Current Draw- Active: 92-120 mA@12VDC
Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
Egress Inputs: 2, N.O. Ground
Door Sensor Input: N.C. Ground
Tamper Sensor: Optical
Keypad LED Life: 60,000 hours (over 6.8 years)
Proximity Reader Sensing Distance: 1.93 inches
IP Rating: Weatherproof IP65
Dimensions: 4.75 x 3 x 0.87 inches
The Seco-Larm SK-1323-SPQ is a secure and durable standalone access control keypad and proximity reader designed for commercial and industrial use. With a capacity of up to 1,000 users, it supports both card and PIN credentials, delivering flexible and reliable access management in any environment.
Key Features:Supports both proximity card and PIN code access options
Accommodates up to 1,000 users with unique credentials
Works as a standalone unit or with Wiegand 26-bit output
Reliable outdoor and indoor performance
Operates from 12 to 24V DC power sources
Adjustable relay output time and anti-passback
Illuminated keys for easy use in low-light conditions
Fits standard access control installation points
Operates from -40°F to 140°F for harsh environments
Specifications:Number of User Codes: Up to 1,010
Operating Voltage: 12~24 VAC/VDC
Current Draw - Standby: 64mA@12VDC
Current Draw- Active: 92-120 mA@12VDC
Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
Egress Inputs: 2, N.O. Ground
Door Sensor Input: N.C. Ground
Tamper Sensor: Optical
Keypad LED Life: 60,000 hours (over 6.8 years)
Proximity Reader Sensing Distance: 1.93 inches
IP Rating: Weatherproof IP65
Dimensions: 4.75 x 3 x 0.87 inches
