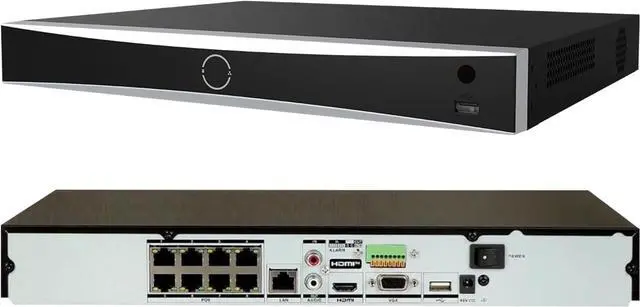

DS-7608NXI-K2/8P 4K 8 Channel PoE AcuSense NVR Network Video Recorder, (No Hard Drive) Up to 12MP, Human/Vehicle Detection, H.265+, Compatible with k IP Camera, Upgrade of DS-7608NI-K2/8P
- This 8-channel NVR comes equipped with 8 Power-over-Ethernet (PoE) ports, eliminating the need for separate power cables for your IP cameras. Plug and play. Simply connect your PoE cameras to the NVR directly. With an incoming bandwidth of 80 Mbps and an outgoing bandwidth of 160 Mbps, this NVR ensures stable, uninterrupted video transmission.
- Stunning 4K HDMI Output & Flexible Display OptionsFeaturing the advanced H.265+ video compression technology, this NVR reduces storage space and bandwidth usage while preserving crystal-clear video quality. It offers independent HDMI and VGA outputs for versatile display setups, and the HDMI port supports video output at up to 4K resolutiondelivering sharp, detailed images that let you catch every small detail in your surveillance footage.
- Never run out of storage space for your security footage. This NVR supports up to 2 SATA hard drives (HDD not included), with a maximum capacity of 16TB per drive (total 32TB when using two drives). You
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Video/Audio Input
IP video input: | 8-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth: | 80Mbps
Outgoing bandwidth: | 160Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 8-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 10TB capacity for each HDD
External Interface
USB Interface: | 2, USB2.0
>
POE
Interface: | 8 independent 10 /100 Mbps PoE Ethernet interfaces
General
Power Supply: | 100 to 200 VAC
Consumption(without hard disk and POE): | 15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 385 mm chassis
Dimensions: | 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight: | 3 kg (6.6 lb)
IP video input: | 8-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1k)
Network
Incoming bandwidth: | 80Mbps
Outgoing bandwidth: | 160Mbps
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 8-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 10TB capacity for each HDD
External Interface
USB Interface: | 2, USB2.0
>
POE
Interface: | 8 independent 10 /100 Mbps PoE Ethernet interfaces
General
Power Supply: | 100 to 200 VAC
Consumption(without hard disk and POE): | 15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 385 mm chassis
Dimensions: | 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")
Weight: | 3 kg (6.6 lb)
