PNE-10 2S Battery Equalizer Module for Li-ion, Active Battery Balancing System with Bidirectional Compensation, Solar Marine Charge

Intelligent Voltage Compensation: This 2S battery balancer features intelligent voltage compensation technology that automatically shuts down when voltage is insufficient, protecting Li-ion batteries from over-discharge and extending their operational lifespan through precise and control mechanisms.
10A Bidirectional Balancing Current: Equipped with 0-10A compensation current range and bidirectional balancing capabilities, this battery equalizer actively regulates voltage differences between series-connected cells, maintaining optimal charge/discharge balance for 2-18V rated voltage systems with only 8mA self-consumption.

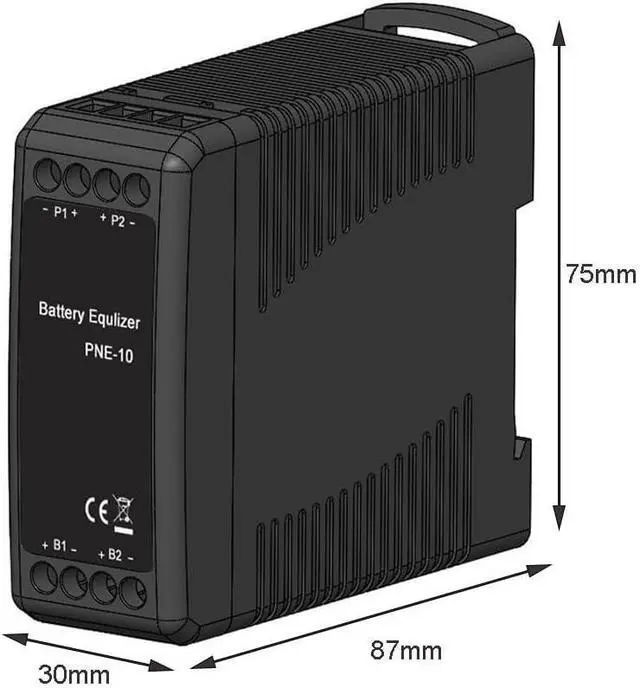

Reverse Polarity & Low Voltage Isolation: Built-in reverse polarity protection and low voltage isolation safeguard your battery configuration from potential damage, while the PCB+ABS construction with terminal wire combination guarantees lasting reliability through 85*75*30mm compact design suitable for continuous operation.
Long-Term Series Connection Support: Designed for permanent installation in series battery configurations, this active balancing module maintains charge equilibrium between individual cells during both charging and discharging cycles, capacity degradation and voltage drift over extended usage periods.

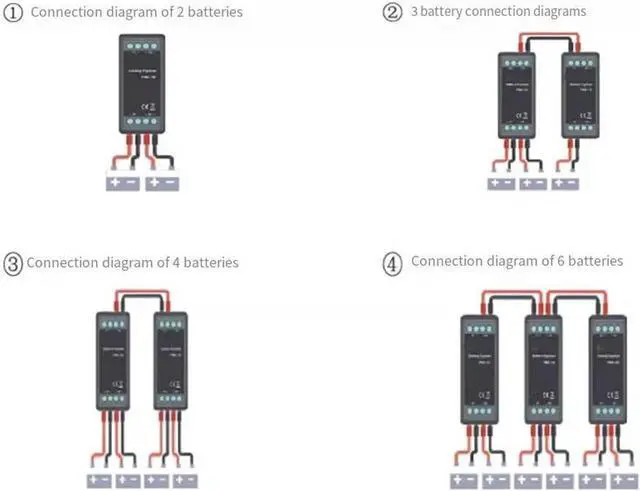

Versatile Application for Multiple Vehicles: Suitable for cars, boats, motorcycles, solar energy systems and various battery setups requiring 2-string active balancing; supports multi-module parallel connection for expanded capacity, making it a practical solution while traveling or in stationary installations across diverse power management scenarios.
