16 channel 1080P security DVR Specification
Operating System: Embedded LINUX
System Resources: Pentaplex function: live, recording, playback, backup & remote access
Display: 1/4//9/16
Encode capacity: 16x 1080P@30fps
Recording Mode: Manual>Alarm>Video Detection>Continuous
Search Mode: Time/Date, Alarm, Motion Detection & exact search

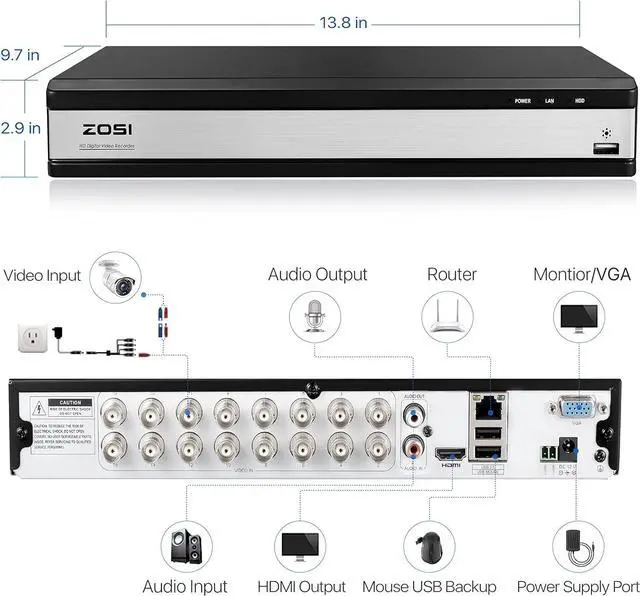

Video Outputs: 1CH HDMI +1CH VGA + 1CH CVBS
Video Inputs: 16CH
Audio Inputs/Outputs: 2CH/1CH
Alarm Inputs/Outputs: 2CH/1CH
Net Interface: RJ-45
PTZ Control: Support
Hard Disk: 1 SATA ports (Max 6TB)

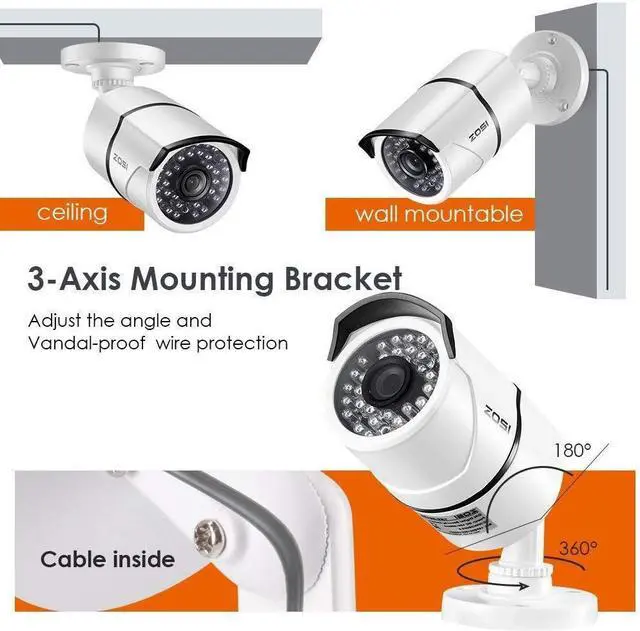

1080p Bullet Camera Specification
TVI 1080P Resolution
High-Performance Night Vision
HAD IR-CUT, Clearer/More Real
Image Sensor: 1 /3'' Color CMOS with IR-Cut
Lens: 3.6mm
IR LEDs Amount: 36pcs, 5mm LEDs
IR Distance: up to 100ft (30m)
Waterproof Level: IP67
BLC/WB/AGC: Auto
Power Supply: DC12V/500mA
1080p Dome Camera Specification
Image Sensor: 1/2.7CMOS with IR-Cut.
Resolution: 1080P (It Default 960H mode)
Signal mode: TVI/CVBS 960H
Lens: 3.6mm
IR LEDs Amount: 24pcs, 5mm LEDs
IR Distance: up to 65ft (30m)
Power Supply: DC12V/500mA

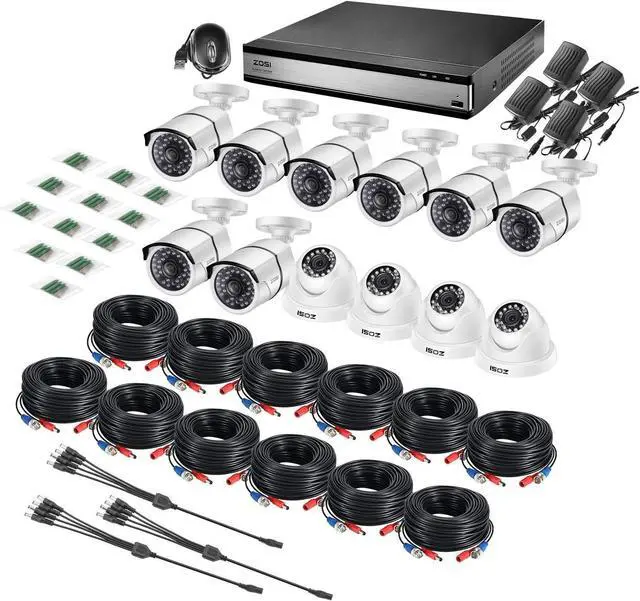

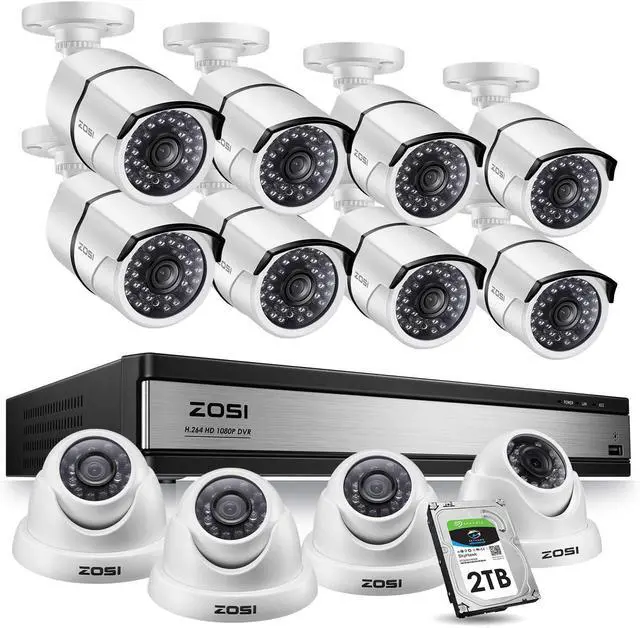

Package Contents
1 x 16CH 1080P Digital Video Recorder
1 x 12V/2000mA Power Supply for DVR
1 x Mouse for DVR
8x 1080p Bullet Cameras
4 x 1080p Dome Cameras
8 x 60FT BNC+DC CCTV cable
4 x 100FT BNC+DC CCTV cable
3 x 12V/2000mA power supply
3 x 1 to 4 power splitter cable
12 x Mounting screw bag
1 x 2TB Hard Drive preinstalled
1 x User Guide
