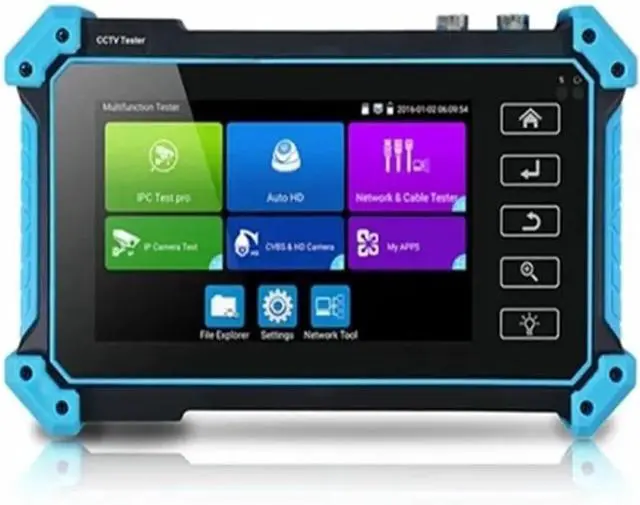

CCTV Tester, 4K CCTV Monitor Tester IPC5200C IP Camera Analog Video Surveillance PoE RJ45 TDR Cable Test(IPC-5100C Plus)

Be the first to review this product...

5.4 inch IPS touch screen, 1920x1152 resolution
8MP CVI/ TVI/ AHD camera test
8MP EX-SDI, HD-SDI, 3G-SDI camera test*
H.265/H.264, 4K video display via mainstream
VGA input, support 2048 x 1152 60FPS*

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Input, support 4K 30FPS*
DC12V 3A, 48V PoE power output
Auto HD, auto recognize HD coax camera type and resolution
RJ45 TDR cable test, cable quality test
UTP cable test, detect the near-end, mid-end and far-end fault pointof the RJ45 cable

Optional models:
IPC-5100 Plus: (With Cable Tester)
Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+ IN+VGA IN test + Cable Tester

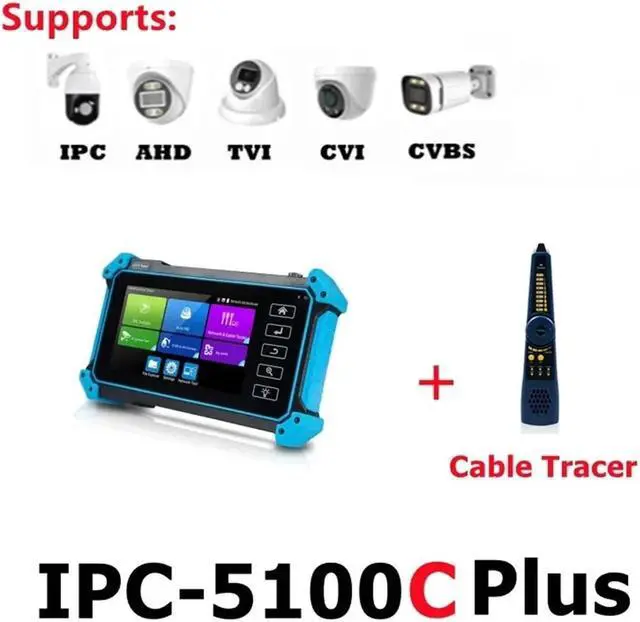

IPC-5100C Plus: (With Cable Tracer)
Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+ IN+VGA IN test +Cable Tracer
IPC-5200 Plus: (With Cable Tester)
Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+IN+VGA IN test+Cable Tester
IPC-5200C Plus: (With Cable Tracer)
Support 8MP TVI+8MP CVI+8MP AHD+4K H.265 IP +Analog+EX-SDI/HD-SDI+ IN+VGA IN test +Cable Tracer

Key Features:
Camera test:

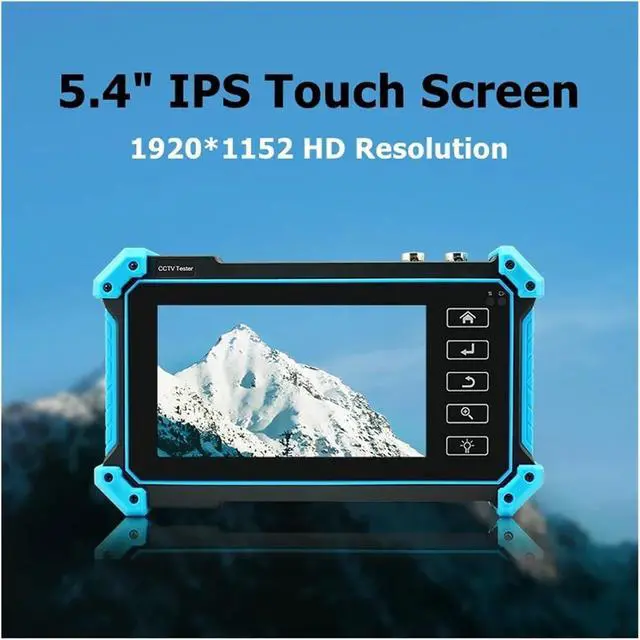

5.4 inch IPS touch screen, 1920*1152 resolution
H.265 & H 264 IP 4K video display via mainstream
Analog camera test PTZ controller

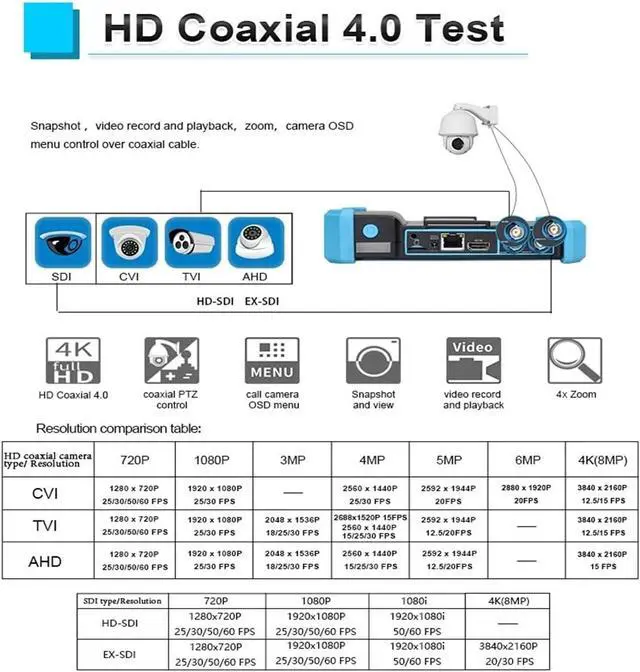

8MP TVI test 3840 x 2160P 12515 FPS 4xzoom video record & playback coaxial PTZ control call OSD menu
8MP AHD test 3840 x 2160P 15 FPS 4xzoom video record playback coaxial PTZ call OSD menu
8MP CVI test 3840 x 2160P 12515FPS 4xzoom video record playback coaxial PTZ call OSD menu
8MP EXSDI test3840x2160P 2530FPS4xzoom video record playback coaxial PTZ call OSD menu
HDSDI test 1920x1080P 25305060 FPS,4xzoom, video record & playback coaxial PTZ call OSD menu
3GSDI test 1920x1080P 5060 FPS4xzoom video record playback coaxial PTZ call OSD menu
Auto HD app auto recognize HD coax camera type and resolution support snapshot video record playback coaxial PTZ call OSD menu
VGA input up to 2048 x 1152 60FPS support snapshot video record playback
