CCTV Tester, IPC9310 Plus 4k Security Camera Tester IP 1080P 8MP AHD TVI CVI CVBS SDI All in 1 CCTV Monitor Utp Optical POE
- 4.3-inch fullview IPS HD screen resolution of 800 ×480, PPI up to 216
- display backlight brightness is adjustable up to 500cd, display contrast 800: 1
- using G + G structure capacitive touch screen , hard wear-resistant , corrosion-resistant, high transmittance
- NTSC / PAL analog CVBS video image display , zoom , video recording , photo.
- 10 / 100M Ethernet interface , built-in 150M WIFIwireless capabilities
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

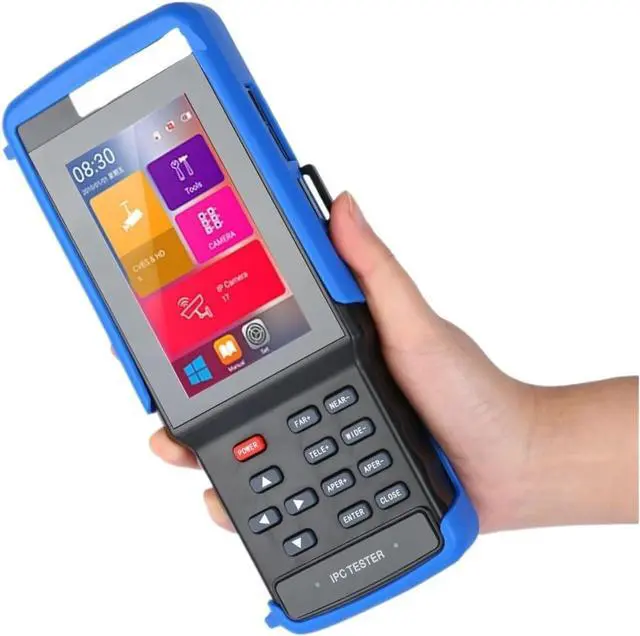

IPC9310S CCTV tester monitor
The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.
Update:4.5inch display : 4.5 inch 960*540 HD IPS touch screen display
ADD USB port : DC12V 2A Output.
9310S support : 5MP AHD +8MP TVI +8MP CVI +CVBS+ IP +cable tracker (optional)
Product Model :IPC9310 HD Video Monitor Tester .
Touch Screen :4 inch capacitive touch screen .
LCD Screen:4 inch resolution 800 × 480 IPS HD full view .
Ethernet Port :10/100/1000M adaptive .
:Built-in wireless , speed 150M .
H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4K .
Coax HD Camera test:
Support HD TVI 8MP resolution 3840 X 2156 15P .
Support HD CVI 8MP resolution 3840 X 2156 15P .
Support HD AHD 5MP resolution 2560 X 1920 15P .
PoE Power Output : 48V standard PoE output, max 25.5W .
Photo, Video and Playback : Support all camera videos photo taking, video recording and stored as H264 format .
PSE Voltage test: Display PoE power supply device voltage and circuit conditions .
UTP Cable test : Test any 2 cable core connection sequence and on-off status .
DC12V Power Output : DC12V power output, max current 3A, provide temporary power for cameras .
Camera tester, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projects.
Update:4.5inch display : 4.5 inch 960*540 HD IPS touch screen display
ADD USB port : DC12V 2A Output.
9310S support : 5MP AHD +8MP TVI +8MP CVI +CVBS+ IP +cable tracker (optional)
Product Model :IPC9310 HD Video Monitor Tester .
Touch Screen :4 inch capacitive touch screen .
LCD Screen:4 inch resolution 800 × 480 IPS HD full view .
Ethernet Port :10/100/1000M adaptive .
:Built-in wireless , speed 150M .
H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4K .
Coax HD Camera test:
Support HD TVI 8MP resolution 3840 X 2156 15P .
Support HD CVI 8MP resolution 3840 X 2156 15P .
Support HD AHD 5MP resolution 2560 X 1920 15P .
PoE Power Output : 48V standard PoE output, max 25.5W .
Photo, Video and Playback : Support all camera videos photo taking, video recording and stored as H264 format .
PSE Voltage test: Display PoE power supply device voltage and circuit conditions .
UTP Cable test : Test any 2 cable core connection sequence and on-off status .
DC12V Power Output : DC12V power output, max current 3A, provide temporary power for cameras .
Camera tester, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
