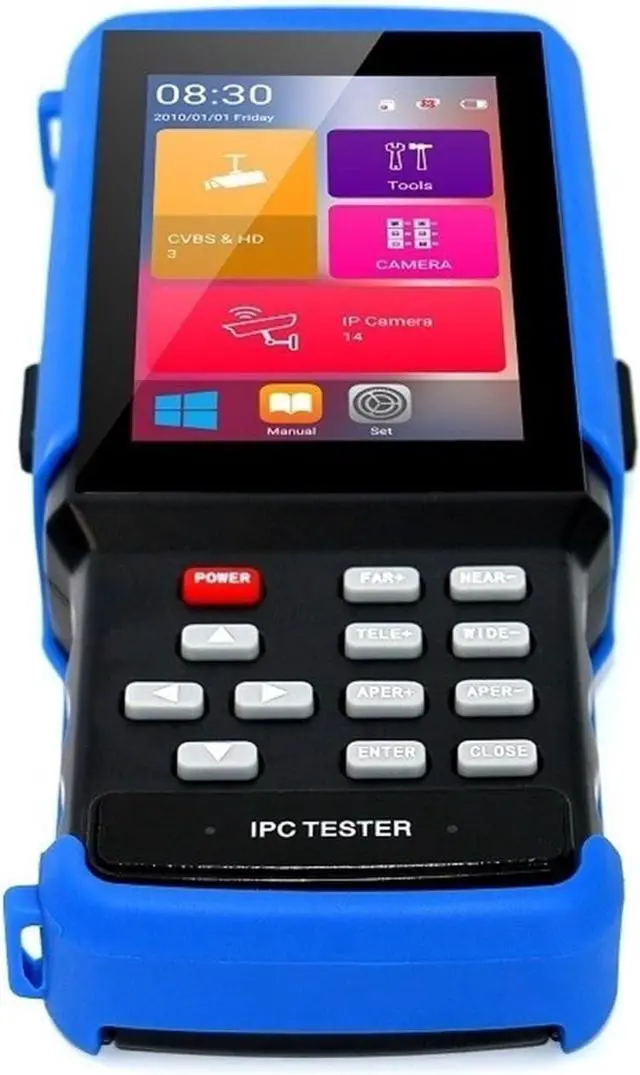

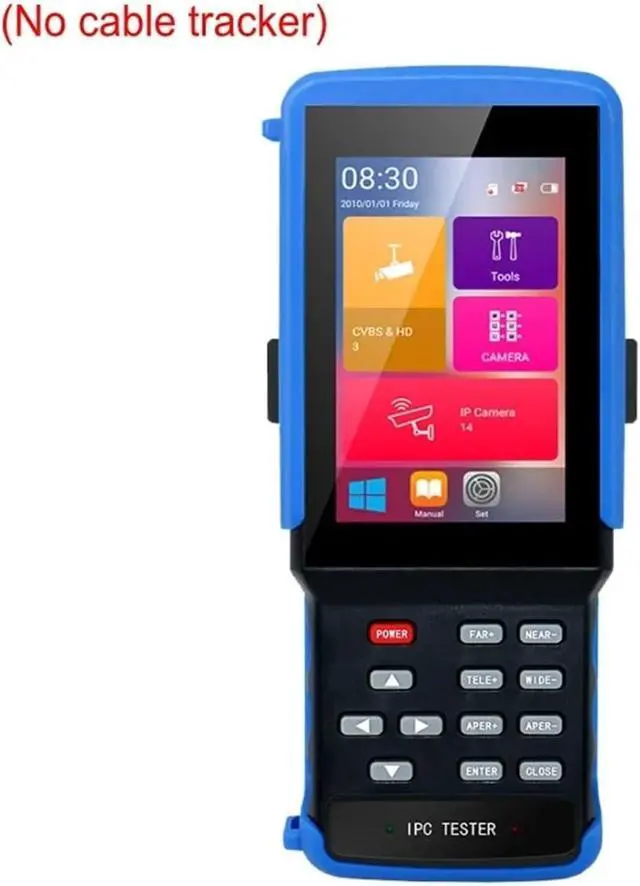

CCTV Tester, 4.5 Inch IPC9310 4K H265/H264/MPEG4/MJPEG IPC Main Stream Test Camera Tester 5MP AHD 8MP CVI TVI CVBS CCTV Monitor(No Cable Tracker)
- 1. 4.3 inch full view IPS HD screen, resolution of 800 × 480, PPI up to 216
- 2. Adjustable display backlight brightness, up to 500cd, display contrast 800:1
- 3. G + G structure capacitive touch screen, hard and wear-resistant, corrosion-resistant, high transmittance
- 4. 7.4V 3200mAh high-capacity polymer lithium battery, low consumption, auto screen sleep, once fully charged work continually for 10 hours
- 5. Standard 48V/24W PoE power output for PoE camera testing, support PSE voltage test, DC12V/3A power output, short-circuit protection, supply temporary power for all kinds of cameras including PTZ
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview:
IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras.
It is protable, low-power consumption and , with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24W PoE power output, camera video snapshot and record, various network test tools such as PING, IP address , port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Main Features:
Support Chinese, English, Spanish and other more than 10 kinds of languages
4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback
BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display
FTP tool, transfer files in LAN freely without SD card reader
IP address scan tool, rapidly search out camera IP address, PING tool and port flicker tools for network test
Bright white LED lamp, easy to work in dark area
Applications:
-CCTV system installation and maintenance
-Finding out the other end of the cable in security maintenance and network cabling
Parameters:
UTP network cable test
Test connection status and sequenceof any 2 network cables
DC12V power output
DC12V output max current 3A, supply temporary power for cameras
PoE power output
48V / 24W standard PoE power output
PSE voltage test
DisplayPSE device voltage and circuit connection status
RS485 serial port tool
Be able to send or receive any data or hex data
Battery
Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours
Language
Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
CCTV Monitor & Display
IPC9310 series CCTV tester is developed for the on-site installation or maintenance of CCTV cameras.
It is protable, low-power consumption and , with IP/Analog/HD camera video display, RS485 PTZ control, DC12V/3A or 48V/24W PoE power output, camera video snapshot and record, various network test tools such as PING, IP address , port flicker control, LED lamp and RJ45 cable connection status test or cable tracking, which makes it much easier for a CCTV technician to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Main Features:
Support Chinese, English, Spanish and other more than 10 kinds of languages
4K H264/H265/MPEG4/MJPEG format IP camera test, high definition hardware decoder for video image display in real time without delay and enlarge max 8 times, support snapshot, video recording and playback
BNC input for HD camera TVI 8MP, CVI 8MP, AHD 5MP camera test, NTSC/PAL Analog CVBS video display
FTP tool, transfer files in LAN freely without SD card reader
IP address scan tool, rapidly search out camera IP address, PING tool and port flicker tools for network test
Bright white LED lamp, easy to work in dark area
Applications:
-CCTV system installation and maintenance
-Finding out the other end of the cable in security maintenance and network cabling
Parameters:
UTP network cable test
Test connection status and sequenceof any 2 network cables
DC12V power output
DC12V output max current 3A, supply temporary power for cameras
PoE power output
48V / 24W standard PoE power output
PSE voltage test
DisplayPSE device voltage and circuit connection status
RS485 serial port tool
Be able to send or receive any data or hex data
Battery
Built-in 7.4V polymer lithium battery, capacity 3200mAh, be able to work for about 10 hours
Language
Chinese Simplified, Chinese Traditional, English, Germany, Spanish, Portuguese, Russian, French, Polish, Korean, Japanese, Turkish and Italian 13 languages
CCTV Monitor & Display
