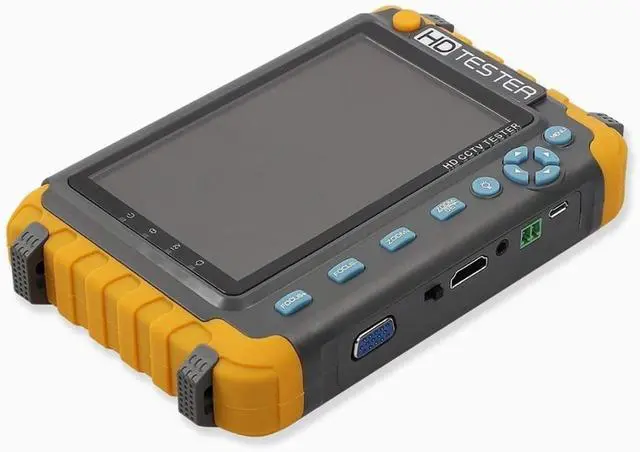

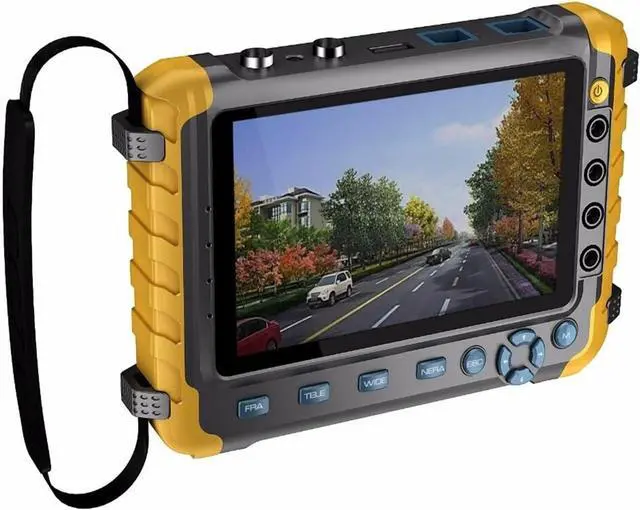

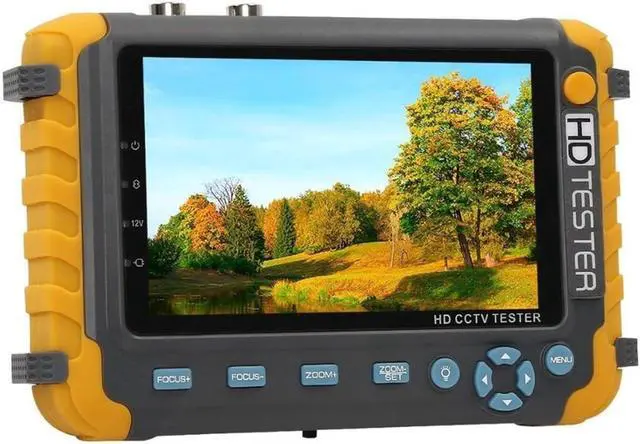

CCTV Tester, CCTV IV8W AHD/CVI/TVI CVBS Tester Cameras AHD Testers with VGA Input Video CFTV Mini Monitor
- Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
- Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom,aperture size.
- Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section.
- Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.
- Test the input from pickup devices. Connect the tester and pickup device with the cable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
This CCTV tester not supported Digital Multimeter
The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Funtions:
Enhanced Network Cable Testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ Input
Support VGA/ 1.0 video input, once connect VGA/video, please switch selector to select or VGA mode. The maximum resolution is1920 x 1440.
TVI Camera Test
HD TVI video surveillance testing, support1MP 2MP 3MP 4MP 5MP.When TVI signal input, the tester will display HD TVI camera image.
AHD Camera Test
HD video surveillance testing, support AHD 2.0 version,1MP 2MP 3MP 4MP 5MP. When AHD signal input, the tester will display the AHD camera image.
CVI Camera Test
HD CVIvideo surveillance testing, support1MP 2MP 3MP 4MP.When CVI signal input, the tester will display HD CVI camera image.
LED Lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The Battery Graphic Display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.

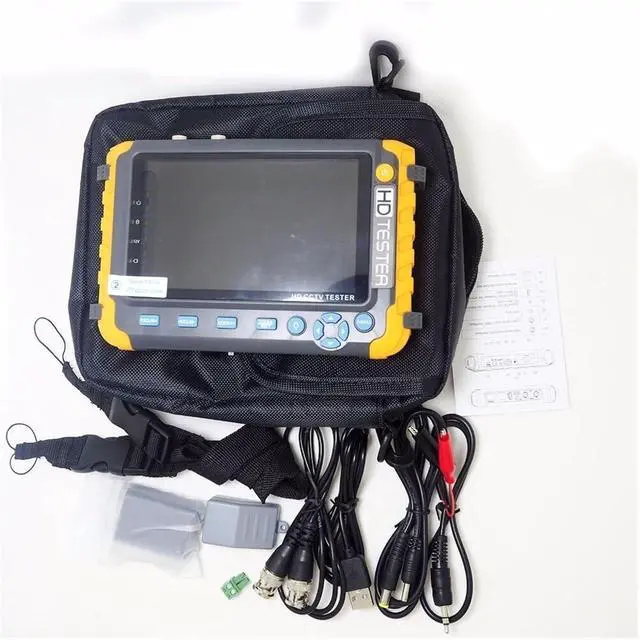

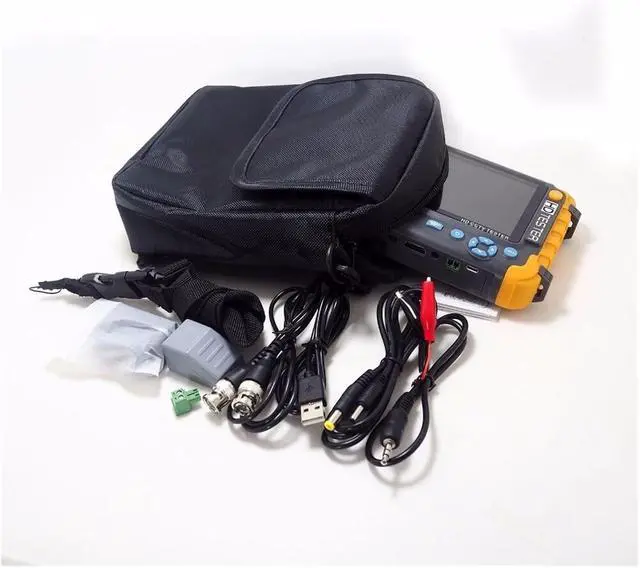

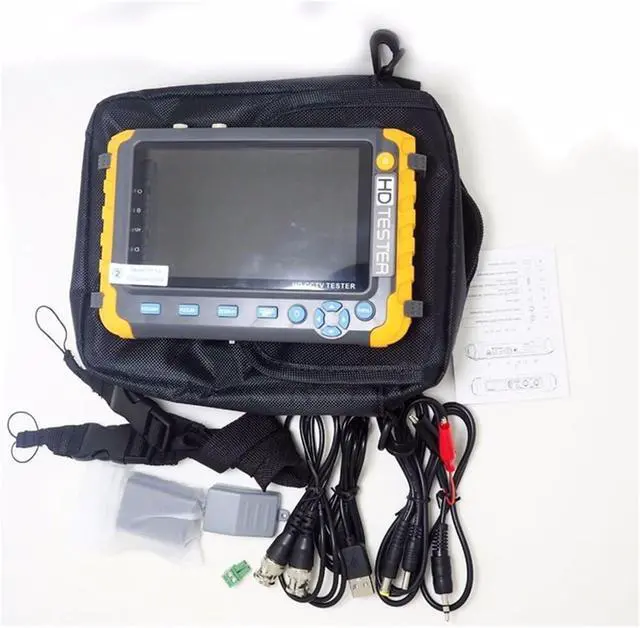

Package Included:
HD coaxial tester
BNC cable
RS485 connector
Power output conversion cable
cable
Lanyard
Tool bag
Instruction Manual
Cctv tester, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
Funtions:
Enhanced Network Cable Testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ Input
Support VGA/ 1.0 video input, once connect VGA/video, please switch selector to select or VGA mode. The maximum resolution is1920 x 1440.
TVI Camera Test
HD TVI video surveillance testing, support1MP 2MP 3MP 4MP 5MP.When TVI signal input, the tester will display HD TVI camera image.
AHD Camera Test
HD video surveillance testing, support AHD 2.0 version,1MP 2MP 3MP 4MP 5MP. When AHD signal input, the tester will display the AHD camera image.
CVI Camera Test
HD CVIvideo surveillance testing, support1MP 2MP 3MP 4MP.When CVI signal input, the tester will display HD CVI camera image.
LED Lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The Battery Graphic Display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Package Included:
HD coaxial tester
BNC cable
RS485 connector
Power output conversion cable
cable
Lanyard
Tool bag
Instruction Manual
Cctv tester, CCTV Monitor, CCTV Monitor & Display, Video Surveillance
