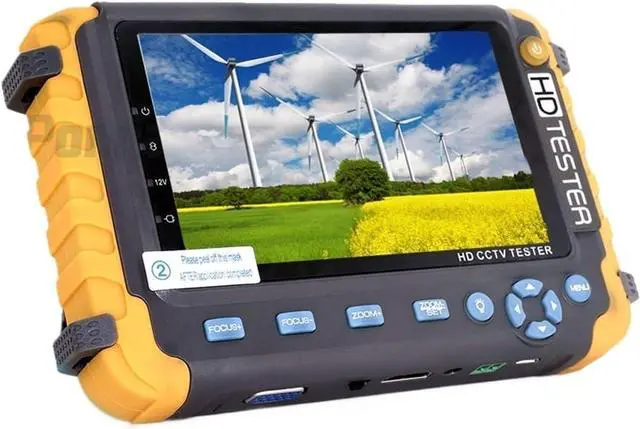

CCTV Tester, AHD Monitor CCTV Tester CVBS Analog HD Coxial 8mp Cvi Ahd Tvi Camera Video Signal Testing CCTV 8w
- The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI.
- It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
- Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
- Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
- Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications:
Model IV8W
LCDscreen 5.0inchTFT-LCD,800(RGB)x480resolution
Videotest NTSC/PAL(Autoadapt)
thesequenceofwiresaswellasreadthenumberofthetestbox
DC12Vpoweroutput
OutputDC12V1Apowerforcamera
inputtest
1channelsignalinput
DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.

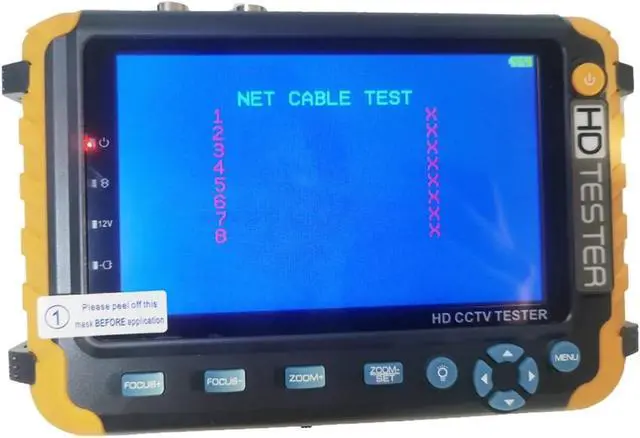

Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.

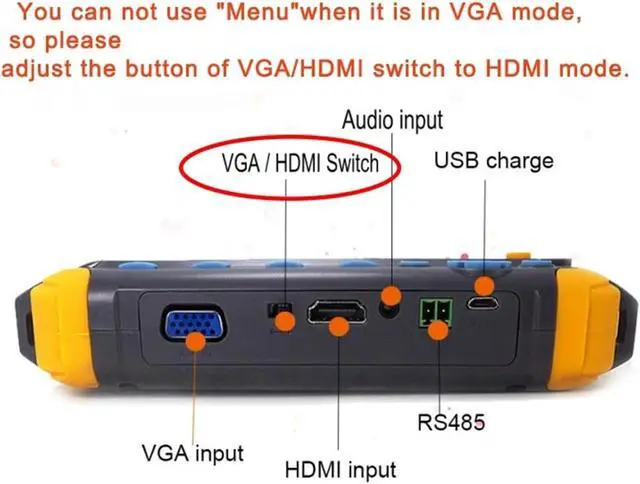

VGA/ input
Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
TVI camera test
HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, 8MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.

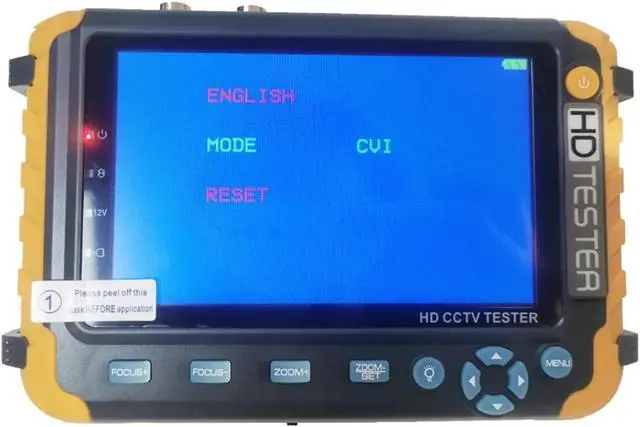

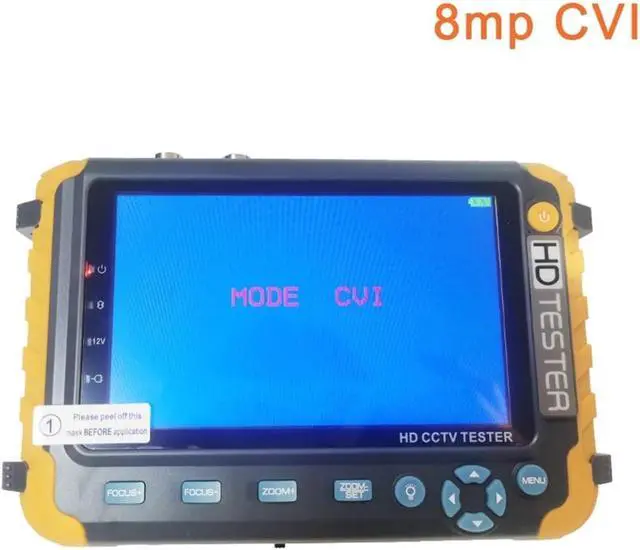

CVI camera test
HD CVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Packaging list
1*HD coaxial tester (Built-in battery)
1*Adapter DC5V 1A(with USB cable)
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1* cable
1*Lanyard
1*Tool bag
1*Instruction Manual
Ahd monitor cctv tester, cctv monitor, cctv monitor display, video surveillance
Model IV8W
LCDscreen 5.0inchTFT-LCD,800(RGB)x480resolution
Videotest NTSC/PAL(Autoadapt)
thesequenceofwiresaswellasreadthenumberofthetestbox
DC12Vpoweroutput
OutputDC12V1Apowerforcamera
inputtest
1channelsignalinput
DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
VGA/ input
Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
TVI camera test
HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
AHD camera test
HD video surveillance testing, support AHD 2.0 version, 8MP (IV8W ) / 720p 25,30fps/ 1080p 25,30fps (IV8S) . When AHD signal input, the tester will display the AHD camera image.
CVI camera test
HD CVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.
The battery graphic display
The tester has advanced power control and protection circuit, low-power energy-saving, 4 to 5 hours on a single charge, can be used normally for 12 hours.
Packaging list
1*HD coaxial tester (Built-in battery)
1*Adapter DC5V 1A(with USB cable)
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1* cable
1*Lanyard
1*Tool bag
1*Instruction Manual
Ahd monitor cctv tester, cctv monitor, cctv monitor display, video surveillance
