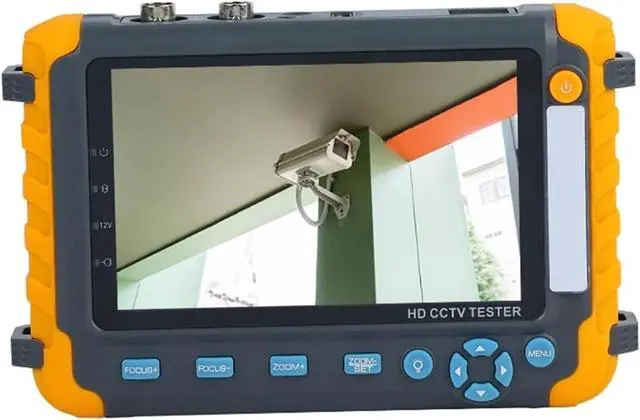

    CCTV Tester 8MP CCTV Camera Tester Monitor ADH CVI TVI CVBS 4 In1 Security Cameras HD Coaxial VGA Input Mini Support IP Camera

    Be the first to review this product...
    • 1. It is a nice CCTV tester monitor , portable and easy to carry, it can perfectly test AHD camera ,TVI camera and CVI camera up to 8MP, this monitor very suitable for upgrading the old CCTV analog signal system.
    • 2. The monitor of this multi-function CCTV tester also supports VGA input and input. You can use the monitor and DVR to work together conveniently and quickly.
    • 3.The mini CCTV monitor suitable for the CCTV system can ensure that you complete the work faster and better.
    • 4. Our cctv monitor does not support IP camera test, it only applies to AHD TVI CVI and analog cameras testing , supports up to 8MP.When you use a different camera, please press the MENU button to switch between different modes, so that the monitor can work better.
    • 5. Note: The battery is protected by a film, please remove the film to use this teste
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    About this item:
    The HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

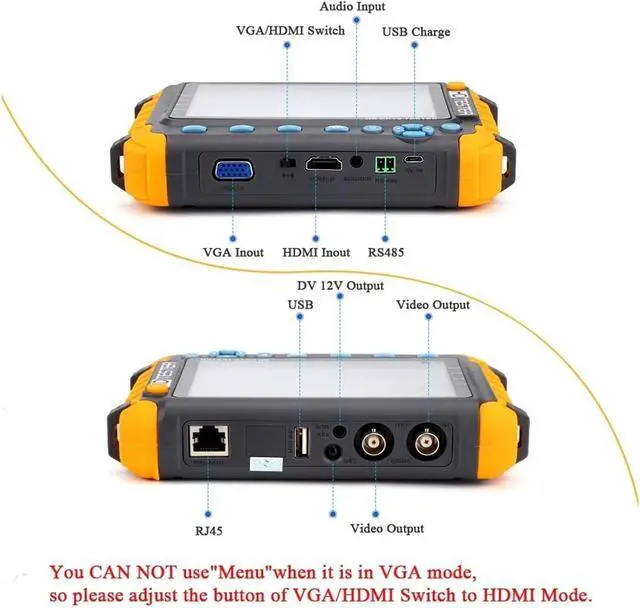

    VGA Input
    VGA Inputit support VGA 11 compliant digital input,once connect VGA/ video,please switch selector to select VGA/ Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

    PTZ controller
    Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, ,aperture size.

    DC12V 1A output power for camera
    The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

    LCD Screen
    Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

    PTZ controller
    Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, , aperture size.

    Image generator
    Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
