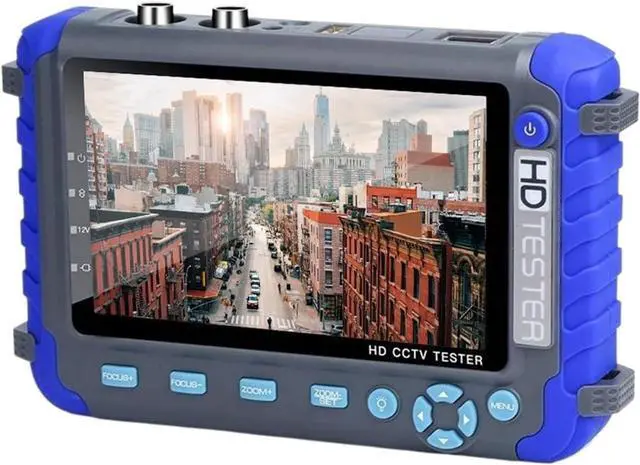

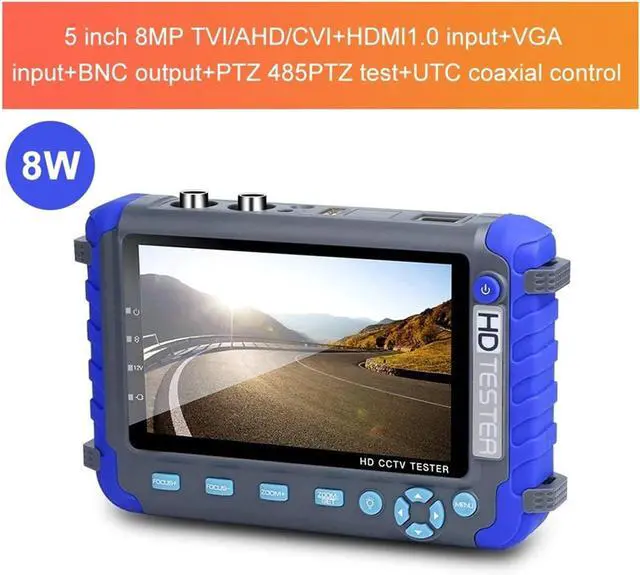

CCTV Tester 4K Camera Tester 5 Inch CCTV Monitor 8MP AHD/CVI/TVI CVBS Analog with VGA Input UTP CFTV Support IP Camera
- Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom,aperture size.
- The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.
- Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
- Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
- Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter comparison table
Key Feature comparison
Note:
This tester cannot be used under overload, and it prompts that the battery is insufficient.
Please charge it immediately.
It cannot be used during the charging process. Use it after fully charged.
Application
The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
VGA Input
VGA Inputit support VGA11 compliant digital input,once connect VGA video,please switch selector to select VGA/ Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
TVI input
1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP
AHD camera test
support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
Key Feature comparison
Note:
This tester cannot be used under overload, and it prompts that the battery is insufficient.
Please charge it immediately.
It cannot be used during the charging process. Use it after fully charged.
Application
The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
VGA Input
VGA Inputit support VGA11 compliant digital input,once connect VGA video,please switch selector to select VGA/ Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.
testing
Test the input from pickup devices. Connect the tester and pickup device with the cable.
Enhanced network cable testing
By UTP CABLE TEST port on the meter, you can test the connection of network cable.
TVI input
1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP
AHD camera test
support 1 channel AHD input (BNC interface), 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30,8MP When AHD signal input, the tester will display the AHD camera image.
CVI camera test
1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
