600lb Magnetic Door Lock Access Control Kit with 433MHZ Remote Control - 280KG Electromagnetic Lock with ZL Bracket for in-Swing Door, Easy Install Door Access System

Complete Access Control Kit: Includes 280KG magnetic lock with ZL bracket, power supply exit button, remote control set, etc.
600LB (280KG) Holding Force: Strong electromagnetic lock provides reliable door security.
Remote Unlock Convenience: Comes with 4 wireless remotes and 1 receiver, allowing you to unlock the door from up to 165FT away.
Indoor Exit Button Included: Stainless Steel surface-mount exit switch lets people inside open the door quickly and easily.
Easy Installation Setup: Pre-matched components and included accessories help simplify wiring and installation.
Stable Power Control Unit: Dedicated access control power supply ensures consistent lock operation and safe door release.
16.5FT Wiring Cable Included: Extra-long cable gives more flexibility for different door and wall layouts.
Expandable System Design: Can be upgraded by adding a keypad or RFID access controller if needed.
Wide Application: Ideal for apartments, offices, retail stores, garages, gates, and storage rooms.
Simple & Practical Security Solution: A cost-effective door access system for everyday entry control needs.

Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12V DC
Current: 12V/520mA
Holding: 280kg / 600Lbs
Fail safe: Unlocked while power is removed (NC Mode)
Size (L x W x H): 9.84x 1.93 x 0.98 (inch)
Armature Plate Dimension (L x W x H): 7.09 x 1.50 x 0.43 (inch)

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.
Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: 12V DC / 5A
Enclosure Material: Aluminum alloy
Enclosure Color: Black
Time Delay: 0-15s
Operating temp: -4-113
Dimensions: 3.54" x 3.54" x 1.38"
Weight: 0.3kg / 0.67lb

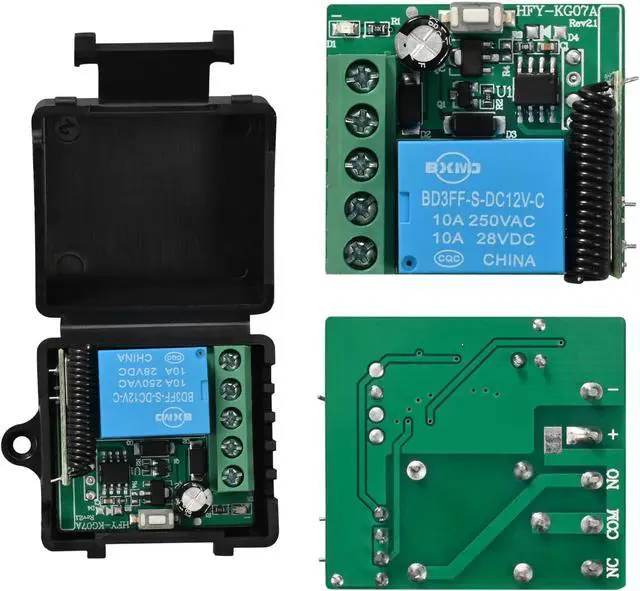

Operating Voltage: 12V DC
Operating Mode: Momentary/Toggle
RF Frequency: 433MHz
DC Encoding Type: Learning code
RF Channel: One
Transmitter Support: Max 30
Output Terminals: NO/NC/COM
Connectors: 5 screw Terminal
Case Construction: ABS Plastic

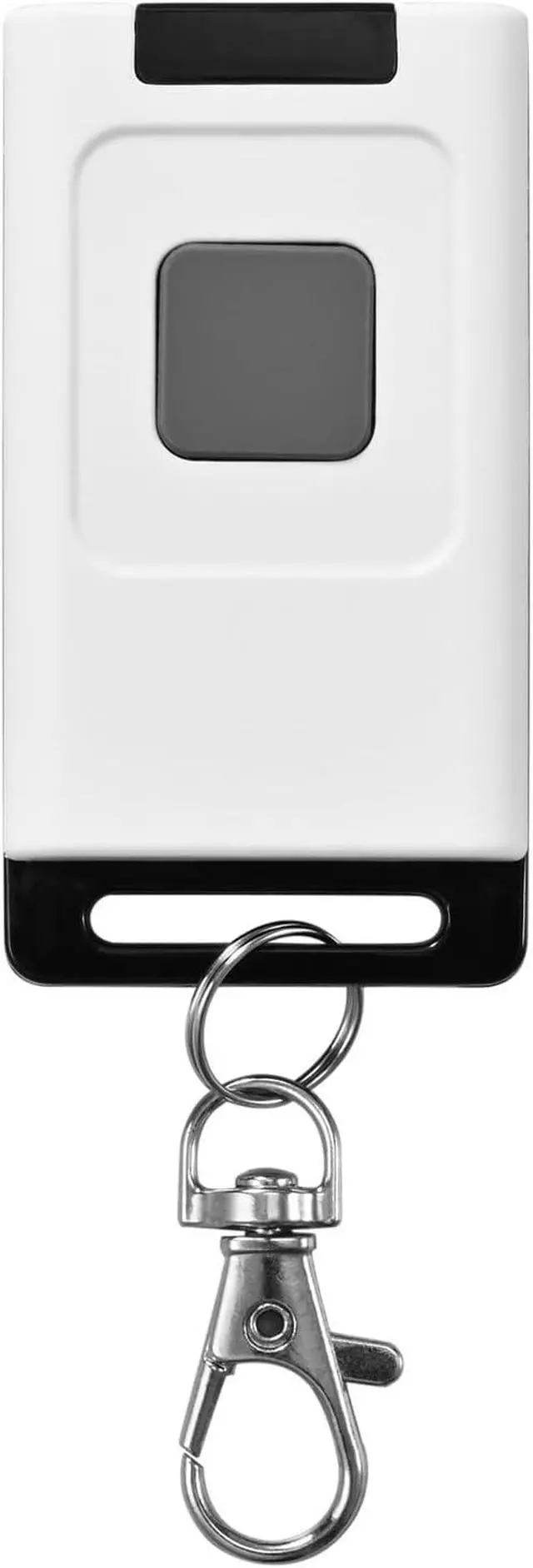

Power Source: 27A 12V Alkaline Battery
Number of Batteries: 1
Service Life of the Battery: 50000 cycles
Transmitting Frequency: 433MHz
Number of Buttons: 1
Work Distance: 50m/154ft (Open area)
Encoding Type: Fixed code
Enclosure Color: White
Enclosure Material: ABS Plastic

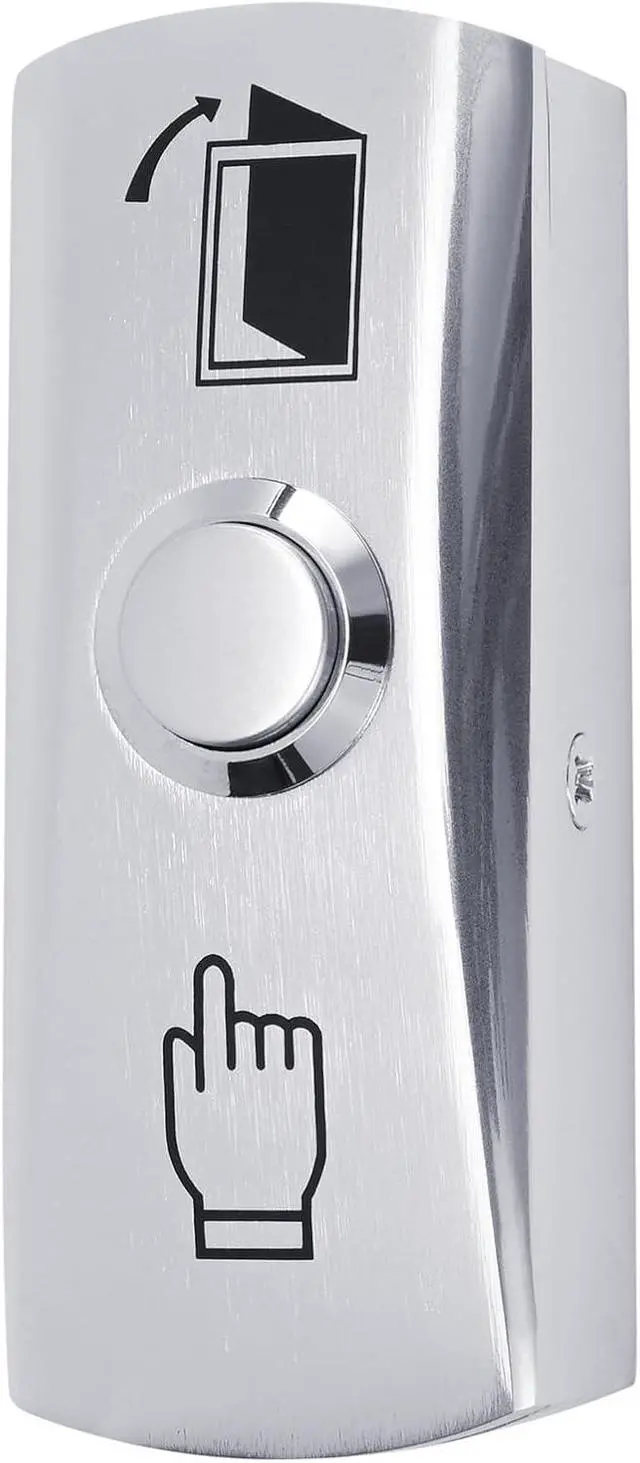

Material: Zinc alloy
Installation: Surface-mount
Mechanical Life: > 100,000 times
Output Contact: NO/COM
Operating Temperature: 14-131
Current Contact: 3A@36V DC Max
Weight: 130g (0.29lb)
Dimensions: 3.15 x 1.18 x 1.02inch

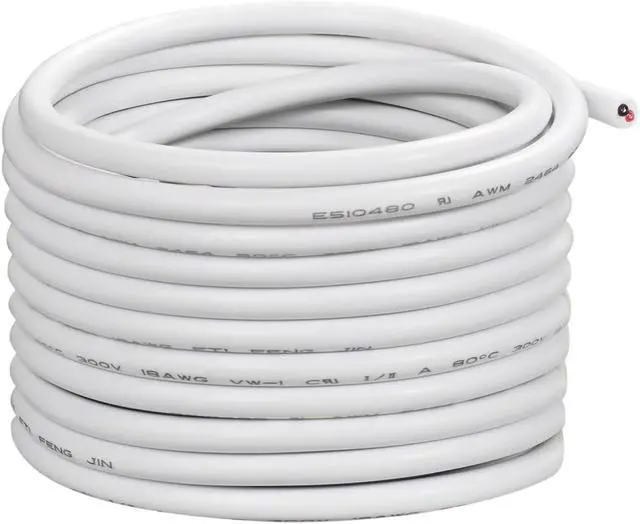

Conductor Material: Tinned Stranded Copper
Length: 16.5FT (5M)
Jacket Material: White PVC
No. of Cores: 2
Core Colors: Red/Black
Nominal Area: 0.34mm² / 18 AWG
Structure of Conductor: 41/0.16TS (No./mm)
Certificate: UL2464

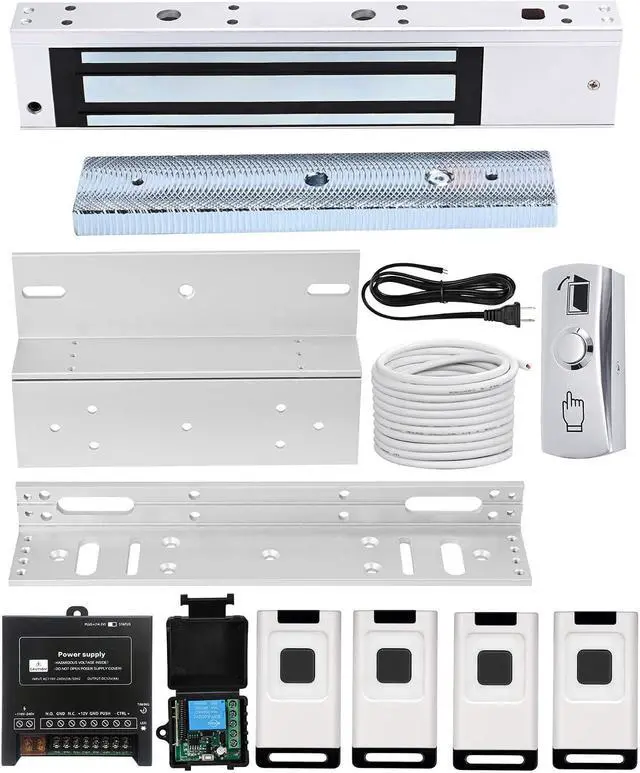

1 x 600LBS electric magnetic lock
1 x ZL Installation Bracket
1 x Power supply control
1 x Power Cord
1 x Push to exit button
4 x Remote Transmitter
1 x Remote Receiver
1 x 16.5FT Installation Cable
1 x English user manual
