600lbs Magnetic Lock Access Control System Kit with ZL Bracket, Infrared Exit Sensor Switch with Remote Receiver, 2 Remote Controls

All-in-One Kit: Complete access control solution with all essential components included.
600LB Magnetic Lock: Strong electromagnetic holding force helps keep doors securely locked.
ZL Bracket Included: Designed for convenient installation on inward-opening doors.
Remote Door Release: Unlock the door remotely for visitors and authorized users.
Supports 30 Remotes: Built-in receiver can store up to 30 transmitters.
Touchless Exit Sensor: Wave-to-open infrared technology for convenient operation.
Stainless Steel Construction: Durable materials designed for long-term use.
Easy to Install: Includes 16.5FT cable, power cord, and mounting accessories.
Expandable Access Control: Add a keypad, card reader, or access controller anytime if needed.

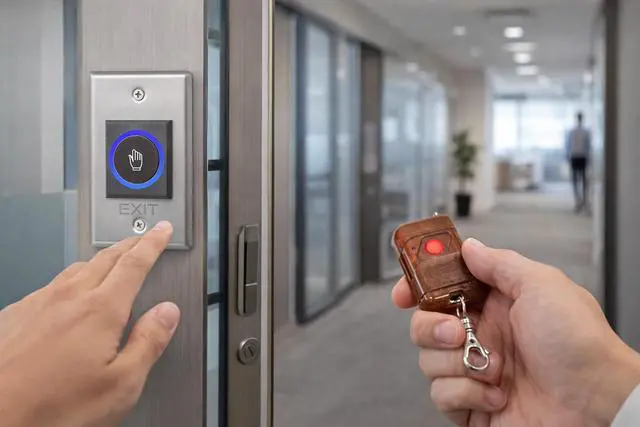

Dual Unlock Methods: Open the door by infrared sensor or wireless remote control.
Built-in 433MHz Receiver: No extra remote module required for easy system upgrade.
Includes 2 Remote Transmitters: Supports up to 30 remotes for multi-user access.
Adjustable Sensor Range: Detection distance adjustable from 5-20 cm.
Adjustable Door Release Time: Relay output time adjustable from 0.3 to 30 seconds.
Durable Stainless Steel Panel: Sleek, vandal-resistant metal faceplate.
12V DC Powered: Compatible with most access control power supplies.
Two-Color LED Indicators: Blue for standby, green for door activation.
Ideal for Access Control Systems: Perfect for offices, apartments, warehouses, and gated doors.

Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12V DC
Current: 12V/520mA
Holding: 280kg / 600Lbs
Build-in Alarm Beeper
Fail safe: Unlocked while power is removed (NC Mode)
Size (L x W x H): 9.84x 1.93 x 0.98 (inch)
Armature Plate Dimension (L x W x H): 7.09 x 1.50 x 0.43 (inch)

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.
Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.

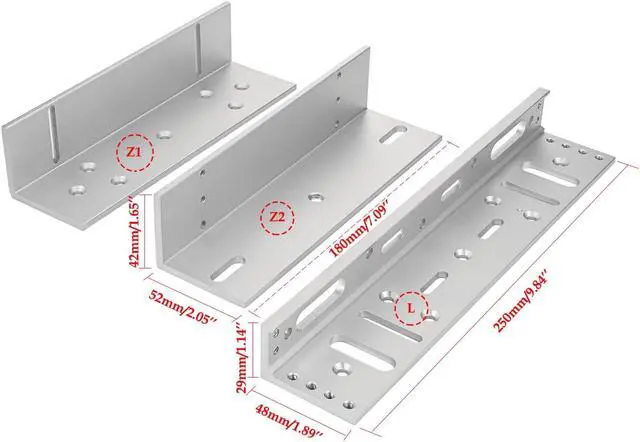

Use an L Bracket when the door frame thickness is less than 1.65 in (42 mm). Use a ZL Bracket when installing the lock on an inward-opening door.
Working Voltage: DC12V-24V
Dimensions: 4.53Lx2.76Dx1.06H (inch)
Weight: 0.23KG / 0.51lb
Remote Control Distance: 30m
Transmitter: Max 30pcs supported
Mechanical Life: 500000 tested
Output Contact: NO/NC/COM
Operating Temperature: -4-131
Panel Material: Stainless Steel
Power Source: 23A 12V Battery
Number of Batteries: 1
Service Life of the Battery: 50,000 cycles
Transmitting Frequency: 433MHz
Number of Buttons: 1
Emission Distance: 30m / 65ft (Open area)
Encoding Type: Fixed code
Enclosure Material: ABS Plastic
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: 12V DC / 5A
Enclosure Material: Aluminum alloy
Enclosure Color: Black
Time Delay: 0-15s
Operating temp: -4-113
Dimensions: 3.54" x 3.54" x 1.38"
Weight: 0.3kg / 0.67lb
Type: Two-Prong Plug Power Cord
Input: AC 100V-240V 50/60Hz
Wire Gauge: 2x0.824mm²
Cord Length: 5 feet (1.5 meters)
Wire Type: 18AWG
Net Weight: 0.16lb (70g)
Certificate: UL
Conductor Material: Tinned Stranded Copper
Length: 16.5FT (5M)
Jacket Material: White PVC
No. of Cores: 4
Core Colors: Red/Black/White/Yellow
Wire Gauge: 22 AWG
Structure of Conductor: 17/0.16TS (No./mm)
Certificate: UL2464

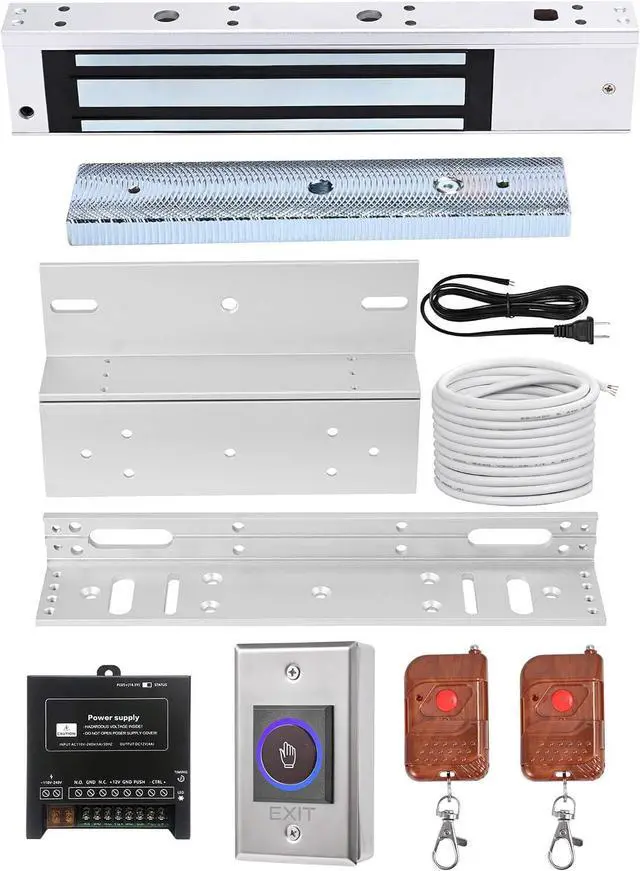

1 x 600LBS electric magnetic lock
1 x ZL Bracket
1 x Power supply control
1 x Power Cord
1 x Exit button

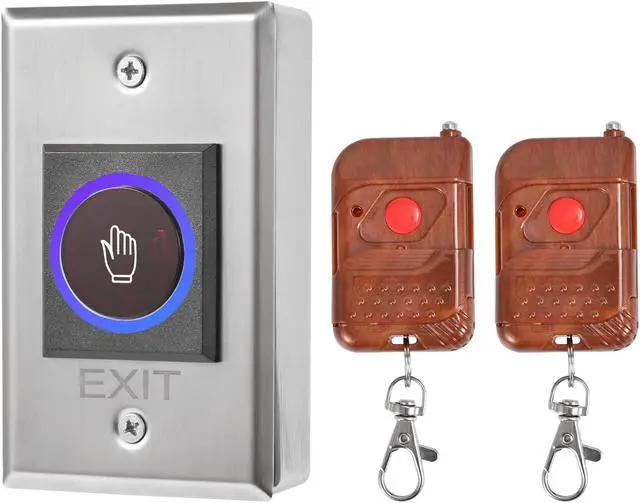

2 x Remote Transmitters
1 x 16.5FT Installation Cable
1 x English
