Microwave Motion Sensor 24.125Ghz Automatic Door Activation Switch

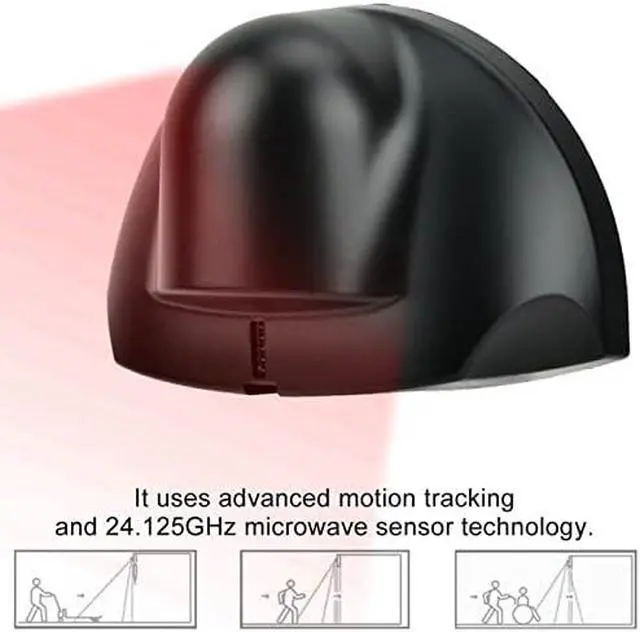

It uses advanced motion tracking and 24.125GHz microwave sensor technology.

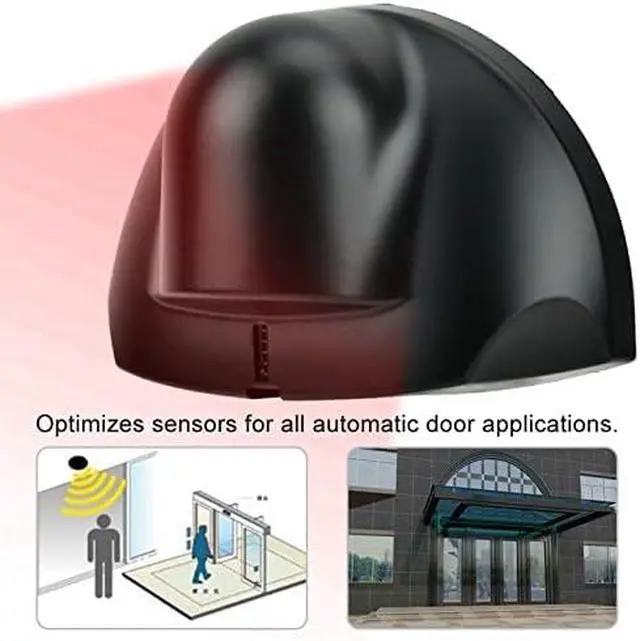

Optimizes sensors for all automatic door applications.
Adjust the sensor detection area by the four directions: left, right, up and down.

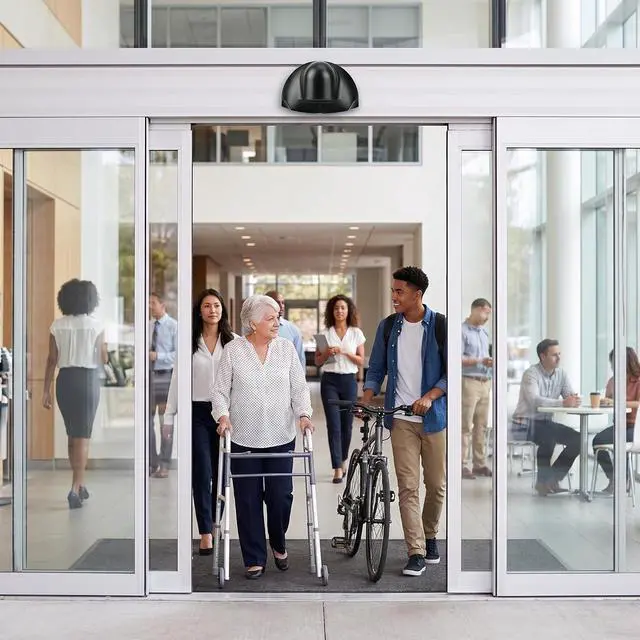

It is widely used in public places such as automatic doors, elevators, such as supermarkets, ATMs, airports, etc.
1 * Microwave Sensor
1 * Connection Cable
1 * Positioning Jam
2 * Screws
1 * Instruction Manual

1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.

Material: ABS plastic; Color: Black
Technology: Microwave and Microwave Processors
Frequency: 24.125Ghz
Transmit Power: 20dBm EIRP
Transmission Frequency Density: 5mW / cm2
Installation Height: up to 3 Meters / 9.8 feet
Installation Angle: 0~90 Degrees (Longitudinal), -30~ + 30 Degrees (Horizontal)
Detection Mode: Exercise
Minimum Detection Speed: 5cm / s
Packing Size: 15.8 * 11.5 * 6cm/6.2 * 4.5 * 2.4in

Power: 2W (VA); Power Supply Voltage: 12-24V AC / DC
Detection Range: 4 (Width) * 2 (Depth) m (Mounting Height: 2m)
Maximum Voltage: 42AC / 60V DC
Maximum Current: 1A
Maximum Switching Power: 30W (DC) / 60VA (AC)
Retention Time: 0.5S
Guide Line: 2.5 m / 8.2 ft
Working Temperature: -20 ° C ~ + 55 ° C
Level: IP54
Anti-jamming Performance: R&TTE1995 / 5 / EC, EMC 89/366 / EEC
Request to Exit Motion Sensor Automatic Door Sensor 12-24V 24.125Ghz Microwave MotionSensor for AutomaticDoor Supermarket OpeningDoor Access Control
