Door Access Control System Kit with 1200lbs Electromagnetic Lock, IP68 Waterproof Keypad Door Entry with WiFi App Remote Unlock, Doorbell Chime & 433MHz Remote Control

This is a comprehensive security solution designed to provide protection for your premises.

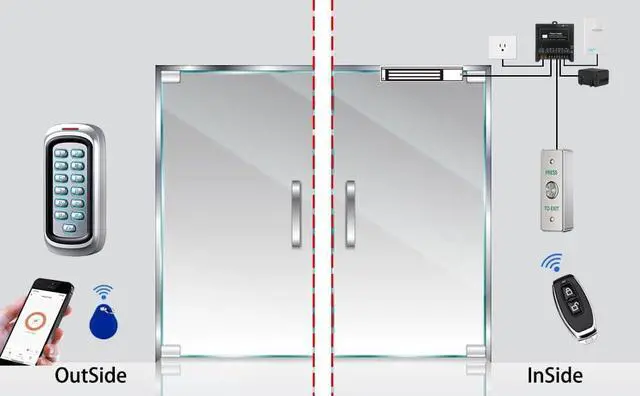

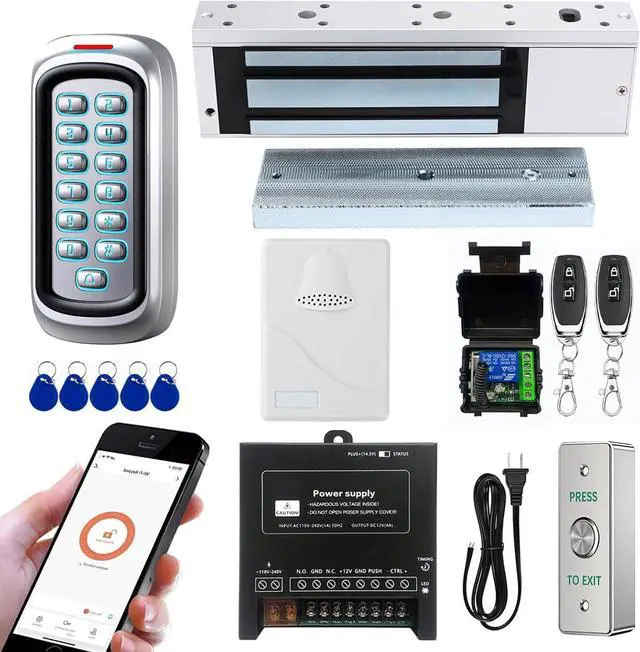

Complete Access Control System for a full setup.

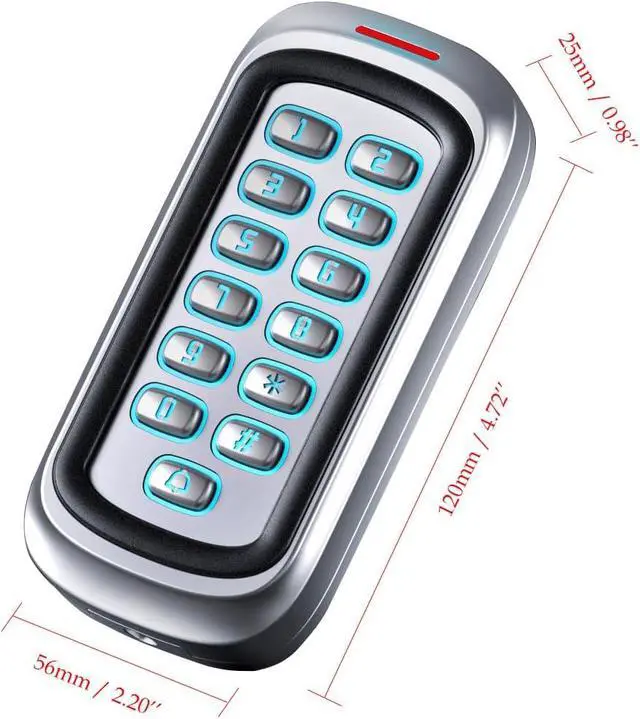

IP68 Waterproof Keypad: Stainless steel keypad with blue backlit crystal keys for indoor or outdoor use.
Smart Tuya App Control: Connects to 2.4G WiFi and works with the Tuya App for remote door unlocking.
Multiple Unlock Methods: Supports password, 125KHz ID cards, mobile app, remote control.
Users can easily exit the room using the exit button located inside.
User Management: Add or delete users, manage access permissions directly from Tuya app.
Access Records & Logs: View door opening history and activity records anytime through the Tuya App.
Doorbell Function: Integrated doorbell button allows visitors to ring, alerting people inside to unlock the door.
High-Strength Magnetic Lock: 1200lbs holding force electromagnetic lock provides strong, stable, and secure door locking.
Remote Control Included: Comes with 2-button remote controls for convenient door open and close operation.
Its user-friendly design makes it simple to operate, saving you time and hassle.
This system is highly effective in preventing unauthorized entry for residential or commercial use.

Operating Voltage: 12V DC
Capacity: 2000 users
Waterproof IP68 for both outside & inside use
Access Way: Pin, Card, Pin+ Card, Smartphone Tuya App
Card Type: ID Card 125KHz EM Card
Shell Material: Metal
Door Relay Time: 0-99 seconds (Adjustable)
Working Temperature: -49°F-140°F
Support 2.4 GHz Wi-Fi (not 5G Wi-Fi)
Shell Size: 56 x 120 x 25mm (2.20" x 4.72" x 0.98")

Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Input Voltage: 12V DC
Current: 12V/480mA
Holding: 500kg / 1200Lbs
Fail safe: Unlocked while power is removed (NC Mode)
Size (L x W x H): 265 x 75 x 39 (mm) / 10.43x 2.95 x 1.54 (inch)
Armature Plate Dimension (L x W x H): 185 x 60 x 13(mm) / 7.28 x 2.36 x 0.51 (inch)

Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.
Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.
Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.
If your need to install this lock on a inswinging door, you can buy our Z and L bracket ASIN B0BKQHYMTM.
Input Voltage: AC110-240V
Input Frequency: 50-60Hz
Output Voltage: 12V DC / 4A
Enclosure Material: Aluminum alloy
Enclosure Color: Black
Time Delay: 0-15s
Operating temp: -4-113
Dimensions (LxWxH): 3.54" x3.54" x 1.38"
Operating Voltage: 12V DC
Receiving Range: 328ft (Open space)
Operating Mode: Momentary/Toggle/ Latched/Delay mode
RF Frequency: 433MHz
DC Encoding Type: Learning code
Transmitter Support: Max 35
Output Terminals: NO/NC/COM
Power Source: CR2016 Battery Operated
Number of Batteries: 2
Service Life of the Battery: 50000 cycles
Transmitting Frequency: 433MHz
Number of Buttons: 2
Emission Distance: 100m/328ft (Open area)
Enclosure Color: Black
Enclosure Material: ABS Plastic
Dimensions: 3.66Lx1.18Dx1.02H (inch)
Weight: 0.15KG / 0.33lb
Current Rating: 3A@36VDC Max
Mechanical Life: 500,000 tested
Output Contact: NO/COM
Operating Temperature: 14-131
Panel Material: Stainless steel Panel
With Mounted Back Box
Features a bell sound, wall-mount hole
No battery needed
Volume of doorbell: 90db
Working Voltage: DC12V
Dimension: 2.44(W) x 3.43(H) x 0.87(D) inch
Wire Connection Mode: Red: + 12 V; Black: GND; Green: BELL1; Yellow: BELL2
Operating Temperature: -10-45
Material: ABS fire retardant material
1 x Access contr
